Rotel CD11MKII CD Player



Pin It
  • The CD11MKII CD Player furthers Rotel’s 30+ year legacy of delivering high performance, high value CD players. The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs. The CD 11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless, worry-free playback of your CD collection.

    The CD11MKII CD Player furthers Rotel’s 30+ year legacy of delivering high performance, high value CD players.

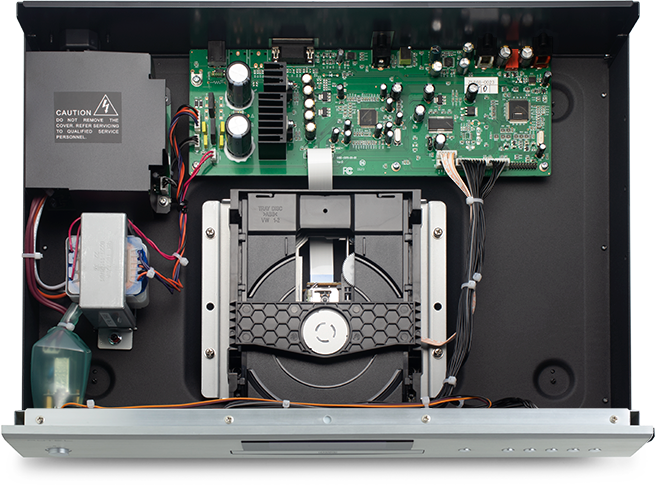

    The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs. The CD11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless, worry-free playback of your CD collection.

    Digital to Analog conversion is handled by a premium Texas Instruments PCM5102A 32-bit/384kHz DAC feeding custom-tuned digital low pass filter circuits. This sound-first design renders music on a large, open sound stage with both power and finesse.

    Intuitive CD control functions on the front panel and included remote control ensure simple operation. The front panel graphic display shows playback status and disc meta data information including the title and artist.

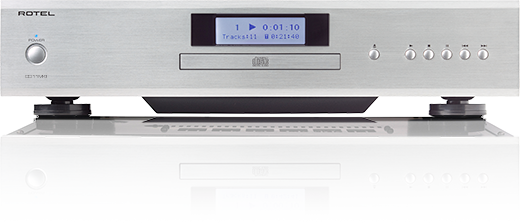

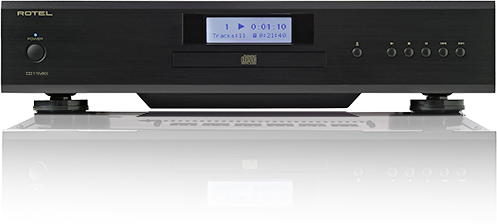

    The CD11MKII is available in both black and silver colors.

  • FEATURES:

    Texas Instruments premium 32-bit/384kHz Digital to Analog Converter

    Smooth tray loading CD mechanism

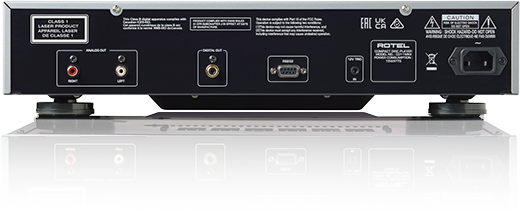

    Outputs including RCA analogue and Coaxial digital

    12 volt trigger input

    Includes remote control

  • SPECIFICATIONS:
    DIMENSIONS (W × H × D)
    430 × 98 × 314mm
    17" × 3.8" × 12.4"

    FRONT PANEL HEIGHT
    80mm (3.15")

    POWER REQUIREMENTS
    120V, 60Hz

    POWER CONSUMPTION
    15W

    STANDBY POWER CONSUMPTION
    <0.5W

    NET WEIGHT
    6.2kg (13.7lbs.)

    BTU RATING
    40 BTU/h

    TOTAL HARMONIC DISTORTION + NOISE
    0.009% @ 1kHz

    FREQUENCY RESPONSE
    20Hz - 20kHz ±0.5dB

    S/N RATIO (IHF "A" Weighted)
    >125dB

    DYNAMIC RANGE
    >99dB

    DIGITAL TO ANALOG CONVERTERS
    Texas Instruments

    CHANNEL BALANCE
    ±0.5dB

    CHANNEL SEPARATION
    >115dB @ 10kHz
