Rotel A11 Tribute Stereo Integrated Amplifier



Pin It
  • The A11 Tribute is a Class AB 50W Integrated Amplifier developed in cooperation with the audio engineering legend Ken Ishiwata as a Tribute to his legacy. Upgraded components and meticulous tuning of all critical circuits deliver a richer, expressive, and true-to-life experience from the Bluetooth, RCA and Moving Magnet Phono Stage inputs.

    The A11 Tribute is a Class AB 50W (8 ohms) Integrated Amplifier developed in cooperation with the audio engineering legend Ken Ishiwata as a Tribute to his legacy spanning over 40 years in the industry.

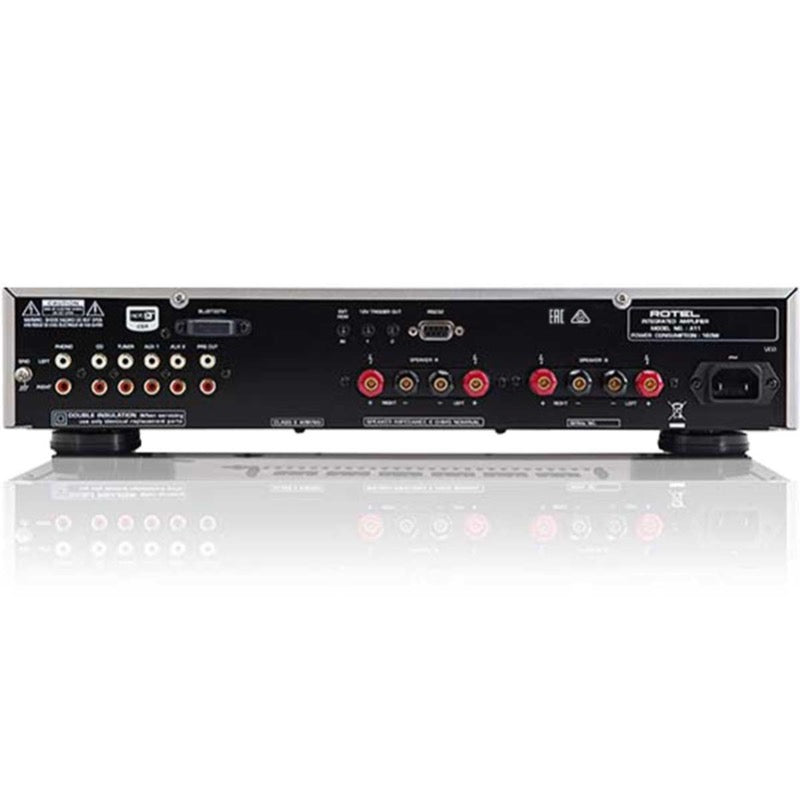

    The collaboration between Ken and Rotel’s own engineering design teams delivered on the promise of an even higher level of performance of the extremely successful and popular award-winning A11. Upgraded components and meticulous tuning of all critical circuits deliver a richer, more expressive, and true-to-life experience from all of the support source inputs including apt-X and AAC wireless Bluetooth, array of 4 RCA analog inputs and a Moving Magnet Phono Stage for vinyl fans.

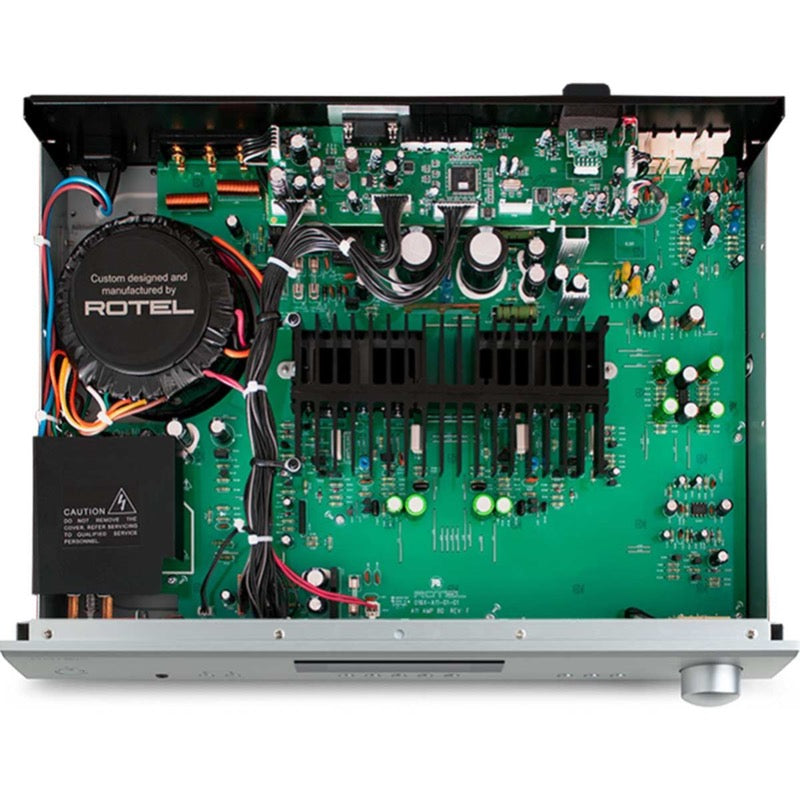

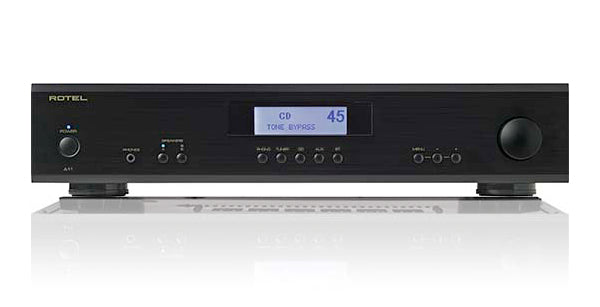

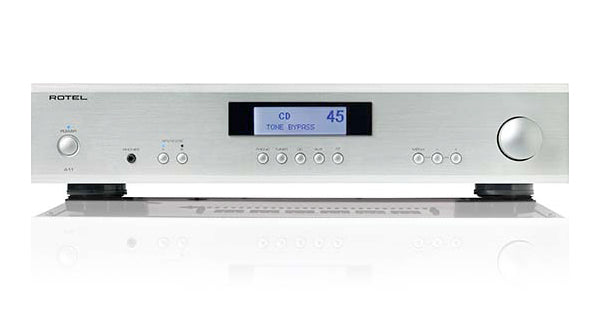

    The front panel graphic display and IR remote ensure effortless control of the audio driven by a Rotel in-house manufactured oversized toroidal transformer. The resulting acoustic performance speaks for itself under all loading conditions with even the most difficult speaker loads.

  • SPECIFICATIONS:

    DIMENSIONS (W × H × D): 430 × 93 × 345mm 17" × 3.6" × 13.5"

    FRONT PANEL HEIGHT: 80mm (3.15")

    POWER REQUIREMENTS: 120V, 60Hz

    POWER CONSUMPTION: 160W

    STANDBY POWER CONSUMPTION: <0.5W

    NET WEIGHT: 6.85kg (15lbs.)

    BTU RATING (4Ω, 1/8th power): 479 BTU/h

    CONTINUOUS POWER OUTPUT: 50W/Ch (All channels driven, 8Ω)

    TOTAL HARMONIC DISTORTION (THD): (20Hz–20kHz) <0.03%

    FREQUENCY RESPONSE: Line Level Inputs: 10Hz - 100kHz ±0.5dB Phono Input: 20Hz - 20kHz ±0.5dB

    S/N RATIO (IHF "A" Weighted): Line Level Inputs: 100dB Phono Input: 85dB

    INTERMODULATION DISTORTION (60Hz:7kHz, 4:1): <0.03%

    DAMPING FACTOR: 140

    SPEAKER IMPEDANCE: 4Ω minimum

    INPUT SENSITIVITY: Line Level Inputs: 180mV Phono Input (MM): 2.3mV I

    INPUT IMPEDANCE: Line Level Inputs: 47kΩ Phono Input (MM): 47kΩ

    INPUT OVERLOAD: Line Level Inputs: 4V Phono Input: 50mV

    PREOUT LEVEL: 1V

    OUTPUT IMPEDANCE: 470Ω

    TONE CONTROLS: ±10dB at 100Hz / 10kHz

    WEIGHT: 15 lbs
