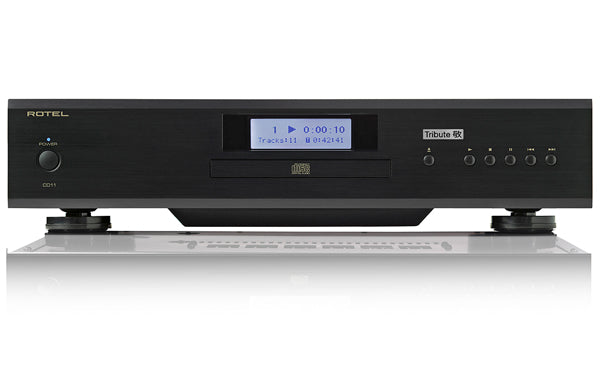

Rotel CD11 Tribute CD Player



Pin It
  • Rotel's CD11 Tribute CD player was engineered with hands-on support from audio legend Ken Ishiwata utilizing a custom selection of acoustically tuned components delivering an even higher level of performance and acoustic clarity standing ready to playback the 200+ million CD’s that have been sold over the past 30 years.

    Rotel has been designing and manufacturing CD players since the RCD-855 was launched in 1989 and has never looked back since.

    Thus, the opportunity of engaging with audio legend Ken Ishiwata to create an even higher performance model of the successful CD11 was eagerly accepted by the Rotel design teams. With over 40 years of audio engineering experience Ken’s collaboration with Rotel created something truly special – the CD11 Tribute edition.

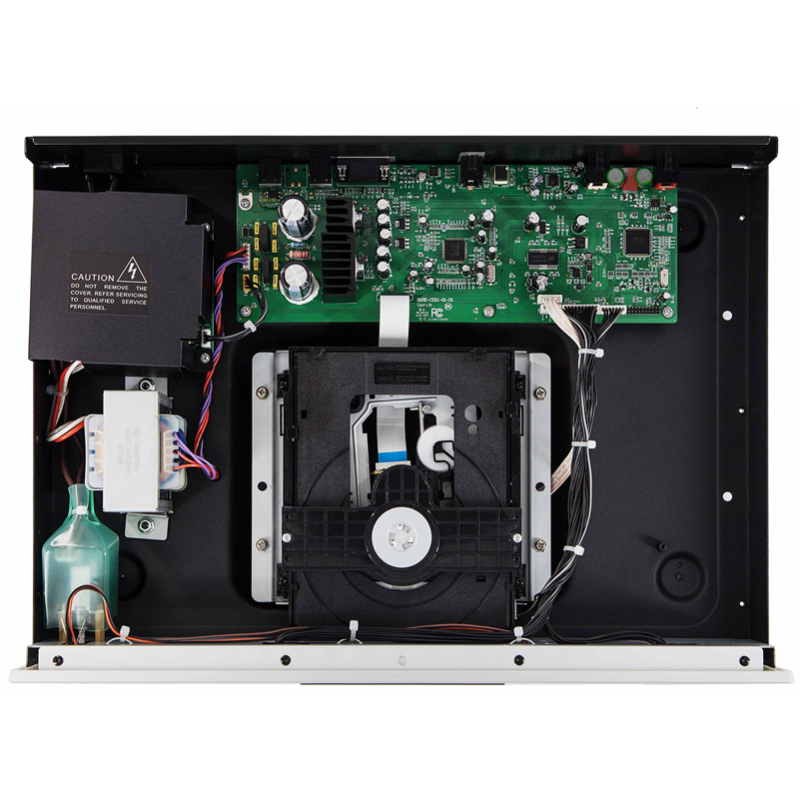

    The CD11 Tribute includes critical changes to the power supply, DAC circuits and precise selection of components in the audio signal path delivering an increased sense of space, improved accuracy, detail, and genuineness of the audio.

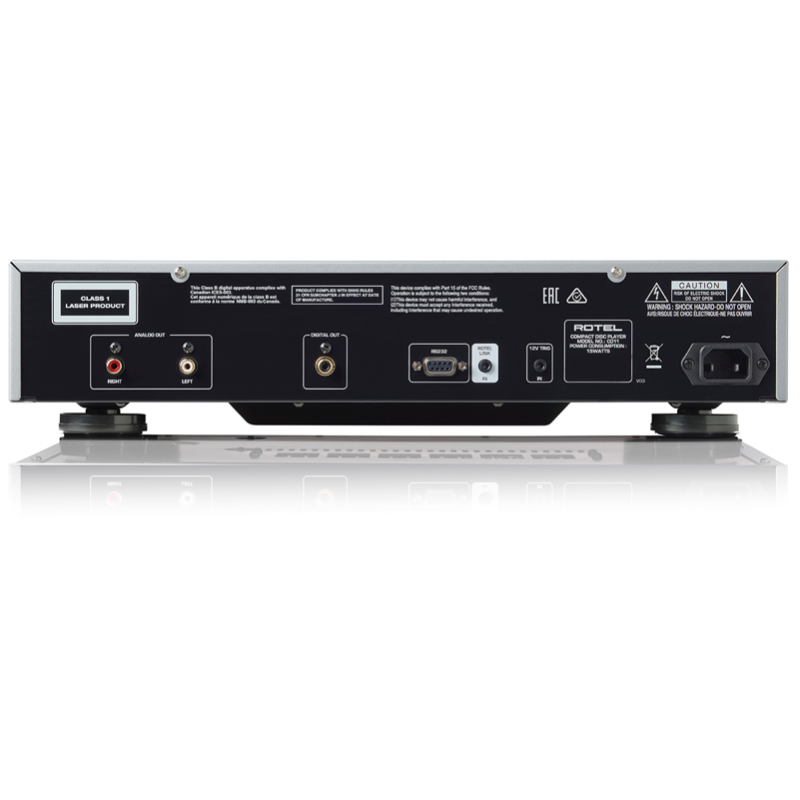

    Supporting RCA analog and coaxial digital outputs, front panel display and a remote control, the CD11 Tribute continues the proud tradition of Rotel and is reflective of the legacy of Ken and his tireless efforts delivering audio products performing well beyond their price point.

  • Specifications:

    DIMENSIONS (W × H × D): 430 × 98 × 314mm 17" × 3.8" × 12.4"

    FRONT PANEL HEIGHT: 80mm (3.15")

    POWER REQUIREMENTS: 120V, 60Hz

    POWER CONSUMPTION: 15W

    STANDBY POWER CONSUMPTION: <0.5W

    NET WEIGHT: 5.8kg (12,7lbs.)

    BTU RATING: 40 BTU/h

    TOTAL HARMONIC DISTORTION (THD): 0.009% @ 1kHz

    FREQUENCY RESPONSE: 20Hz - 20kHz ±0.5dB

    S/N RATIO (IHF "A" Weighted): >125dB

    DYNAMIC RANGE: >99dB

    DIGITAL TO ANALOG CONVERTERS: Texas Instruments

    CHANNEL BALANCE: ±0.5dB

    CHANNEL SEPARATION: >115dB @ 10kHz

    OUTPUT LEVEL: Digital (Coax): 0.5V

    OUTPUT IMPEDANCE: Line Level: 470Ω Digital (Coax): 75Ω

    WEIGHT: 12.7lbs
