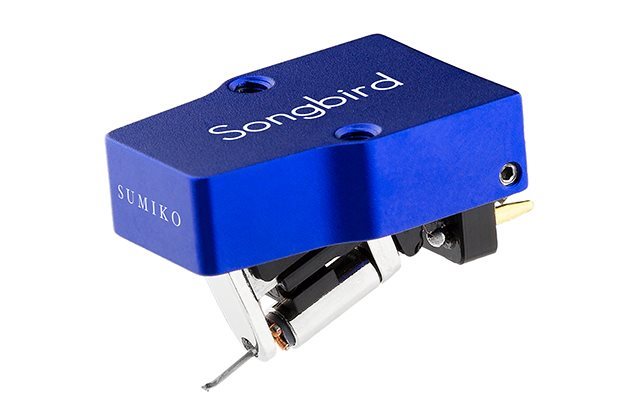

Sumiko Songbird MC Phono Cartridge



Pin It
  • The Songbird comes in at a much needed price point perfect for launching the part-time audiophile into some serious listening. As its name suggests, this open-architecture moving coil cartridge excels at providing colorful and rich vocals, and highlights the powerful low and mid-end of funk and rock. The long 7-micron stylus face will handle different cutting angles well, and this cartridge is also great at providing some excitement to otherwise anemic classical system setups.
  • SPECIFICATIONS:

    Cartridge Type:
    Moving Coil

    Stylus:
    0.3 x 0.7 micron Elliptical

    Cantilever Material:
    coated aluminum pipe

    Wire Material:
    pure copper

    Internal Impedance:
    135 Ohms

    Load Impedance:
    47kΩ

    Frequency Response:
    12Hz - 40kHz

    Output Voltage:
    2.5mV

    Channel Separation:
    30dB @ 1kHz

    Channel Balance:
    <0.5dB @ 1kHz

    Compliance:
    12x10-6 cm/dyn @ 100Hz

    Recommended load capacitance:
    100pF - 200pF

    Vertical tracking angle:
    20°

    Tracking Force:
    1.8g - 2.2g

    Recommended Force:
    2.0g

    Cartridge Weight:
    8.5g
