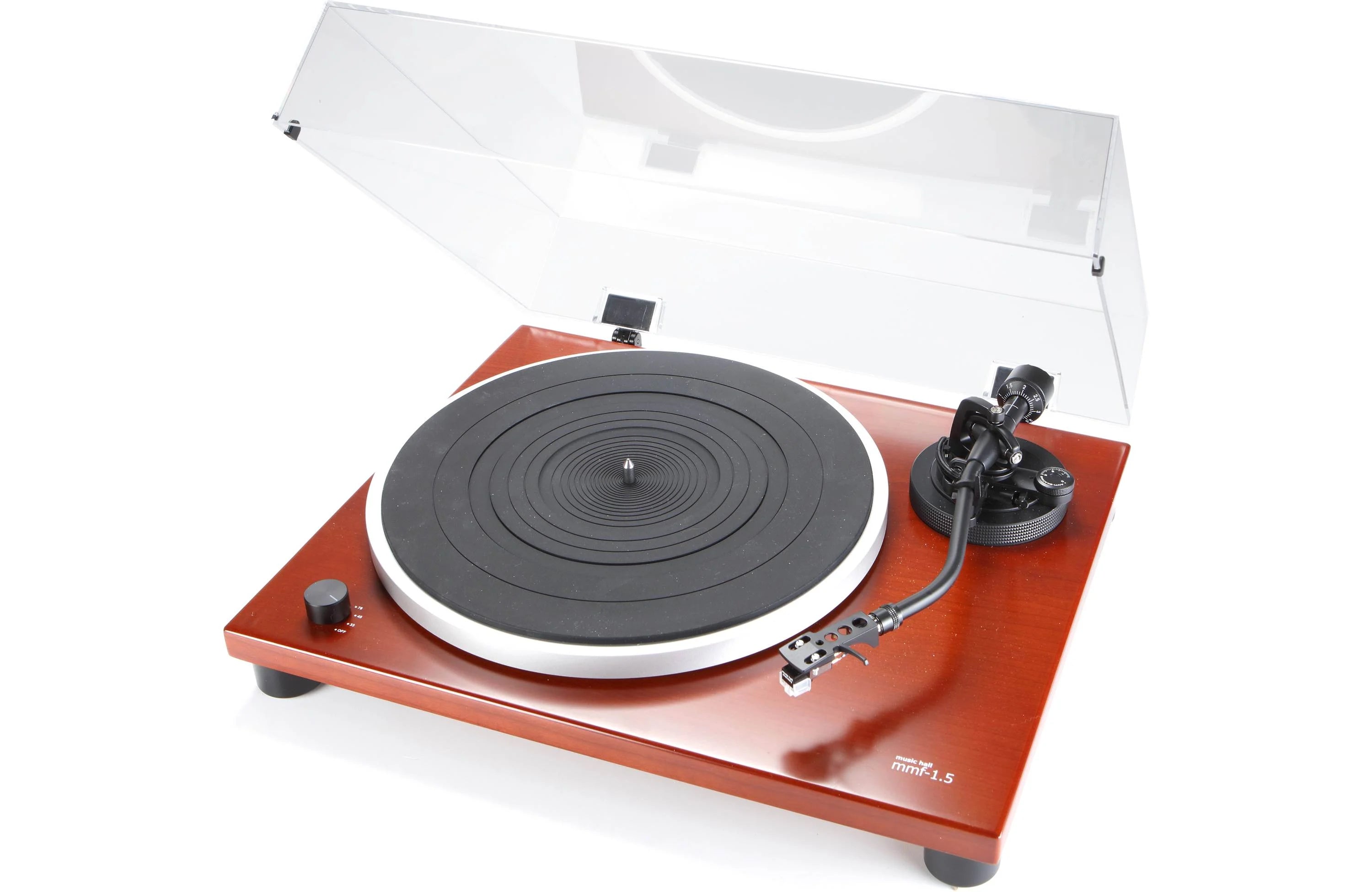

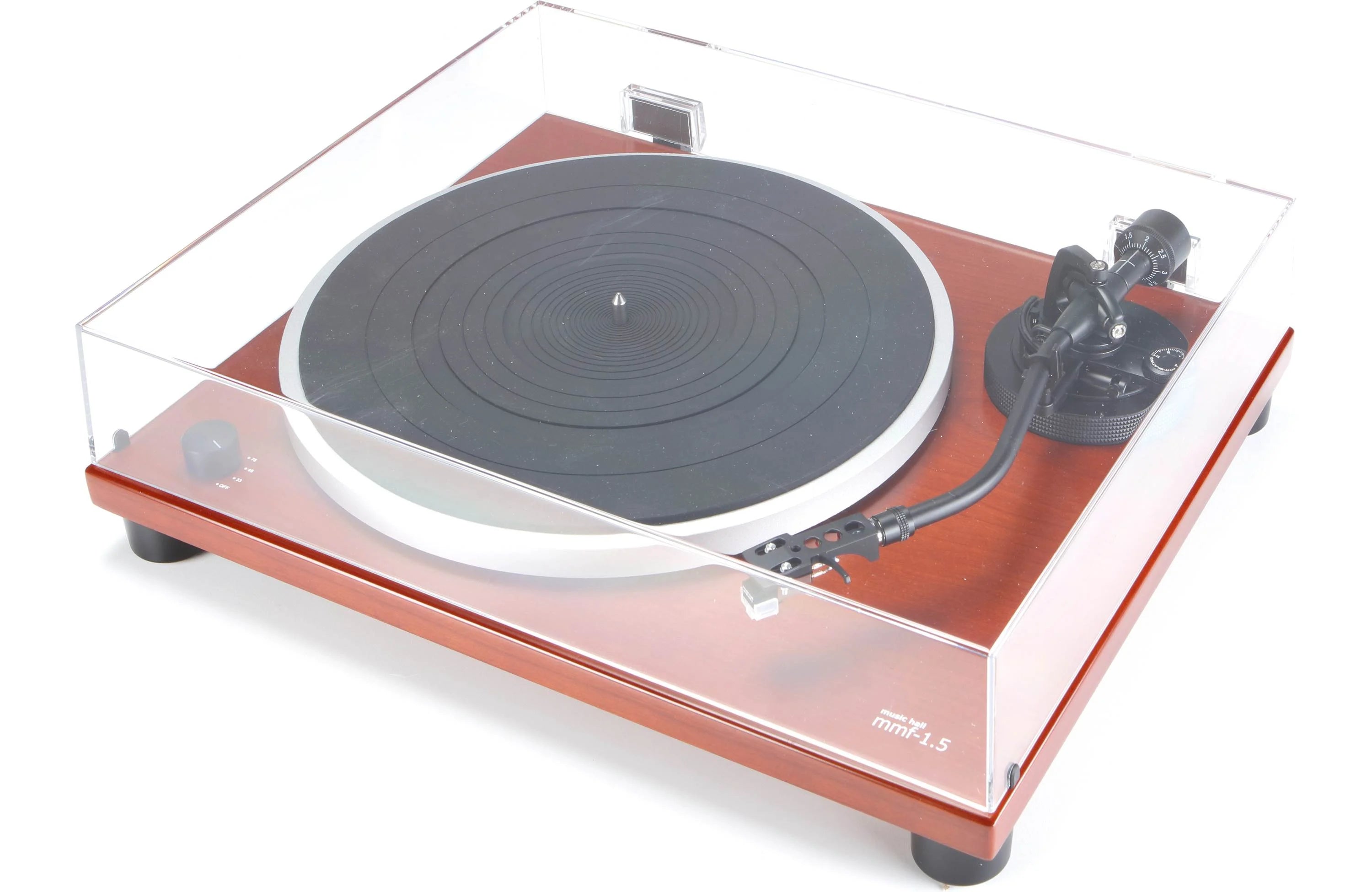

- The Music Hall MMF-1.5 turntable is a beautifully refined piece that sets your world to groove and your feet to dance. Its superior S-shaped alloy tonearm, top-quality Music Hall Melody cartridge, and 3-speed belt drive design deliver exceptional sound quality, while the built-in phono preamp allows you to connect directly to your current system. The included hinged dust cover keeps your MMF-1.5 protected when not in use. With a built-in speed control circuit, the MMF-1.5 ensures the accuracy of its 3 speeds, providing you with an immersive listening experience from start to finish.
-
Features:
- Die-cast aluminum platter with vibration-damping rubber platter mat
- Switchable built-in phono preamp

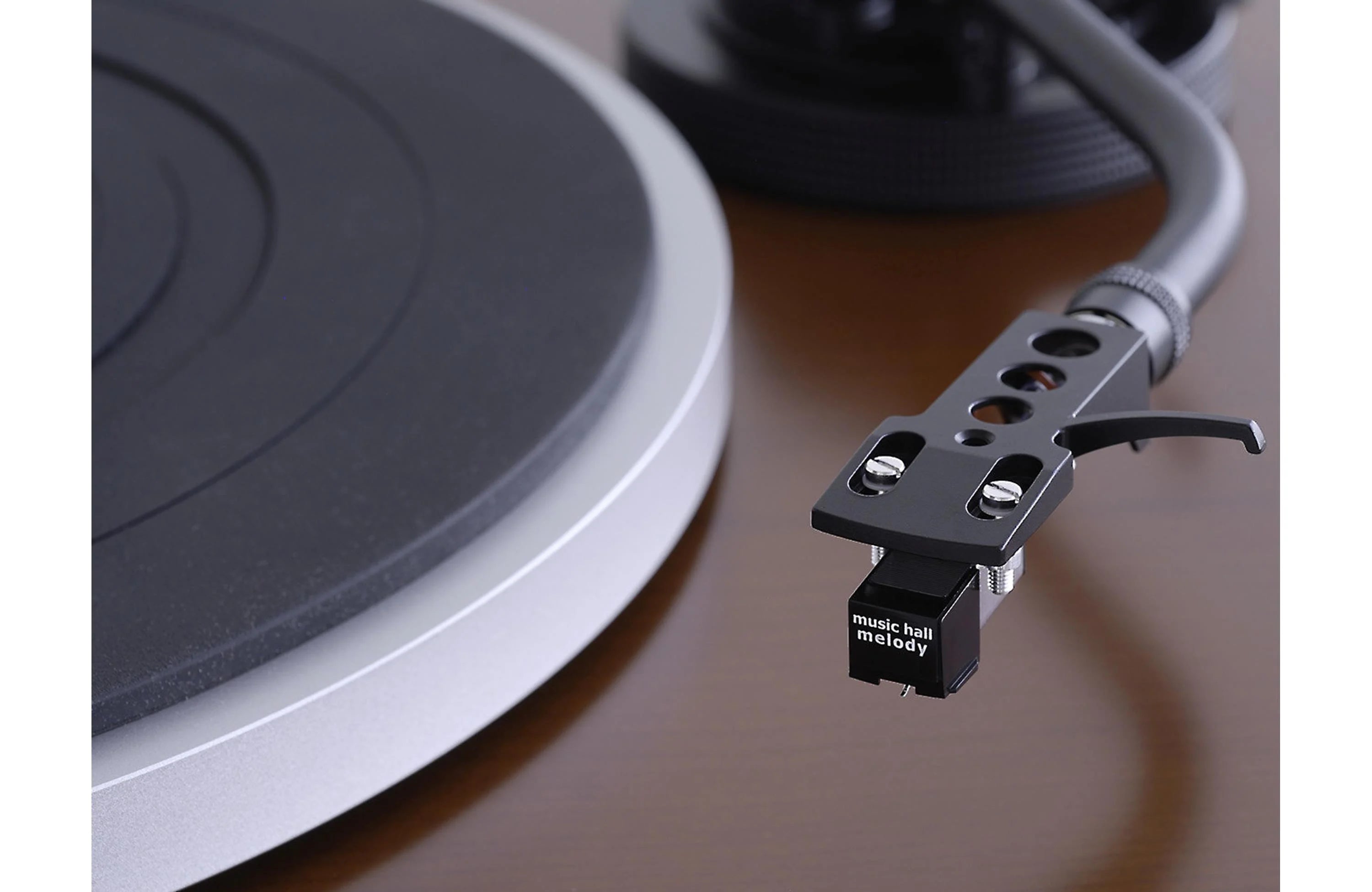

- 9" curved aluminum tonearm with pre-mounted Music Hall Melody moving magnet cartridge
- Fully manual operation
- Die-cast aluminum platter with vibration-damping rubber platter mat
- Switchable built-in phono preamp
-
- when switch is set to LINE, turntable must be connected to a standard line input (labeled AUX, CD, or TAPE)
- when switch is set to PHONO, turntable must be connected to an outboard phono preamp or dedicated phono input
- 9" curved aluminum tonearm with pre-mounted Music Hall Melody moving magnet cartridge
- Real cherry wood veneer
- Medium density fiberboard (MDF) base with vibration-damping feet

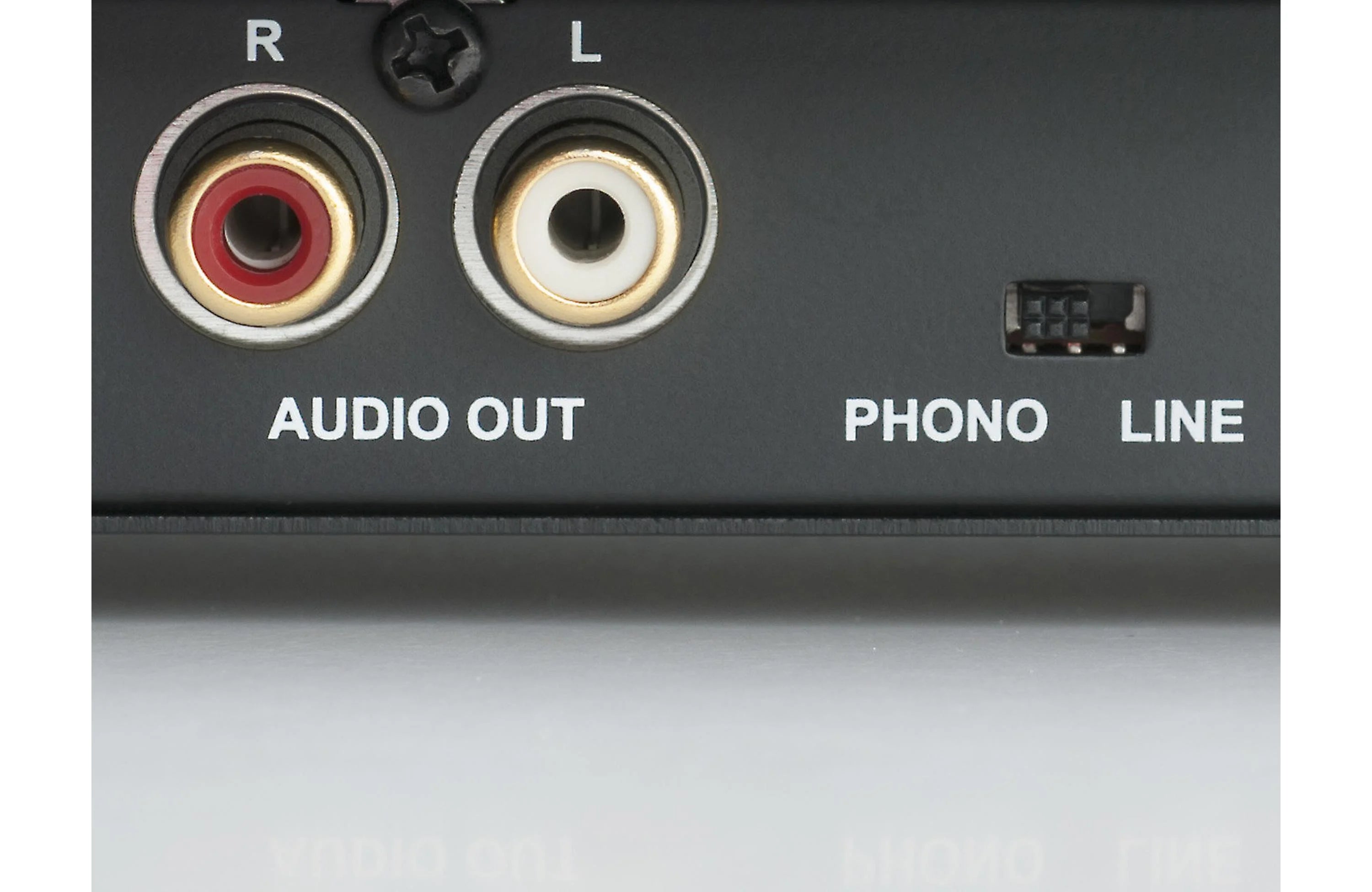

- Gold RCA audio jacks with detachable cables

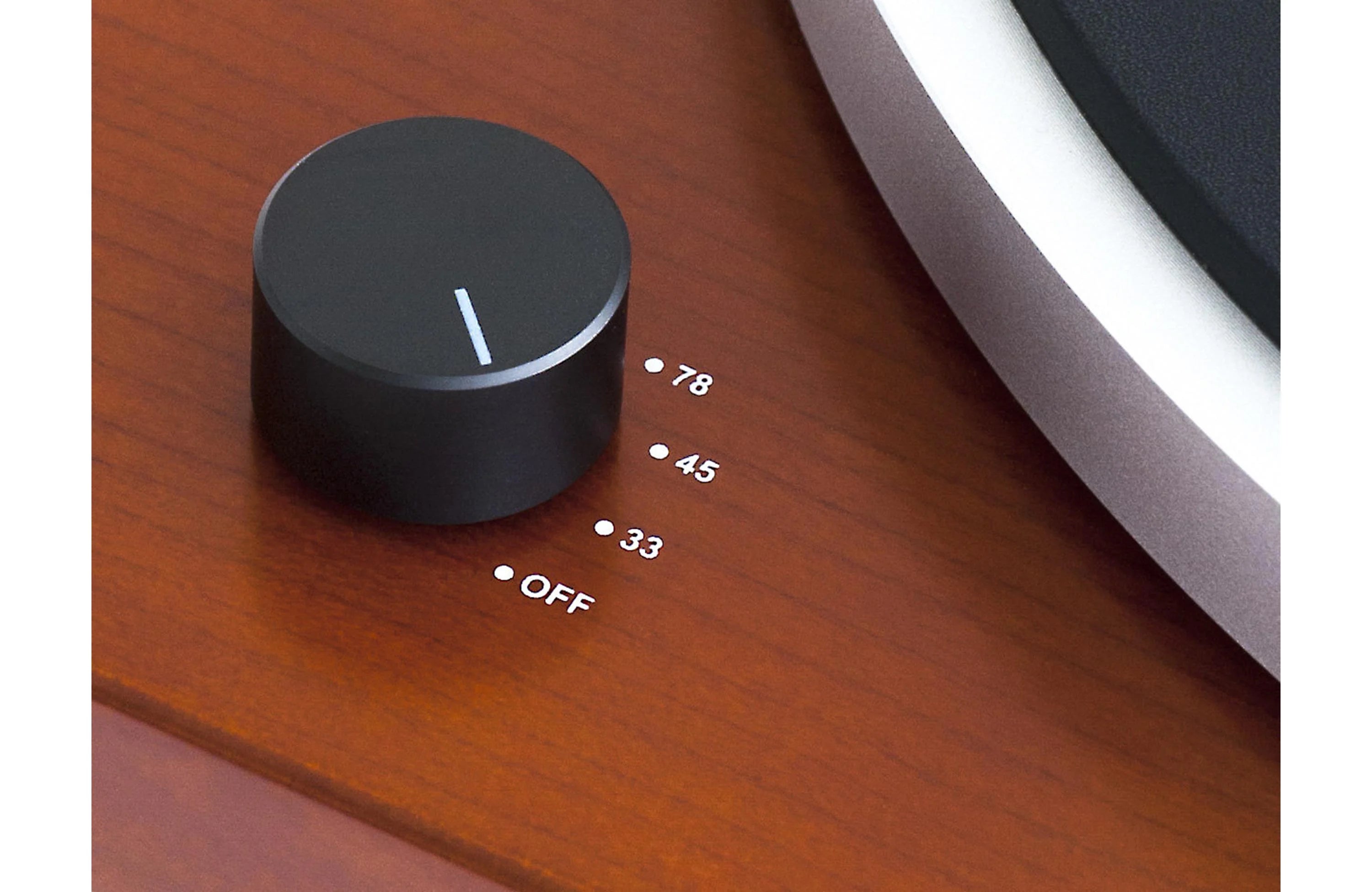

- 33-1/3, 45 and 78 rpm speeds
- 78 rpm playback of some older pressings requires a special stylus(not included)
-
Specifications:
- Turntable
- Type: 3-speed full manual
- Motor: DC motor
- Driving Method: Belt drive
- Platter: 305mm dia. aluminum die-cast
- Speeds: 33 1/3, 45, and 78rpm
- Wow & Flutter: less than 0.1% WTD at 3KHz RMS(CD-4005)
- Limit: Less than 0.15% WTD at 3KHz RMS(CD-4005)
- S/N Ratio: More than 65dB (DIN-B) (SS-4242)
- Limit: More than 62dB (DIN-B) (SS-4242
- Speed Tolerance: 3000Hz +/-1%(CD-4005)
- Power Supply: DC12V，2.0A Universal Power Supply
- Consumption: 4W
- Dimensions (WxDxH): 17.1" x 14.5" x 5" (435x367x127mm)
- Weight: 12lbs. (5.4Kg)
Cartridge
- Included Cartridge: Music Hall Melody
- Output Voltage: 2.5mV +/- 3dB at 1KHz 3.54cm/sec
- Channel Separation: measurement point 1KHz over 18dB
- Channel Balance: 25 dB or less at 1KHz
- Frequency Response: measurement point 10KHz / 1KHz 0 +/- 3dB
- Tracking Force: 2.0 +/- 0.5 grams
- Cartridge Type: Moving Magnet
- Stylus: Diamond
- Channel Separation: More than 15 dB at 1KHz (CD-4005)
- Channel Balance: Within 2.5 dB at 1KHz (CD-4005)
- Phono Output Level: 1.5~3.6 mV at 1KHz 5cm/sec (CD-4005)
- Line Output: 90-216 mV at 1KHz 5cm/sec (CD-4005)
- RIAA: 20Hz~20KHz: +1/-3 dB
Tonearm
- Type: static balanced S-shaped
- Effective Arm Length: 230mm
- Overhang: 15mm
- Offset Angle: 22 degrees
- Tracking Error Angle: 3 degrees or less
- Rotation Movability: (1-rotation 4g)
- Applicable Cartridge Weight: 5~8.5g (including headshell 15~18.5g)
- Anti-Skating Adjustment Range: 0~3g
- Arm Lifter: Oil damper type
- Height Of Stylus: 8~10.5mm
- Lifter Descent Time: 1.5~3 sec (stylus pressure: 2g)
- Horizontal Sensitivity: less than 0.2g
- Vertical Sensitivity: less than 0.2g
