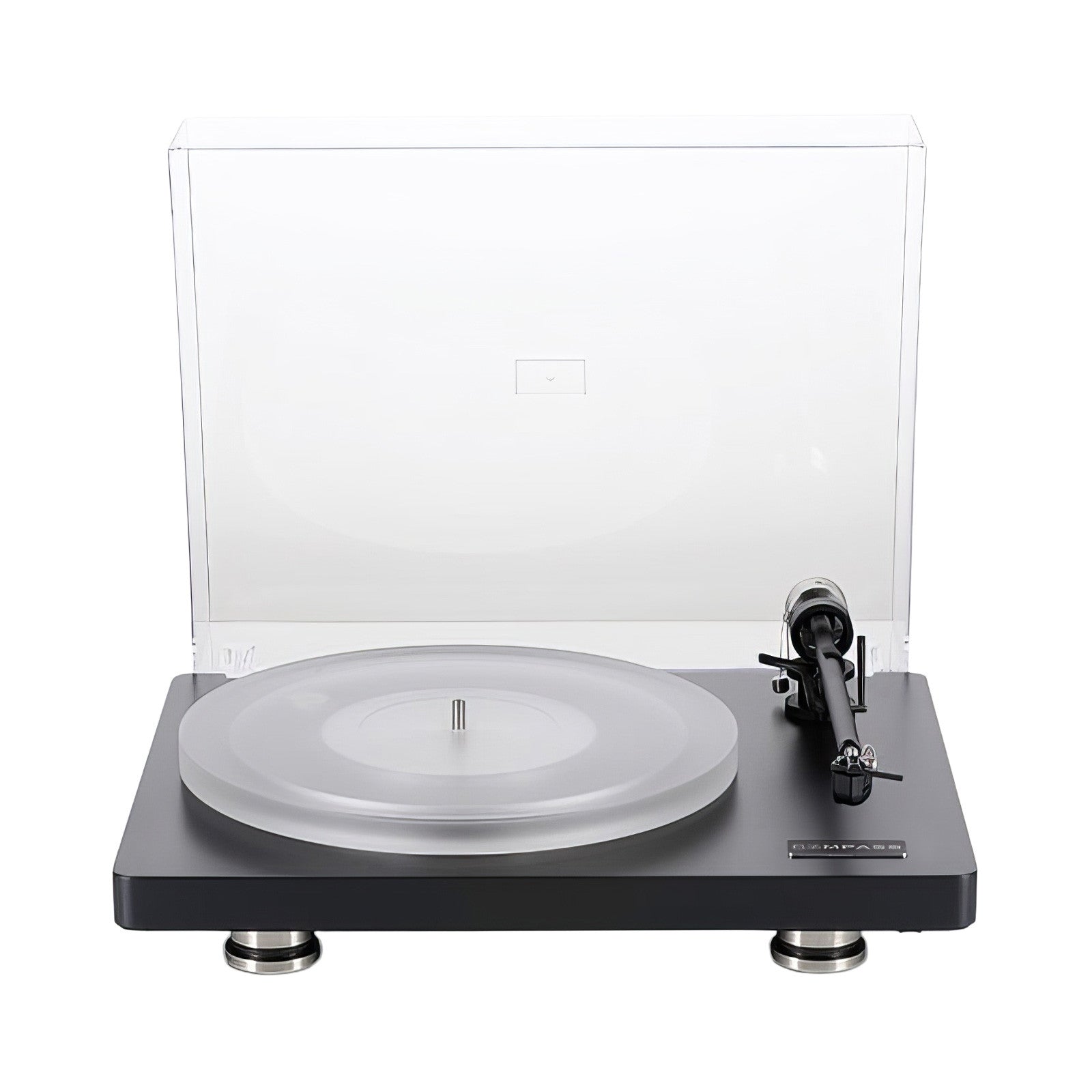

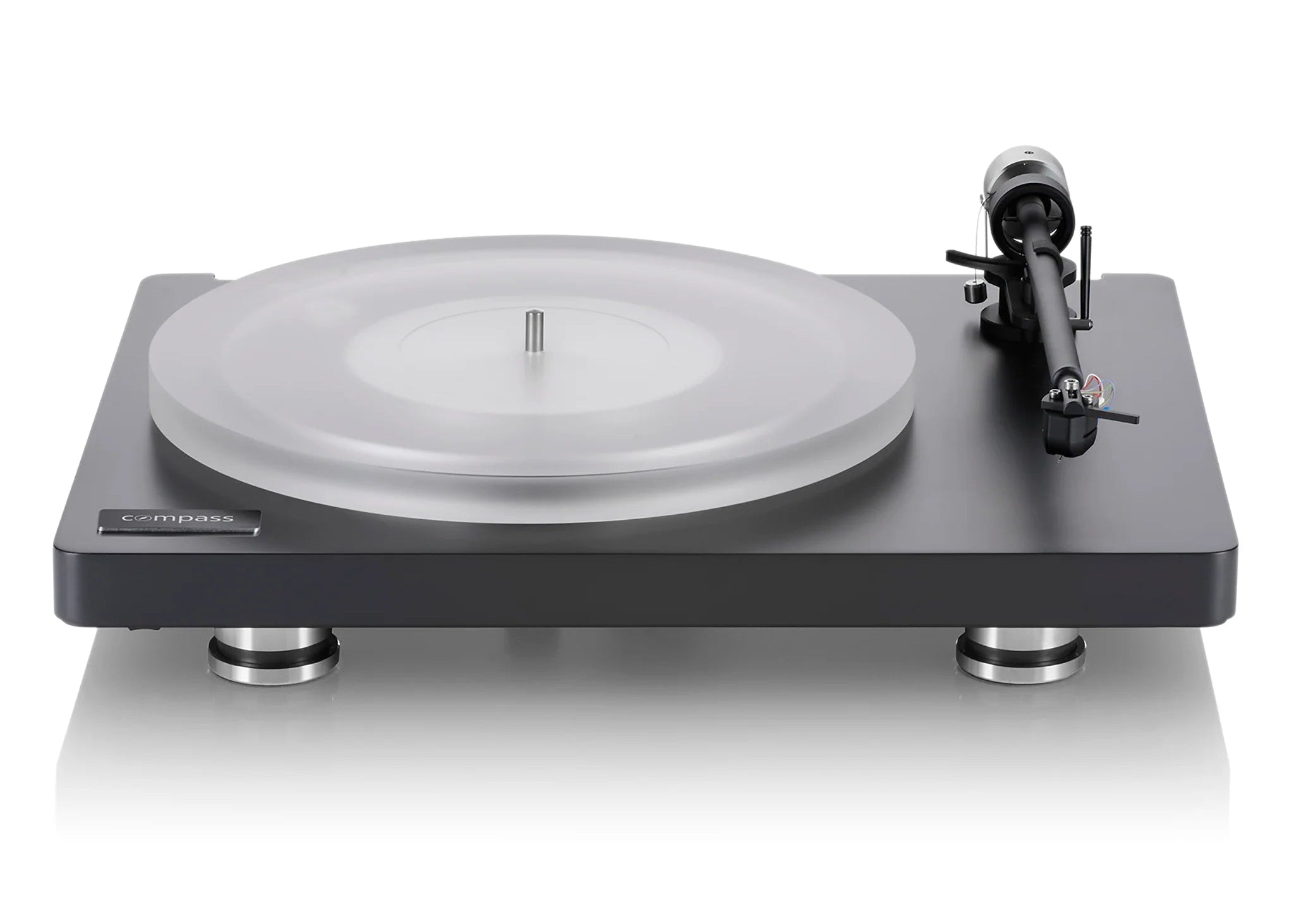

Clearaudio Compass Turntable
Ready-to-play belt-drive turntable with T1 tonearm, dust cover and N1 MM cartridge, handmade in Germany
The Clearaudio Compass brings genuine high-end performance to a wider audience by offering a matched tonearm and cartridge.
At its core is a resonance-optimized chassis, a precision bearing, and a meticulously machined platter system. These are paired with Clearaudio’s new T1 tonearm—a compact evolution of the acclaimed Satisfy—and the purpose-built N1 moving-magnet cartridge. The result is performance that reaches far beyond the expectations of this category.
Every acoustically critical component is manufactured in Erlangen with Clearaudio’s signature commitment to durability, precision, and craftsmanship. Available in black or silver, the Compass features a minimalist, low-resonance design, steel-plate damping, height-adjustable decoupling feet, and a high-quality acrylic dustcover.
The bearing is a polished and tempered steel spindle in sintered-bronze bushing running on a Teflon thrust pad. The platter is a 20 mm acrylic main platter with CNC-machined aluminum sub-platter.
Fully assembled and ready to play, it lets you unbox, set up, and start listening in minutes.
Included Accessories
- Acrylic dust cover with stainless-steel hinges
- N1 MM cartridge (factory installed)
- Plug-in worldwide power supply
Specifications
Tonearm
Type: Clearaudio T1 radial tonearm with string-based anti-skating
Arm Tube: Aluminum arm tube
Total Length: 301 mm
Effective Length: 239.12 mm
Pivot-to-Spindle Distance: 222 mm
Overhang: 17.12 mm
Offset Angle: 24.02°
Internal Wiring: 1.1 m Direct Wire PLUS with RCA termination
Tonearm Mass (with Counterweight): Approx. 470 g
Cartridge
Type: Clearaudio N1 MM moving-magnet cartridge
Total Mass: 12.5 g
Frequency Response: 20 Hz–20 kHz
Output Voltage: Approx. 2.9 mV at 1 kHz, 5 cm/s
Channel Separation: 20 dB
Channel Balance: ≤2 dB
Tracking Ability: 80 μm
Recommended Tracking Force: 2.2 g
Coil Impedance: 0.66 kΩ
Inductance: 400 mH
Load Resistance: 47 kΩ
Load Capacitance: 100 pF
Cantilever: Aluminum
Stylus Profile: Elliptical
Compliance: 15 μ/mN
Body: Aluminum
Turntable
Speed Options: 33⅓, 45 rpm
Speed Accuracy (Measured): ±0.05%
Power Consumption: 5.56 W max; 2.81 W in operation; 0.0 W in off-mode (bottom-mounted switch)
Dimensions (WHD): 17.13" x 13.39" x 4.72" (435 x 340 x 120 mm)
Weight: 18.52 lb. (8.4 kg)
