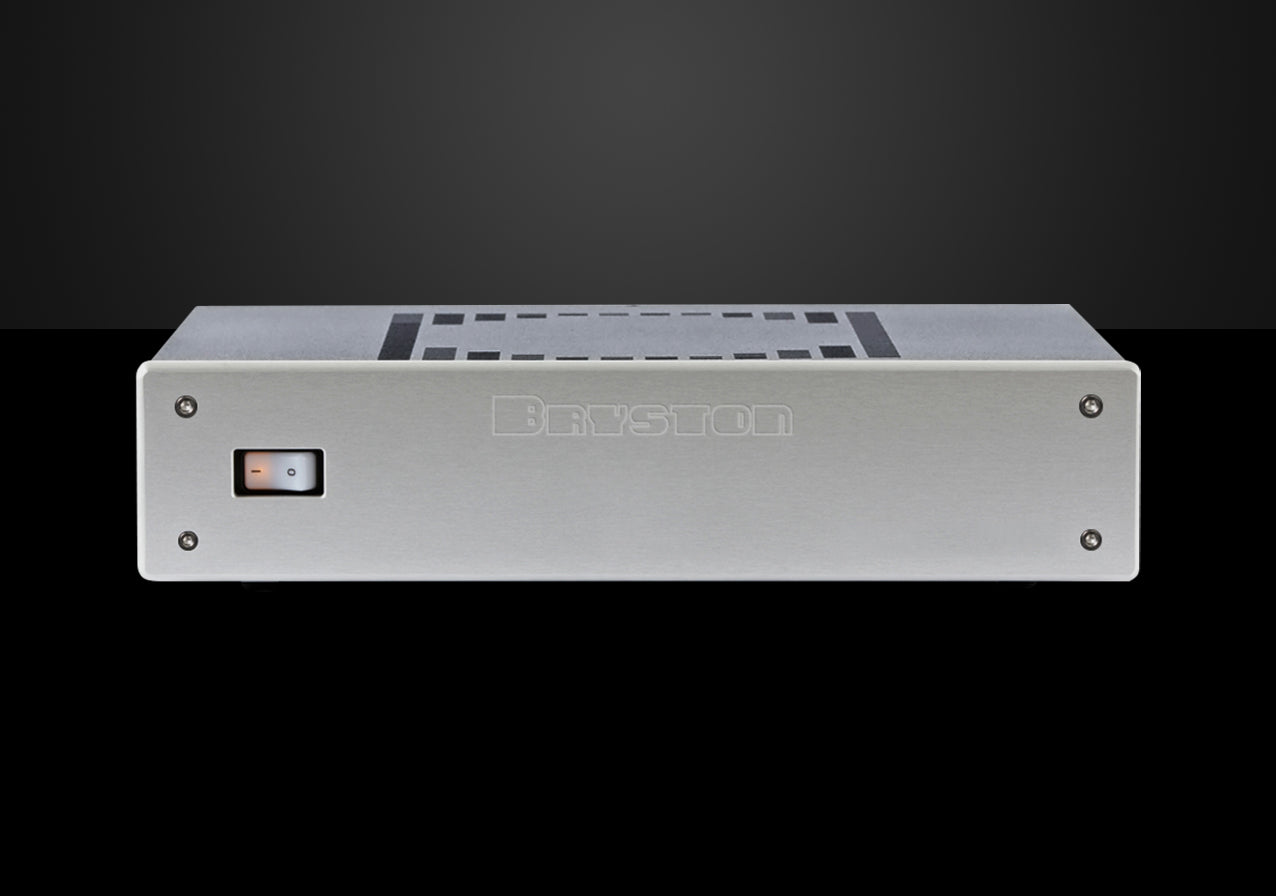

Bryston BIT 15 Isolation Transformer Power Conditioner with Surge Protection



Pin It
Bryston BIT15 Power Conditioner with Surge Protection has been designed as a complete power isolation unit which is ideal for protecting your equipment while smoothing out the current running through your home theatre and home audio system. The BIT15 provides true isolation, along with low source impedance, and large enough instantaneous current for today’s most sophisticated and powerful audio amplifiers. Protect your system against diminished resolution and dimensionality in audio playback and video display.

Features:
  • Ten-outlet power conditioner
  • Provides clean AC and isolation
  • Medical grade duplex 15A AC outlets
  • Provides clean AC and surge protection
  • Performs as a low pass filter
  • Uses moving mode surge protection rather than MOVs for better surge performances
  • Meets IEEE c62.41-1991 and is built to withstand 6000 Volts, 3000 Amps for 1000 repeats
  • Clamping voltage of 2 Volts above peak nominal voltage
  • Noise reduction: Performs as low-pass filter, attenuating noise from 2 kHz to 1 MHz, with attenuation of 12 dB/decade to 500 Hz
  • High current capability
  • True isolation - specially designed toroidal transformer, creates a protected zone between the outside power grid and the connected devices
  • Low source impedance

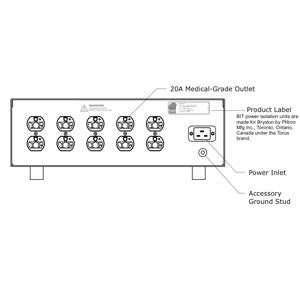

  • Rear-panel accessory ground stud
  • Rear-panel IEC-type AC power receptacle
  • High-quality IEC-type AC power cord included
  • Available in Silver or Black

Specifications:

  • Input voltage: 120 VAC, 60 Hz (range +/- 10% voltage, 57-63 Hz)
  • Input current listing: 16A (front panel circuit breaker)
  • Load current capability: 1/2 cycle, 300A; 1 second, 150A; 10 seconds, 75A
  • Input connector (rear panel): IEC-320 c14
  • Line cord (included): N5/15, 14AWG, C13, 15A/125V
  • Suggested wall receptacle: Standard outlet NEMA 5015R, 15A/125V
  • Duplex Outlets on rear panel: 5 (10 outlets) medical grade, 15A
  • Dimensions: 17" or 19" wide faceplate, 4" high, 11.3" deep
  • Weight: 44.5 lbs.
