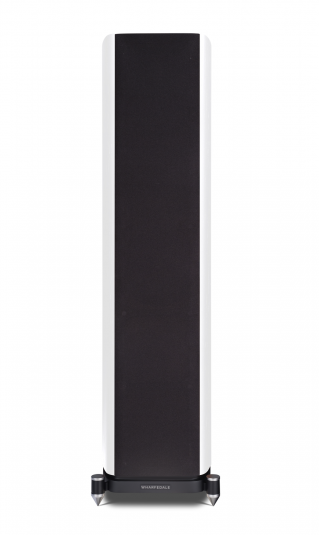

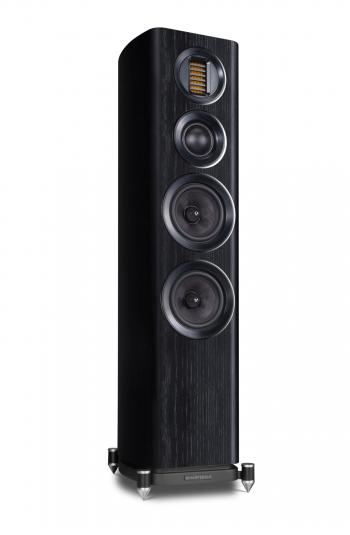

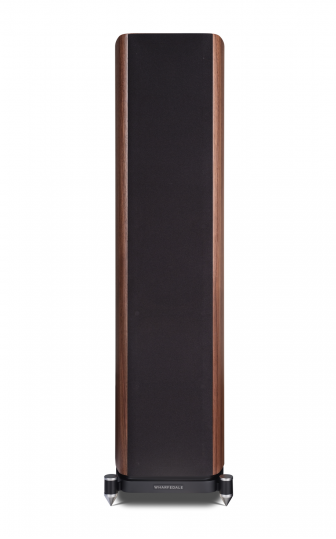

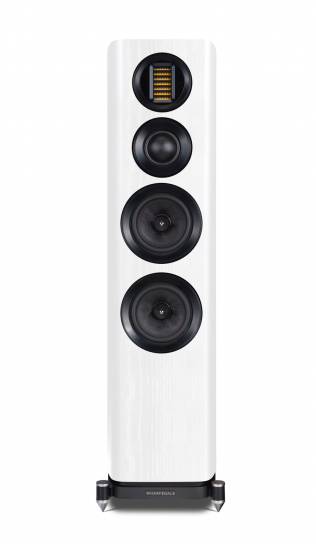

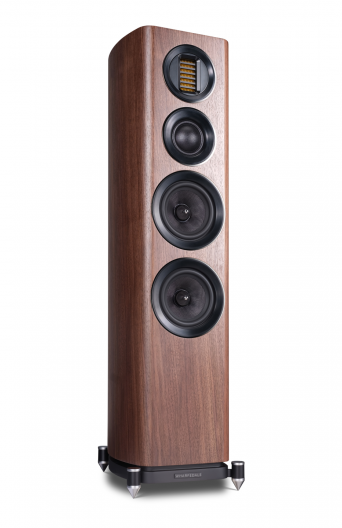

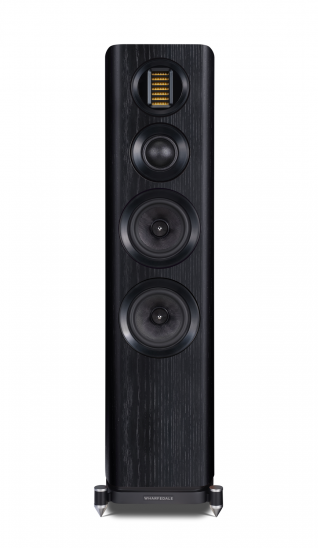

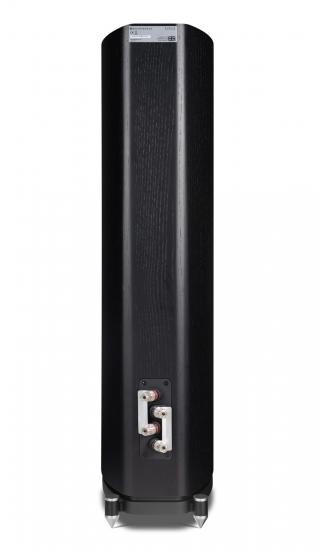

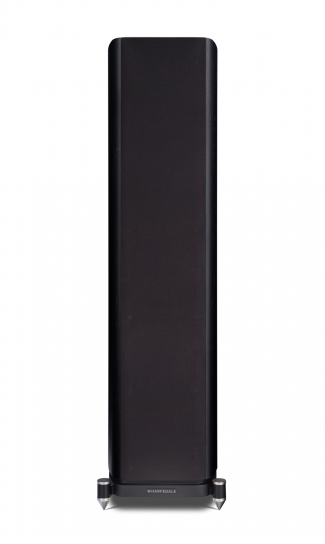

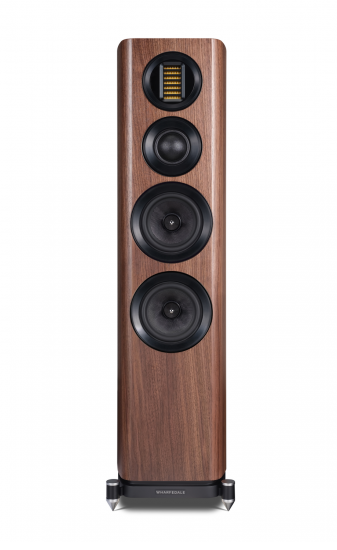

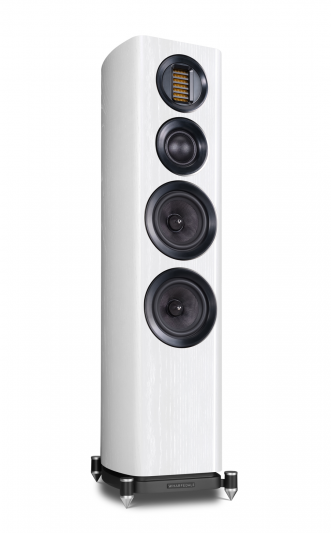

Wharfedale’s new EVO4 has grown out of the extensive research and development that produced the ELYSIAN flagship loudspeakers and borrows much of the technology involved in ELYSIAN.
The primary focus is on the AMT development resulting in a radically different way of reproducing high frequency detail efficiently and accurately. Similar cabinet technology to ELYSIAN provides a stable and solid foundation for the drive units with radiused edges to help integrate the driver output with the room acoustics. In addition the unique SLPP bass reflex system, as developed for ELYSIAN, is now incorporated in EVO4.
Specifications:
|
3-way floorstanding speaker |
Enclosure Type |
bass reflex |
Transducer Complement |
3-way |
Bass Driver |
5"(130mm) black woven Kevlar® cone x2 |
Midrange Driver |
2"(50mm) soft dome |
Treble Driver |
30x60mm AMT |
AV Shield |
No |
Sensitivity (2.83V @ 1M) |
88dB |
Recommended Amplifier Power |
25-150W |
Peak SPL |
105dB |
Nominal Impedance |
8Ω Compatible |
Minimum Impedance |
4.4Ω |
Frequency Response (+/-3dB) |
48Hz ~ 22kHz |
Bass Extension (-6dB) |
42Hz |
Crossover Frequency |
1.3kHz,4.3kHz |
Dimensions (HxWxD) |
875 x 210 x (285+10)mm |
Net Weight |
22.8kg/pcs |
