Tannoy Autograph Mini - Oiled Walnut - PAIR



Pin It
  • AUTOMATED ORDERING UNAVAILABLE

    PLEASE CALL TOLL FREE 855.991.8181 FOR PURCHASE ASSISTANCE OR EMAIL SALES@DEDICATEDAUDIO.COM

    PRESTIGE AUTOGRAPH MINI-OW

    Audio is a powerful component of the cinematic experience; it envelopes you in the action, tugs at your emotions, and brings an unparalleled level of enjoyment to the presentation. The AUTOGRAPH MINI-OW 2 Way Stand Mount 4" Dual Concentric HiFi Loudspeaker brings that level of performance to your home environment in a luxurious high end oiled walnut finish that is as pleasing to the eye, as it is to the ear. AUTOGRAPH MINI-OW elevates your audio content to the levels envisioned by the original mastering engineer – all of which needs to be experienced in all its unabridged beauty, detail, and nuance. A truly great loudspeaker design enables the speaker system to remove itself from the soundscape, and presents the sonic experience in a manner that transports you to a higher plane. Innovation and outstanding performance – that is the AUTOGRAPH MINI-OW.

    STUDIO QUALITY AUDIO IN YOUR HOME

    AUTOGRAPH MINI-OW provides class-leading coherence and point-source imaging for that highly sought after truly natural sound. The 200-Watt 4" LF dual driver with 19 mm titanium HF dome driver delivers breathtaking dynamics, powerful transient response and unparalleled realism across a wide frequency range with an almost total lack of coloration. Many of the world’s greatest hits have been recorded and mixed using TANNOY studio monitors, and listening to these speakers will turn your living room into a fully-fledged entertainment center.

    TANNOY DUAL CONCENTRIC

    At the heart of the AUTOGRAPH MINI-OW’s superb performance you will find an all-new iteration of our legendary and exclusive TANNOY Dual Concentric Driver Technology. The new 4" Dual Concentric driver offers enhanced dispersion – creating an even more uniform spread of sound around the listening environment. At the same time, the introduction of the Omnimagnet configuration allows the high frequency unit to be placed even closer to the acoustic center of the low frequency unit, which further improves time alignment between the two drive units. These time coherent, point source, and constant directivity dispersion characteristics make the Dual Concentric design an accepted industry standard in studio monitoring. By exceeding the rigorous demands of the recording and mastering environment, AUTOGRAPH MINI-OW ensures that playback performance in the home for stereo or multi-channel home cinema is strictly controlled to accurately reflect the sound engineer’s artistry.

    POINT SOURCE TULIP WAVEGUIDE

    In nature, all sounds emanate from a single point in space. By centrally-locating the high frequency unit of the Dual Concentric configuration, AUTOGRAPH MINI-OW acoustically replicates the single point sound source, delivering exceptionally natural performance with an incredibly wide imaging “sweet-spot”. Delivery is further enhanced by the implementation of a highly-innovative point source Tulip Waveguide with symmetrical dispersion, which provides a broad soundstage with remarkably focused and accurate stereo imaging.

    OUTSTANDING COMPONENTS ARE JUST THE BEGINNING

    It takes a lot more than quality materials and hand-selected drivers to build a great loudspeaker; it takes engineering experience with a deep understanding of acoustics, dedicated craftsmanship, inspiration, and a healthy dose of imagination. For example, the internal crossover network features custom engineered TANNOY capacitors, low loss laminated core inductors and improved, closer tolerance wirewound resistors – ensuring a truly natural sound with a frequency response of 106 Hz to 20 kHz +/-3 dB (60 Hz to 20 kHz -10 dB).

    ENCLOSURE DESIGN

    AUTOGRAPH MINI-OW’s handcrafted, oiled walnut veneered cabinet with solid walnut trim provides a unique and timeless piece of furniture that will complement even the most sophisticated environment. The non-parallel enclosure design disperses internal standing waves and reflections for virtually imperceptible coloration, plus is constructed of high density wood to control low frequency performance and eliminate the mid-frequency ringing effects often found in competing products. Additionally, AUTOGRAPH MINI-OW's rock-solid reflex system boasts extensive bracing that delivers tuneful and musically coherent low frequency performance. The rear-firing, reflex port helps to reduce room boundary effects and facilitates easy loudspeaker placement.

    THE LEGACY LIVES ON

    TANNOY’s long and storied legacy lives on in the new AUTOGRAPH MINI-OW 2 Way Stand Mount 4" Dual Concentric HiFi Loudspeaker; a legacy that has endured the test of time and adapted with the evolution of technology. Whilst the bass is quite deep for the size of the enclosure relative to the driver size, the speed and leading impulse is exciting and rewarding. Vocals are a little forward, as with many monitoring speakers, allowing the nuances of the voices to be fully appreciated. The smooth transition between the LF and HF sections of the Dual Concentric driver provides amazing clarity with powerfully dynamic transient response. AUTOGRAPH MINI-OW simply has to be experienced...

  • FEATURES:
    • 2 way stand mount loudspeaker for small sized rooms

    • A miniature and authentic recreation of the famous 1950's Tannoy AUTOGRAPH design

    • Dual Concentric driver technology provides class-leading coherence and point-source imaging

    • 4" driver with 200 Watt peak power handling delivers incredible dynamics for the size of enclosure

    • Point source Tulip Waveguide with symmetrical dispersion for accurate stereo imaging

    • 19 mm titanium dome driver provides exceptional wideband high frequency clarity and articulation

    • Handcrafted, oiled walnut veneered cabinet with solid walnut trim provides a unique and timeless piece of furniture

    • Low frequency paper pulp cone with rubber surround provides natural sounding midrange and excellent bass extension

    • Hard wired crossovers featuring proprietary Tannoy capacitors and low loss laminated core inductors delivering a more natural and cohesive sound

    • Highly conductive, low resistance internal wiring maximizes signal transparency

    • High density wood cabinet provides extreme rigidity to control low frequency performance and minimize midrange coloration

    • High loss internal damping panels further minimize cabinet coloration

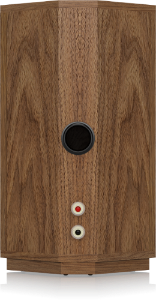

    • Rear ported for a richer and deeper bass response

    • Oatmeal grille cloth contributes to legacy styling

    • Tannoy - around 100 years of British sound heritage and innovation

  • SPECIFICATIONS:
    Recommended amplifier power 20 - 100 Watts
    Continuous power handling 50/200 Watts RMS Cont/Peak
    Frequency response 60Hz - 20kHz -10dB
    Sensitivity 88 dB (2.83 Volts @ 1 metre)
    Nominal impedance 8 Ohms
    Dual Concentric™ high frequency 19mm (0.75”) titanium dome with Tulip WaveGuide™
    Dual Concentric™ low frequency 100mm (4.50”) treated paper pulp cone with rubber surround. 33mm (1.33”) edge wound voice coil
    Dispersion

    90 degrees conical

    Frequency 2.3kHz
    Type Passive low loss 2nd order compensated LF, 1st order compensated HF



    Enclosure type Rear ported
    Volume 3.5L (213.5 cu.ins”)
    Dimensions 356 x 209 x 156mm
    Weight 4.4kg
    Finish Oiled Walnut
