Shunyata Research Venom V16 Power Conditioner



Pin It
  • 25 YEARS OF EXPERIENCE & SCIENTIFIC INNOVATION
    DESIGN PROGRESSION

    The Venom Series V16 was designed using Shunyata Research’s latest advances in dynamic transient current delivery, CCI noise reduction and vibration management. It includes many of the features of our more expensive, award winning power conditioners and yet it is very attractively priced.

    The Venom Series V16’s  proprietary noise reduction technology and exceptional 16 outlet capacity make it an ideal choice for home theater or complex music systems. The Venom V16’s technology and exceptional build quality provides a level of performance that is frankly unavailable from products priced two to three times higher.

    There is no better example of Shunyata Research’s meteoric achievements in performance and value than that provided by the Venom Series V16 power distributor.

    This new "Venom Series" V16 model is housed in a shelf mount aluminum chassis. It sports an attractive faceplate and offers 16 outlets of high-current delivery split into 2 isolated zones of CCI noise reduction as well as exceptional internal transient protection.

    The Venom V16 will require a C-19 power cord for the wall connection (optional).

  • FEATURES:
    • Sixteen Outlets
    • Dual Zones
    • CCI Noise Reduction
    • Chassis Grounding Lug
    • Made in USA

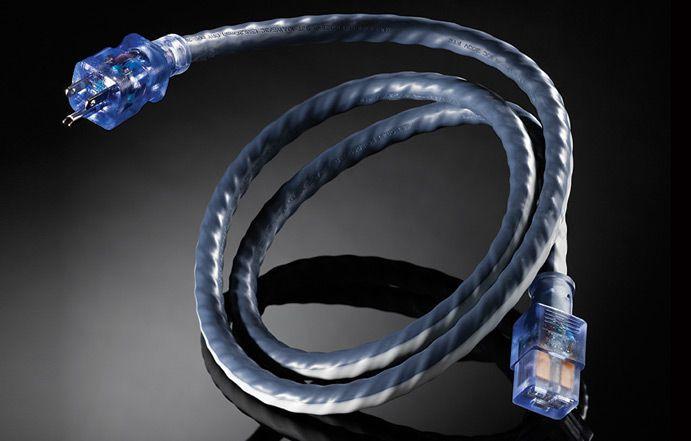

    • Optional V16/Venom Custom HC power cord
  • SPECIFICATIONS:

    Maximum Voltage:
    90-125 VAC r.m.s. unregulated (US)
    220-240 VAC r.m.s. unregulated (AS)

    Input Current Ratings:
    Maximum Continuous Current: 20A (US)
    Maximum Continuous Current: 16A (AS)

    Output Current Ratings:
    Max Current/Outlet: 15A (US)
    Max Current/Socket: 15A (AS)

    Transient Suppression:
    Maximum Transient Protection: 40,000 A @ 8/50 μs

    Over-Current Protection:
    Hydraulic Electromagnetic Breaker

    Wiring System:
    Dual 12-gauge ArNi® VTX™ Buss System
    Ratings: 600 V 105° C

    Noise Suppression:
    Input to Output (100 kHz – 30 MHz): > 24 dB reduction
    Zone to Zone (100 kHz – 30 MHz): > 26 dB reduction

    Isolation Zones: 2 zones

    Outlets & Connectors:
    Inlet: IEC C19R

    US Outlets: 16 NEMA5-20R
    AS Outlets: 16 NEMA 5-20R

    Vibration Control:
    Vibration dampening panels (internal)
    AC outlet dampening gaskets

    Construction:
    Aluminum and steel chassis
    Anodized, aluminum faceplate

    Dimensions:
    Width: 17.0 inches (43.2 cm)
    Depth: 9 inches (22.9 cm)
    Height: 4.6 inches (11.7 cm)
    Weight: 5.0lbs. (2.26kg)
