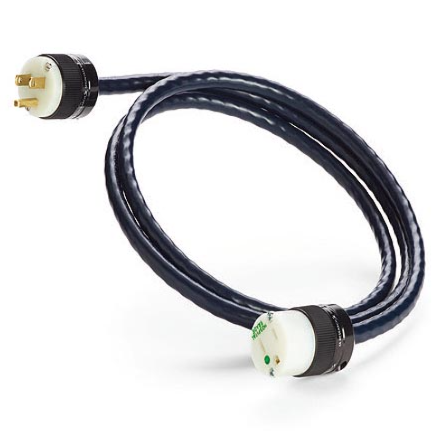

Shunyata Venom Ext Extension Power Cord



Pin It
  • The Venom EXT is essentially a high-end extension cord. It is made from the Venom HC high-current cabling and can be fitted with a variety of custom connectors.

    Shunyata Research uses only the highest purity of copper available for the production of its wire products. ‌‌OFE Alloy 101 or ‌‌C10100 is the highest grade of copper with a minimum 99.99% purity and a conductivity rating of 101% IACS. OFE stands for oxygen-free electrolytic and supersedes the term OFHC (oxygen-free high conductivity). ‌‌C10100 is the only grade of copper that comes with a written certification of purity. Certified by ASTM F68 ‌‌C10100.

  • 1.75M
  • Pure OFC Copper Conductors
    – Oxygen free copper
    – Large 10 Gauge Conductors

    Shunyata Designed Molded Connectors
    – Solid Brass Contacts (not folded metal)
    – Nickel Plating for Corrosion Protection
    – Superior Contact Grip
    – Crimped and soldered connections

    DTCD™ Tested
    – Designed using the Shunyata Research DTCD™ Analyzer
    – Ensures maximum instantaneous current capacity

    Safety Assurance
    – Continuity and Polarity Tests – by two technicians
    – HiPOT Tests for each cable
    – Cable spools tested for insulation breakdown @ 4,000 VAC

  • STANDARD LENGTH
    – 1.75M
     COLOR
    – Dark blue w/ white stripe
    CABLE DIAMETER
    – 0.56 inches (14.2mm)
    ELECTRICAL CONDUCTORS
    – 10 Gauge
    – OFC oxygen free copper

    AVAILABLE CONNECTORS
    – US: NEMA 5-20, NEMA 5-20R
    – EU: Schuko EU1-16, EU1-16R

    Call for custom terminations

    MAXIMUM VOLTAGE
    – Max Voltage (US): 90-240 VAC (connector dependent)
    – Max Voltage (Asia): 90-240 VAC (connector dependent)
    – Max Voltage (Euro): 240VAC (connector dependent)
    – Maximum Instantaneous Voltage: 1250 VAC
    CURRENT RATINGS
    – Max continuous current: 20 Amps (connector dependent)
    – Max instantaneous current: >200 Amps (800ms)
    ELECTRICAL TESTS
    – Polarity and continuity tests x2 (each cable tested)
    – HiPOT Test: 2,000 VAC @ 5s (each cable tested)
    – Insulation Breakdown Test: >4,000 VAC @ 2 minutes
