Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high power, audiophile performance amplifiers for multi-channel systems.
The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.
Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high powered, audiophile performance amplifiers for multi-channel systems.
Following Rotel's updated MKII design architecture, the RMB-1585MKII incorporates both circuit and component upgrades in the power supply and amplifier stages to delivering ultra-low distortion, signal isolation, and high-gain output power efficiently packaged in a single, multi-channel amplifier chassis.
The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.

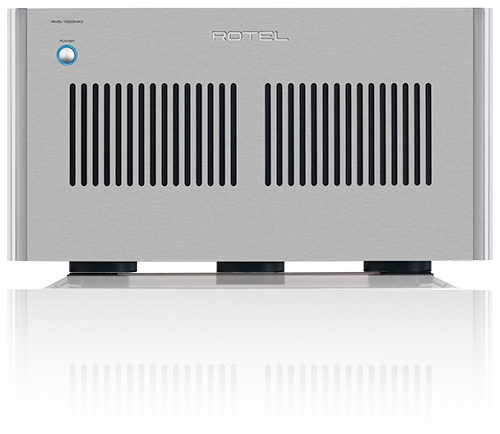

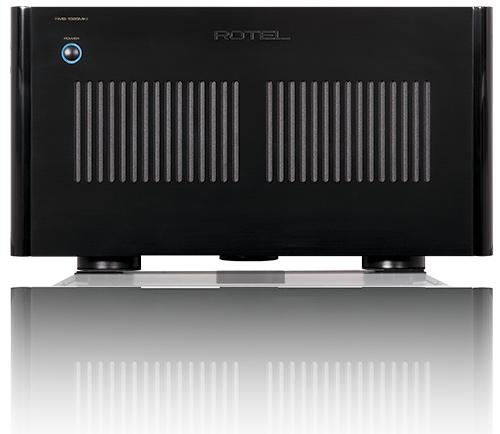

The RMB-1585MKII is available in both black and silver colors.
-
Features:
- 210 watts per channel into 8 ohms (20-20,000 Hz) at 0.03% THD with all channels driven
- 4-ohm stable for use with a wide range of speakers
- Class AB design
- Dual custom made massive toroidal transformers for stable, noise-free performance
- Eight high-efficiency energy storage capacitors supply a ready reserve of current
- Frequency response: 10-100,000 Hz (+0.1/-0.3dB)
- Signal-to-noise ratio: 120 dB
- Four thermostat-controlled, variable-speed ultra-low-noise fans
- Rear panel switch features selectable 5-channel mode or bi-amp mode
- In bi-amp mode, channels 1+2 and channels 4+5 are wired to receive the same input signal
- Allows easier bi-amping of compatible left and right speakers
- Rack mountable with optional hardware (sold separately)
- Detachable power cord

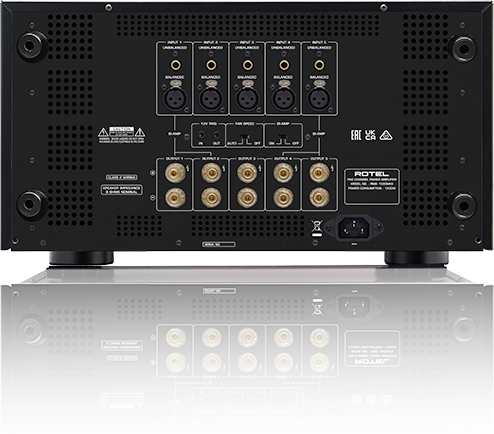

Connections:
- Balanced XLR and unbalanced RCA inputs for all five channels
- 5-way binding post terminals for each speaker
- 3.5mm 12-volt trigger in/out
-
Specifications:
Dimensions (W × H × D)431 × 237 × 456mm
17" × 9.4" × 18"Front Panel Height5U / 221mm (8.75")Power Requirements120V, 60HzPower Consumption1200WNet Weight37.4kg (82lbs.)BTU Rating (4Ω, 1/8th power)3317 BTU/hPower Output210W/Ch (5 channels driven, 8Ω)340W/Ch (5 channels driven, 4Ω)440W/Ch (2 channels driven, 4Ω)Total Harmonic Distortion (THD)<0.03%Frequency Response10Hz - 100kHz, +0.1, -0.3dBSignal to Noise Ratio (A Weighting)120dBGain26.9dBIntermodulation Distortion (60Hz:7kHz, 4:1)<0.03%Damping Factor (1kHz, 8Ω)223Crosstalk/ Separation> 55 dbInput SensitivityUnbalanced: 1.89VBalanced: 4.7VInput ImpedanceUnbalanced: 12kΩBalanced: 50kΩ
