Rotel C8+ 8 Channel Multi-Room Amplifier

Rotel C8+ 8 Channel Multi-Room Amplifier

$ 3,499.00

Pin It

Description
Features
Specifications

Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm loads.

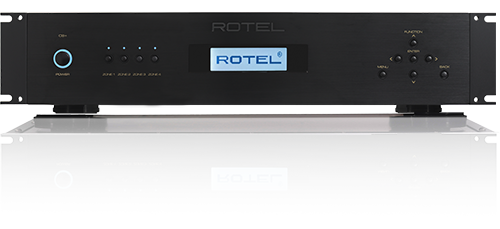

The C8+ includes 4 Analog and 4 Digital inputs matrixed to all Zones. Front panel display and controls provide source selection and independent volume, bass and treble settings. The custom 2U height requires no top or bottom clearance when rack mounting.

Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm speakers utilizing Rotel’s proprietary amplification technology.

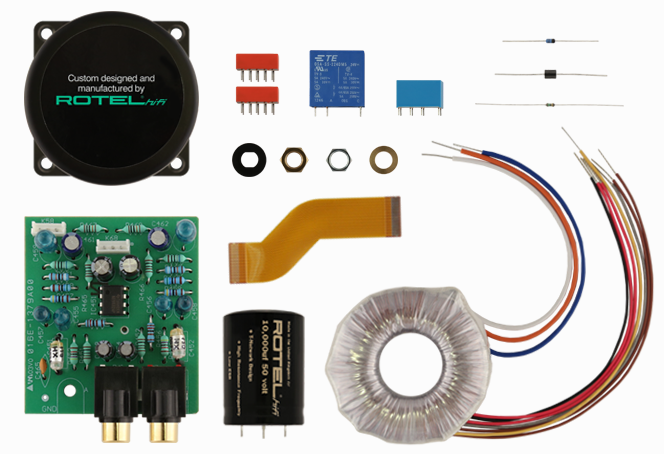

The oversized in-house manufactured toroidal transformer drives thirty-two output devices for effortless, controlled bass energy.

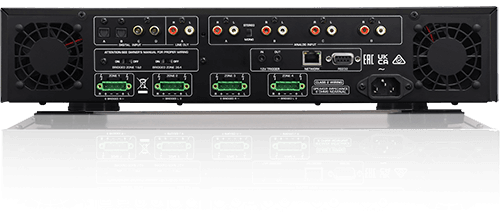

For ultimate installation flexibility the C8+ includes 4 Analog, 4 Digital inputs matrixed to all Zones. Front panel display and controls provide source selection and independent volume, bass and treble settings.

Control system integration is available via IP and RS232 interfaces and 12-Volt trigger.

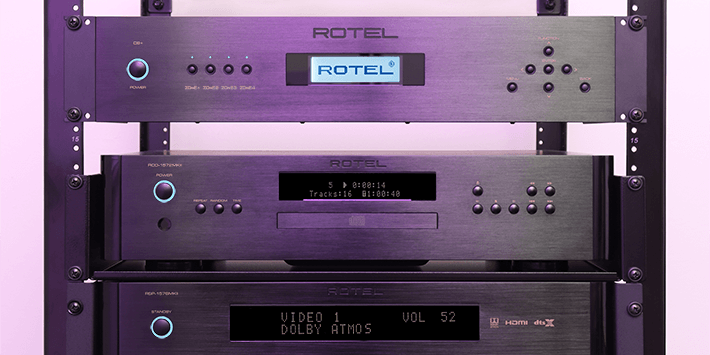

The custom 2U height requires no top or bottom clearance when rack mounting.

The C8+ is available in black only.
Features:

8 x 150 Watts of robust Class AB power, 4 Ohms

Custom engineered toroidal transformer

12 volt trigger input

4 individual 24-bit/192kHz Digital to Analogue Converters

Rack ears included
Specifications:

Dimensions (W × H × D)

430 × 97 × 414mm
17" × 3.9" × 16.3"

Front Panel Height

2U / 88.1mm (3.5")

Power Requirements

120V, 60Hz

Power Consumption

980W

Standby Power Consumption

Normal: <0.5W

Network Standby: <2W

Net Weight

18.35kg (40.79lbs.)

BTU Rating (4Ω, 1/8th power)

2744 BTU/h

Maximum Power Output

150W/Ch (8 channels driven, 4Ω)

Continuous Power Output

100W/Ch (8 channels driven, 8Ω)

Total Harmonic Distortion (THD)

<0.1%

Frequency Response

Line Level Inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB

Digital Inputs: 10Hz - 20kHz, 0 ± 0.5dB

S/N Ratio (IHF "A" Weighted)

Line Level Inputs: 100dB

Digital Inputs: 102dB

Intermodulation Distortion (60Hz:7kHz, 4:1)

<0.1%

Damping Factor (20Hz - 20kHz, 8Ω)

80

Tone Controls

± 10dB at 100Hz / 10kHz

Crosstalk / Separation

>50dB

Digital to Analog Converters

Texas Instruments

Input Sensitivity

Line Level Inputs: 0.43V

Digital Inputs: -13.5dBfs

Input Impedance

Line Level Inputs: 31kΩ

Digital Inputs: 75Ω

Input Overload

Line Level Inputs (RCA): 2.8V

Optical Digital Signals

SPDIF LPCM (up to 192kHz/24-bit)
