    Rotel’s A12 integrated amplifier offers impressive audio performance as well, but with slightly less output at 60-watts per channel. Input connections include both analog and digital, along with aptX Bluetooth streaming capability.

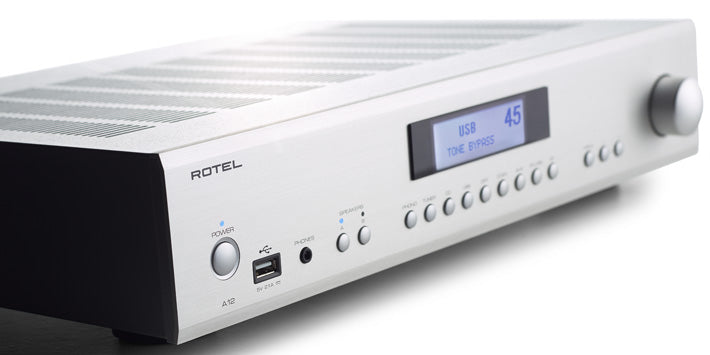

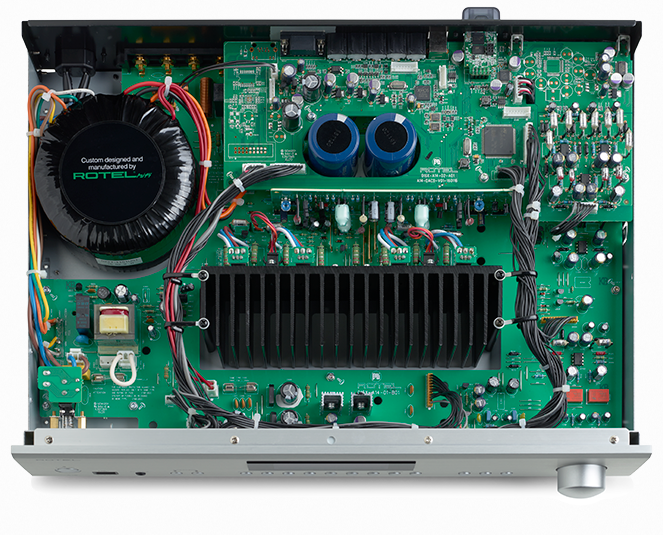

    The A12 integrated amplifier displays the same clean lines and intuitive operation as the A14 with output power rated at 60 watts per channel RMS into 8 ohms. Rotel engineers begin their quest for uncompromising audio performance at the power supply. This is the heart of an amplifier and an area where considerable time and investment is spent. Rotel manufactures its own toroidal transformers in-house to high tolerances using raw materials selected from proven, trusted suppliers. The result is a rugged power supply that won’t easily distort the music under dynamic conditions or with diŽfficult speaker loads.

  • FEATURES:
    • 2 x 60 Watts of robust Class AB power
    • Front panel USB for Apple iOS devices
    • Moving magnet phono input for turntable connection
    • Bluetooth with aptX
    • Wolfson premium 24-bit/192kHz Digital to Analog Converter

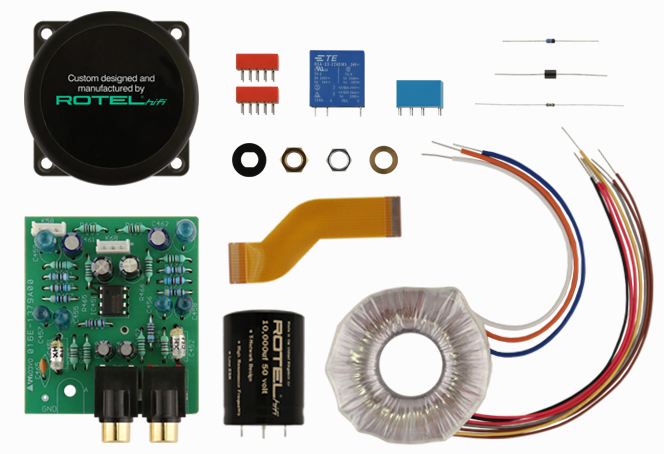

    • Oversized Toroidal Power Supply
    • CD, Phono (MM), Tuner, Aux 1, Aux 2
    • Digital inputs and outputs includingcoax and optical
    • Front USB for iOS devices with 2.1Acharging input
    • Wolfson Premium DAC 24-bit/192kHz
    • Rear panel PC-USB 24-bit / 192kHz input
    • Integrated Bluetooth aptX
    • Fixed gain volume option (DAC/Amp).
    • Configures a fixed volume level for specific inputs.
    • Signal sensing power control
    • 1 set of RCA Pre-outputs
    • 12 volt triggerRS-232 control
    • Headphone jack
    • Detachable IEC power cord
    • A+B speaker selector
  • SPECIFICATIONS:
    • DIMENSIONS (W × H × D):
      • 430 × 93 × 345mm
      • 17" × 3.6" × 13.5"
    • FRONT PANEL HEIGHT: 80mm (3.15")
    • POWER REQUIREMENTS: 120V, 60Hz
    • POWER CONSUMPTION: 230W
    • STANDBY POWER CONSUMPTION: <0.5W
    • NET WEIGHT: 8kg (17.6lbs.)
    • BTU RATING: (4Ω, 1/8th power): 517 BTU/h
    • CONTINUOUS POWER OUTPUT: 60W/Ch (All channels driven, 8Ω)
    • TOTAL HARMONIC DISTORTION (THD): (20Hz–20kHz) <0.03%
    • FREQUENCY RESPONSE:
      • Line Level Inputs: 10Hz - 100kHz ±0.5dB
      • Digital Inputs: 10Hz - 80kHz ±3dB
      • Phono Input: 20Hz - 15kHz ±0.5dB
    • S/N RATIO (IHF "A" Weighted):
      • Line Level Inputs: 100dB
      • Digital Inputs: 103dB
      • Phono Input: 90dB
    • INTERMODULATION DISTORTION (60Hz:7kHz, 4:1): <0.03%
    • DAMPING FACTOR: 220
    • SPEAKER IMPEDANCE: 4Ω minimum
    • INPUT SENSITIVITY:
      • Line Level Inputs: 200mV
      • Digital Inputs: 0dBfs
      • Phono Input (MM): 3mV
    • INPUT IMPEDANCE:
      • Line Level Inputs: 24kΩ
      • Digital Inputs: 75Ω
      • Phono Input (MM): 47kΩ
    • INPUT OVERLOAD:
      • Line Level Inputs: 4V
      • Phono Input: 50mV
    • PREOUT LEVEL: 1V
    • OUTPUT IMPEDANCE: 470Ω
    • TONE CONTROLS: ±10dB at 100Hz / 10kHz
    • COAX/OPTICAL DIGITAL INPUT SIGNALS: LPCM (Up to 24-bit/192kHz)
    • PC-USB:
      • USB Audio Class 1 (up to 24/96)
      • USB Audio Class 2 (up to 24/192)
