Rotel A10 MKII Integrated Amplifier



Pin It
  • The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience. Constructed with a massive Rotel-built toroidal transformer, the A10MKII delivers 50 Watts per channel of Class A/B power into 8 ohms featuring three RCA inputs and a Moving Magnet Phono stage for vinyl lovers.

    The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience.

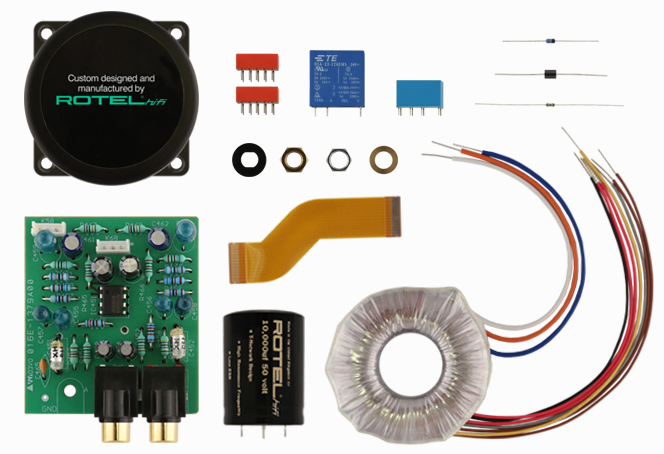

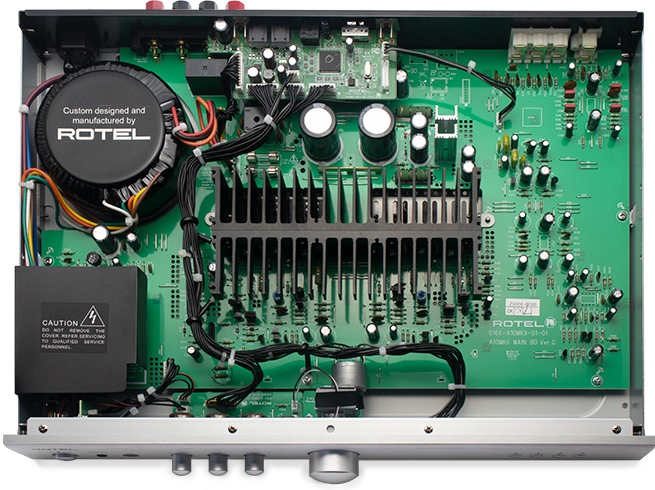

    Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A10MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher into more challenging loudspeakers.

    All analog sources are welcome, with three line-level RCA inputs, and a Moving Magnet compatible Phono stage provided for vinyl lovers. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

    An intuitive front panel layout includes rotary Bass, Treble, and Balance controls making the A10MKII a joy to use up close, while the included IR remote control, and a motorized analog volume controller extend ease of use to the listening seat.

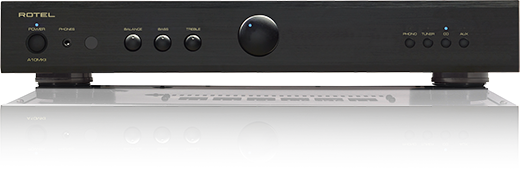

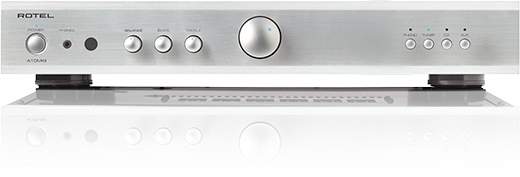

    The A10MKII is available in both black and silver colors.

  • Features:
    • 2 x 50 Watts of robust power, 8 Ohms
    • Includes remote control
    • Moving Magnet Phono input for turntable connection
    • Class AB amplifier design
    • High current power supply
  • Specifications:
    Dimensions (W × H × D)
    430 × 73 × 347mm
    17” x 2 7/8” x 13 5/8”

    Front Panel Height
    60 mm (2 3/8”)

    Power Requirements
    120V, 60Hz

    Power Consumption
    150W

    Standby Power Consumption
    <0.5W

    Net Weight
    6.6 kg, 14.5 lbs

    BTU Rating (4Ω, 1/8th power)
    450 BTU/h

    Power Output
    50W/Ch (8Ω)
    60W/Ch (4Ω)

    Total Harmonic Distortion (THD)
    <0.03%

    Frequency Response
    Line Level Inputs: 10Hz - 100kHz, -0.5dB, +0.05dB
    Phono Input: 20Hz - 20kHz, -0.5dB, +0.3dB

    S/N Ratio (IHF "A" Weighted)
    Line Level Inputs: 90 dB (Max Volume)
    Line Level Inputs: 98 dB (Min Volume)
    Phono Input: 85dB
