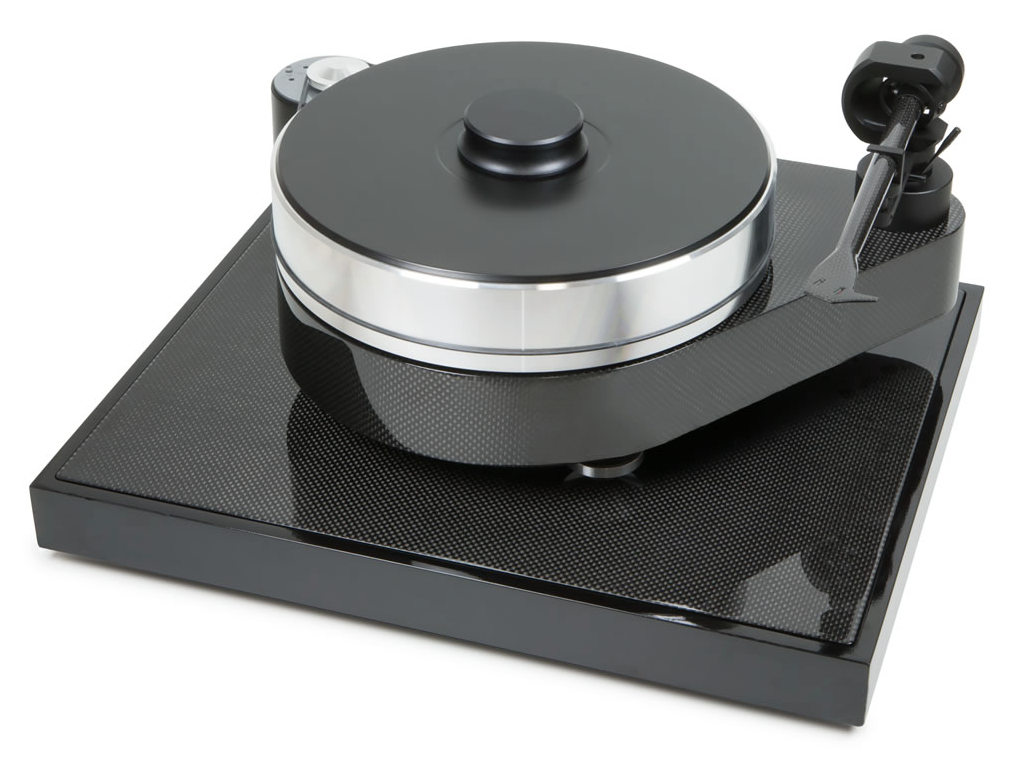

Pro-Ject RPM 10 Carbon turntable with 10“ Evo tonearm



Pin It
  • RPM 10 Carbon: Beautiful, clever design with ultimate high-end sound quality

    Thanks to extensive research and development, we´re now lift our classic RPM design to an even higher level. The RPM 10 Carbon uses a new extra-heavy chassis. It features a special CNC-machined MDF base with resin-coated steel pellets to form an extra-heavy and precise sandwich construction. A special complex heat treatment and carbon surface coating ensures superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface using magnetic feet. Combined with a new special polished aluminium platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolutely stable turntable speed with extra-low rumble. The heavy outboard motor unit is equipped with precise motor control and features a built-in switch between 33 & 45 rpm. Last but not least, the non-compromise 10“ Evo tonearm with conical carbon-fibre arm tube and inverted bearing design ensures perfect tracking, even with demanding cartridges. Highly flexible top-grade copper internal wiring is used. Delivered with Ground it Carbon equipment base & top-grade 5P phono cable ´Connect it CC´ with RCA plugs (XLR as an option). Acrylic dustcover Cover it 1 is also available.

  • Advanced sandwich construction of plinth with combina-tion of MDF, carbon fibre and steel pellets

    Plinth manufactured with thermo treatment

    Mass loaded subchassis design with magnetic feet

    14,5kg Ground it Carbon equipment base included

    Inverted main bearing with ceramic ball/plate

    Extra-heavy acoustically inert aluminium platter with

     TPE damping and vinyl mat on the top

    DC power supply with AC motor

    Precise DC driven AC generator (Speed Box) built-in

    Electronic speed control with 33/45 rpm switching

    78 rpm optional

    Outboard motor construction with massive steel base

    Pre-mounted 10“ tonearm 10 cc Evolution

    5P Connect it Phono CC cable with RCA plugs (XLR available as an option)

  • TECHNICAL DATA
    PRO-JECT RPM 10 CARBON
    Speed 33, 45 (electronic speed change)
    Drive principle belt drive
    Platter 10,4kg aluminium (300mm diameter)
    Mains bearing inverted stainless steel with ceramic ball/plate
    Wow & flutter 33: +/- 0,11% 45: +/- 0,10%
    Speed drift 33: +/- 0,01% 45: +/- 0,01%
    Signal to noise - 75dB
    Effective arm length 254 mm
    Effective arm mass 8,5 g
    Overhang 16mm
    Tracking force 10 - 35mN
    Supplied counterweights 5 - 7,5gr / 7 - 10gr / 9 - 11gr / 10 - 14gr
    External power supply 15 volts DC / 1,6A
    Power connection 110/120 or 230/240 Volt - 50 or 60 Hz
    Power consumption 15 watts max / < 0,3 watts standby
    Dimensions 480 x 210 x 330mm (WxHxD)
    Weight 22,0 kg net
    Weight base 14,5 kg net
