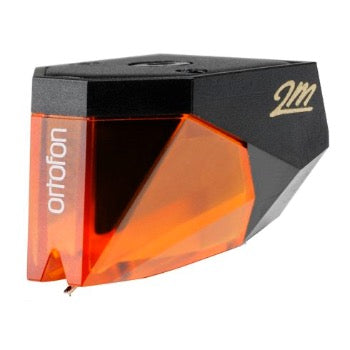

Ortofon 2M Bronze Moving Magnet Cartridge

Pin It

    The 2M Bronze features a Nude Fine Line diamond, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.

    The cartridge body is manufactured from Hopelex, a material which ensures high rigidity while eliminating unwanted resonances. The 2M Bronze uses a  special upgraded engine, featuring split pole pins with a silver plated copper wire.

    We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today.The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

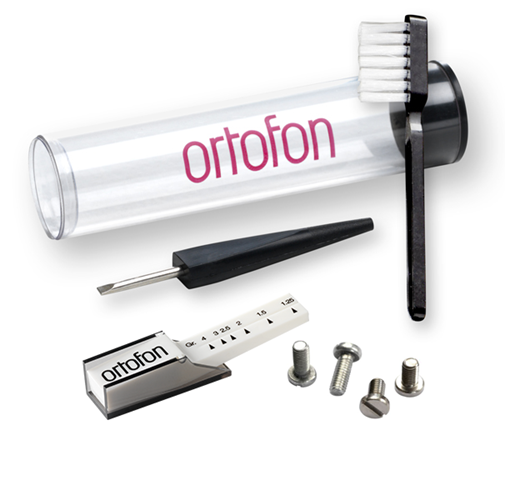

    2M Bronze Maintenance Set included the package:1 x Stylus brush

    1 x Screwdriver
    2 x Screw M2,5 x 5
    2 x Screw M2,5 x 7
    1 x Stylus pressure gauge

    2M Bronze Verso Maintenance included the package*:

    1 x Stylus brush
    1 x Allen key Torx 6
    1 x Allen key Torx 8
    2 x Screw M2,0 x 6
    1 x Stylus pressure gauge

    *Not all parts from the 2M Bronze Verso package appear in the picture


    Output voltage at 1000 Hz, 5cm/sec.  -  5 mV
    Channel balance at 1 kHz  -  1 dB
    Channel separation at 1 kHz  -  26 dB
    Channel separation at 15 kHz  -  15 dB
    Frequency response  -  20-20.000 + 2 / - 0 dB
    Tracking ability at 315Hz at recommended tracking force  -  80 µm
    Compliance, dynamic, lateral  -  22 µm/mN
    Stylus type  -  Nude Fine Line
    Stylus tip radius  -   r/R 8/40 µm
    Tracking force range  -  1.4-1.7 g (14-17 mN)
    Tracking force, recommended  -  1.5 g (15 mN)
    Tracking angle  -  20°
    Internal impedance, DC resistance  -  1.2 kOhm
    Internal inductance  -  630 mH
    Recommended load resistance  - 47 kOhm
    Recommended load capacitance  -  150-300 pF
    Cartridge colour, body/stylus  -  Black/Bronze
    Cartridge weight  -   7.2 g

    Replacement stylus unit  -  2M Bronze (interchangeable with 2M Black and 2M Black LVB 250)

    2M Series interchangeability:
    The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
    - 2M Red, 2M Blue and 2M Silver
    - 2M Bronze, 2M Black and 2m Black LVB 250
    - 2M Mono and 2M 78

    Compatibility with Rega brand TT/TA:
    REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge. Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.
    3.2 - 4 mm spacers should be enough for 2M cartridge.
