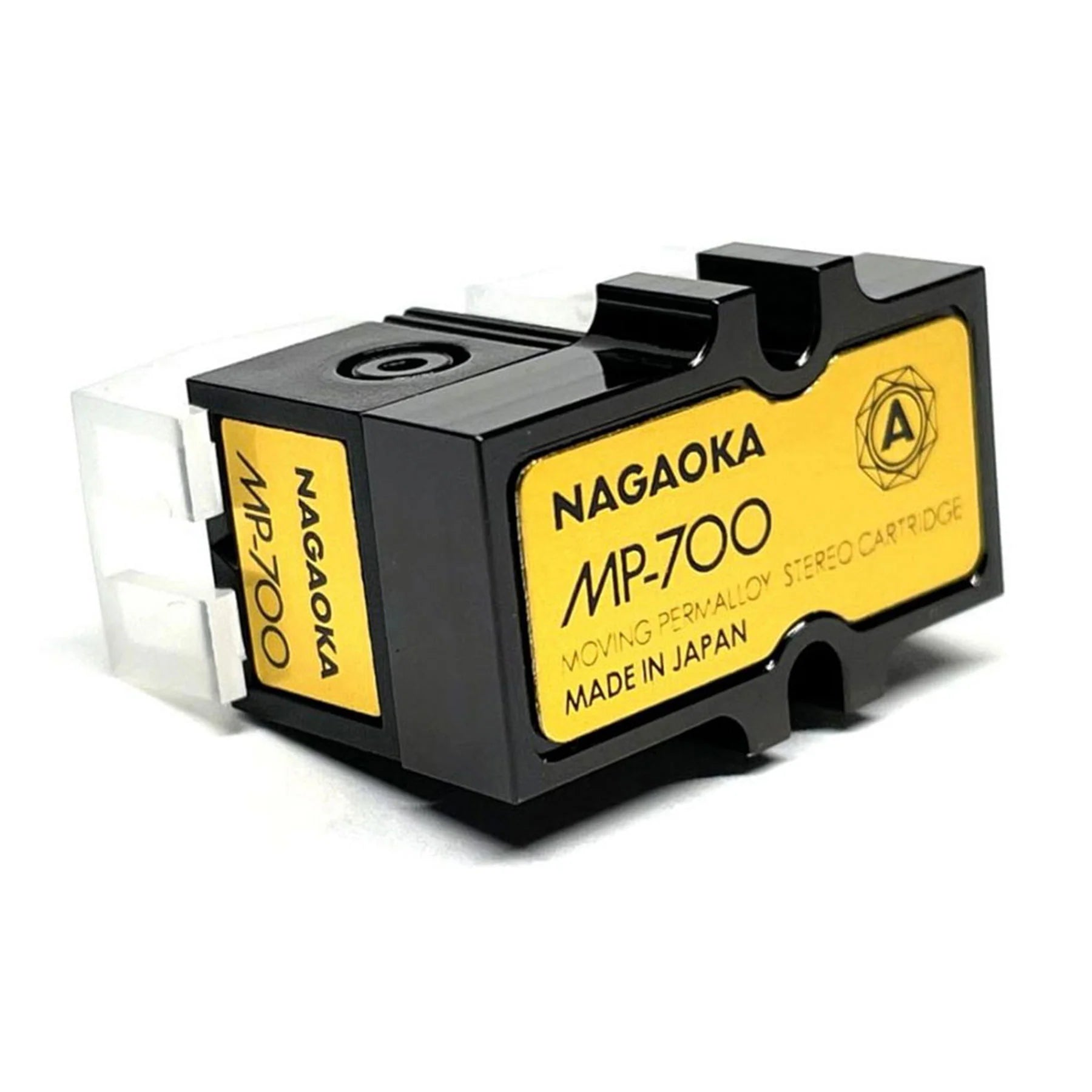

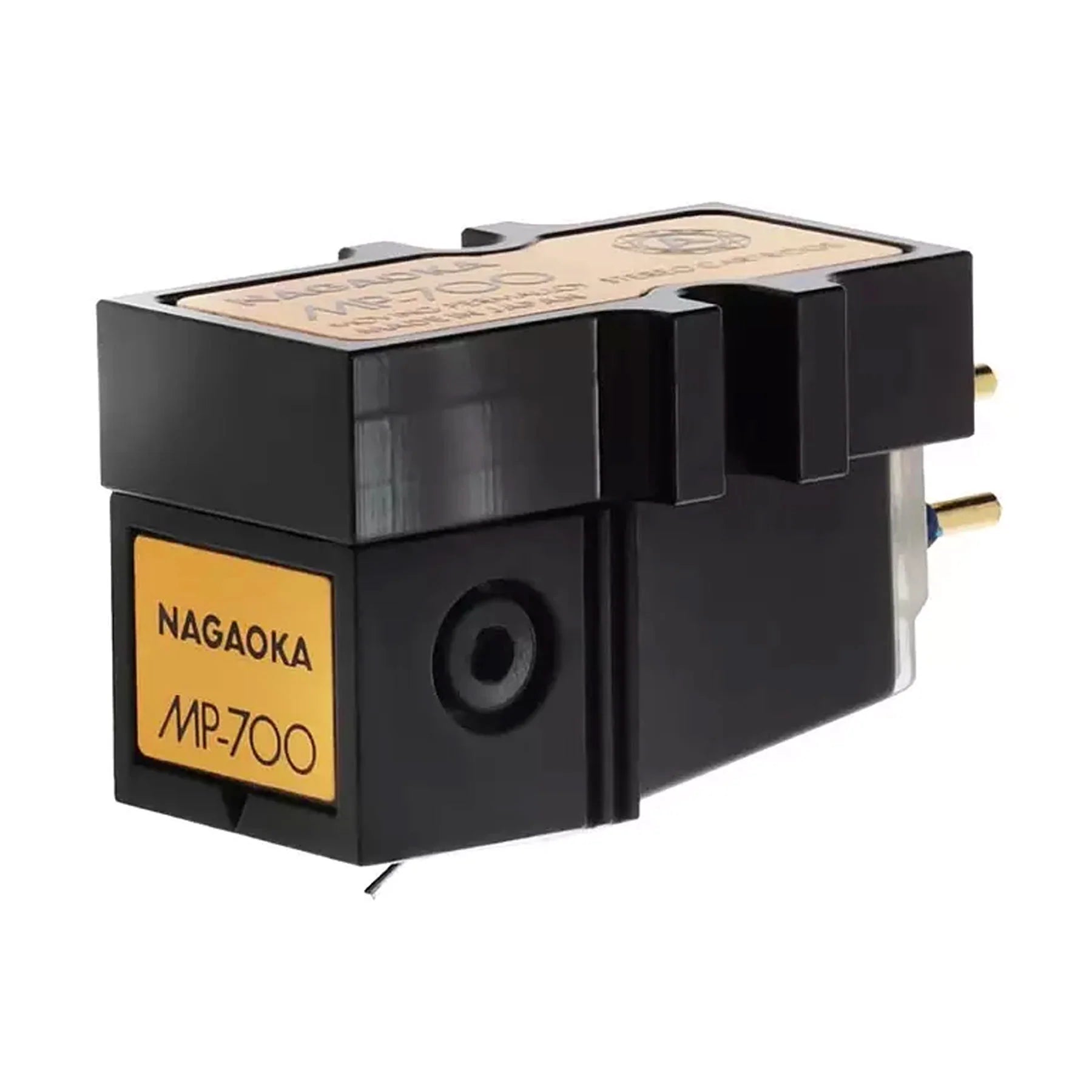

Boron Cantilever - Made in Japan
Natural, Musical, Reference
- cartridge type: moving magnet for hi-fi listening
- stylus shape: micro-ridge
- stylus construction: nude diamond
- cantilever material: boron
- output voltage: 4.0 mV
- frequency response: 20 Hz - 27 kHz
- channel separation: 30 dB
- tracking force: 1.4 g
- cartridge weight: 8.0 g
- replaceable stylus: yes
- upgradeable stylus: no
Founded in 1940 and originally starting out in precision watchmaking and clock parts, the company transitioned into micro-manufacturing jewels and diamond styli. They are an influential global supplier of leading audio brands.
Moving Permalloy (MP) System: Unlike typical Moving Magnet (MM) or Moving Coil (MC) designs, Nagaoka's signature MP series uses a lightweight piece of magnetized permalloy instead of a heavy magnet. This lowers the moving mass, allowing the stylus and cantilever to track record grooves with greater accuracy and clarity.
In-House Manufacturing: Nagaoka builds its parts—including diamond tips, cantilevers, coils, and magnets—entirely in-house.
Replaceable Stylus: Users can easily swap out worn or upgraded needle assemblies on the MP and JT series cartridges.
