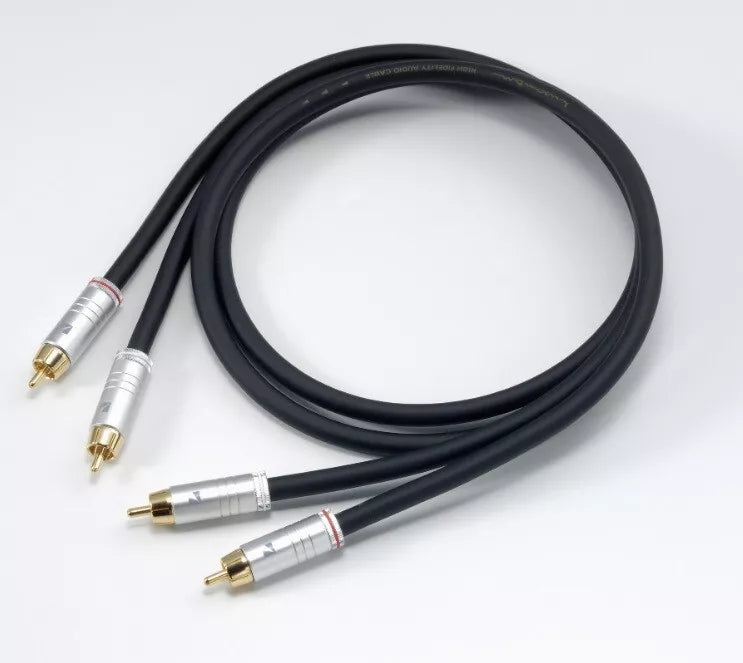

LUXMAN Reference Line Cable RCA 1.0m JPR-100 - pair
About JPR-100
The Reference Line Cable JP series uses high-purity oxygen-free copper (OFC) for the core wire and shield wire. By setting the core wire twist pitch to a gentle 90mm, natural and smooth signal transmission is achieved. In addition, the hot and cold of the transmission line have the same core structure, minimizing phase shift in the high frequency range. In addition, the core wire is taped with Japanese paper to prevent static electricity that affects sound quality. The plug part is compatible with two types of high-precision RCA pin plugs and XLR cannon plugs that promise stable installation, and the cable lengths are available in 1.0m and 1.5m.
Performance and Features
High-purity oxygen-free copper (OFC) wire is used for the core wire and shield wire.
The hot and cold of the transmission line have the same core structure to minimize phase shift in the high frequency range.
Core wire taping is used with Japanese paper that has an antistatic effect.
The structure is made of cotton thread that contains a lot of air between the insulated conductors to prevent an increase in electrostatic capacitance in the low range.
The twist pitch of the core wire is tuned to a gentle 90mm to achieve natural signal transmission without clogging.
Product Specifications
Cable length 1.0m (39.37in)
Configuration 2-core shielded, 90mm gentle twist structure
Core wire Oxygen-free copper (OFC) 0.18mm x 30
Insulation Foamed polypropylene (red, white)
Conductor twist pitch 90mm
Shield wire Oxygen-free copper (OFC) 0.12mm x 128
Sheath PVC (black)
Conductor resistance 26.4Ω/km or less (20℃)
Insulation resistance 1,000MΩ・km or more (20℃)
Capacitance 42pF/m or less
Voltage resistance AC500V (1 minute)
Cable outer diameter 8.0mm
