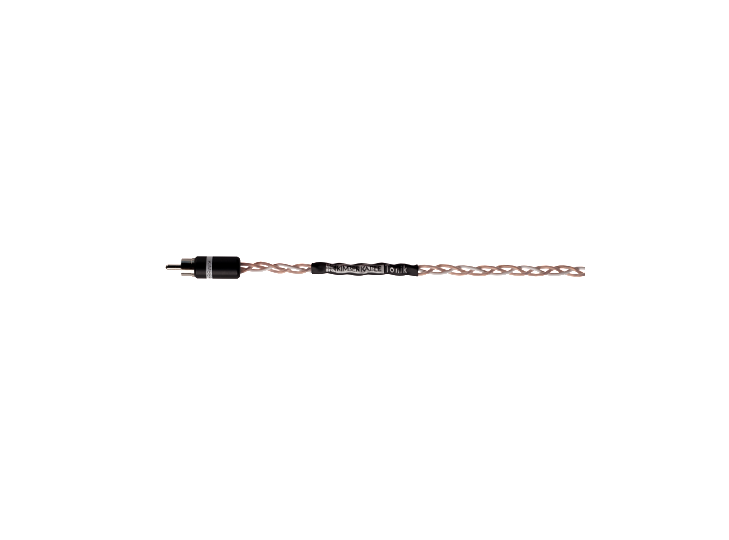

Kimber Kable Tonik Audio Interconnects - PAIR



Pin It

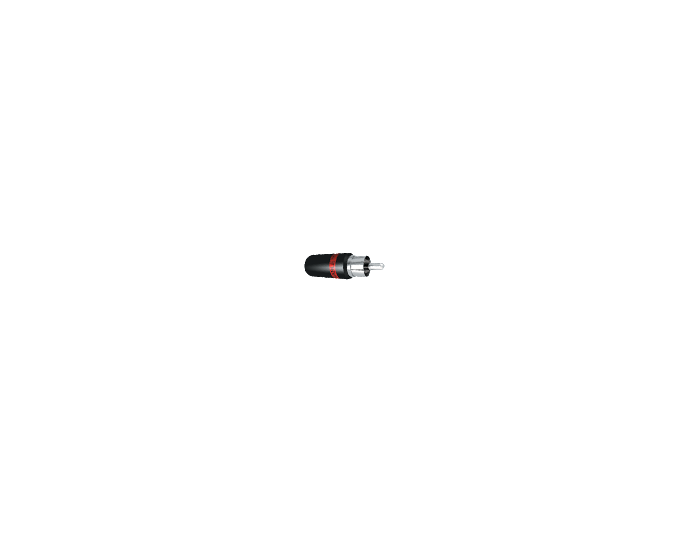

Like the first tone of a scale, the Tonik interconnect provides the foundation of truly accurate performance and value. Through the use of Kimber Kable's legendary tri-braid field geometry, VariStrand™, Ultrapure copper conductors and our special recipe PE dielectric, the Tonik allows music to flow with power, smoothness and harmonic richness. Tonik single-ended uses our Ultratike™ RCA type connector. Tonik balanced features "studio grade" XLR connectors with silver plated contacts.

Specifications:

  • DUT: Tonik 1m terminated with Ultratike RCA type connectors.
    • (Cp) parallel capacitance: 52.0 pF @ 20 kHz
    • (Ls) series inductance: 0.772 µH @ 20 kHz
    • (Rdc) dc loop resistance: 0.055 Ω
    • (Xt) total reactance: 0.098 Ω @ 20 kHz
    • Frequency response ± 0.5 dB dc - 2.8 MHz
  • DUT: Tonik 1m terminated with XLR type connectors.
    • (Cp) parallel capacitance: 43.9 pF @ 20 kHz
    • (Ls) series inductance: 1.05 µH @ 20 kHz
    • (Rdc) dc loop resistance: 0.0961 Ω
    • (Xt) total reactance: 0.131 Ω @ 20 kHz
    • Frequency response ± 0.5 dB dc - 2.8 MHz
