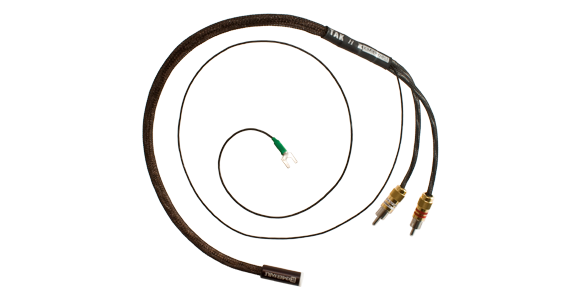

Kimber Kable Tak H Phono Cable



Pin It

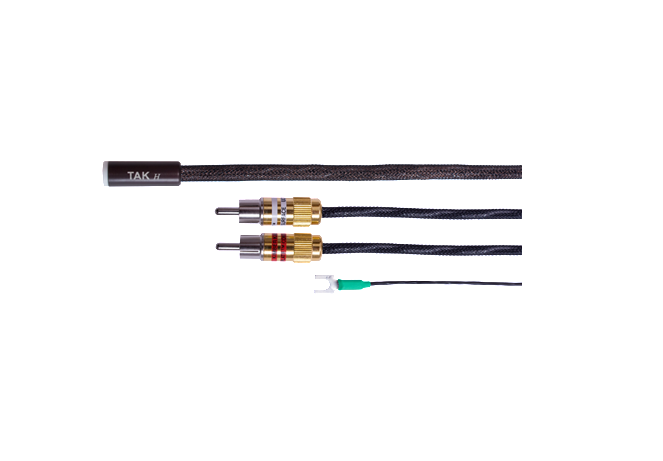

Kimber Kable understands that a turntable is an extension of the audiophile's commitment to musical enjoyment. TAK™ preserves all the precious detail that can be extracted from vinyl. OCQ/2™ (Orthogonal GyroQuadratic/2 channel) braiding virtually eliminates electromagnetic interference, radio frequency interference and crosstalk. Proprietary shielding material drastically reduces low frequency hum. Standard terminations are high quality 5-pin DIN to RCA or XLR. Other termination options are available on request.

Specifications:

  • DUT: TAK H 1m terminated with Ultraplate RCA type connectors.
    • (Cp) parallel capacitance: 46.9 pF @ 20 kHz
    • (Ls) series inductance: 0.901 µH @ 20 kHz
    • (Rdc) dc loop resistance: 0.105 Ω Ground/Shield: R: 0.061 Ω X: 0.310 Ω
    • (Xt) total reactance: 0.160 Ω @ 20 kHz
    • Cross Talk @ -60dB 150.0 kHz
    • Frequency response ± 0.5 dB dc - 8 MHz
