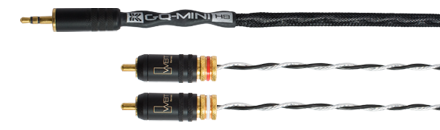

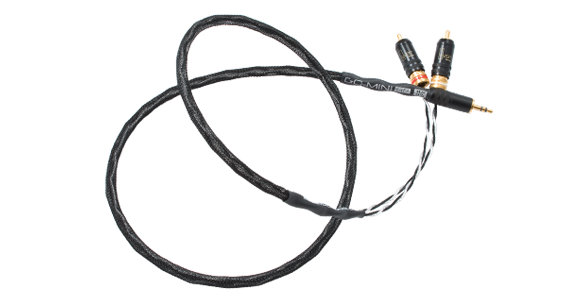

Kimber Kable GQ Mini HB

Pin It

Today's portable audio formats have definitely found their way into the world of traditional hi-fi. To facilitate the connection of an iPod®, MP3 player, satellite radio or even a computer to your home stereo system Kimber Kable developed the GQ Mini series of multi-purpose cables. The GQ Mini uses the advanced OGQ/2™ geometry (4-wire) braid which keeps the grunge (not the rock and roll type) away and the music powerful. Just connect the 1/8" (3.5mm) mini plug to your portable device (or computer) and the end with the stereo RCA connectors to your home stereo system.

The GQ Mini cable has the additional option of a mini plug on one end and another on the opposite.


  • DUT: GQ Mini HB 1m terminated with 1/8" mini standard plug and Ultraplate RCA type connectors.
    • (Cp) parallel capacitance: 58.0 pF @ 20 kHz
    • (Ls) series inductance: 0.81 µH @ 20 kHz
    • (Rdc) dc loop resistance: 0.087 Ω
    • (Xt) total reactance: 0.097 Ω @ 20 kHz
    • Crosstalk @ -60dB 150.0 kHz
    • Frequency response ± 0.5 dB dc - 8 MHz
