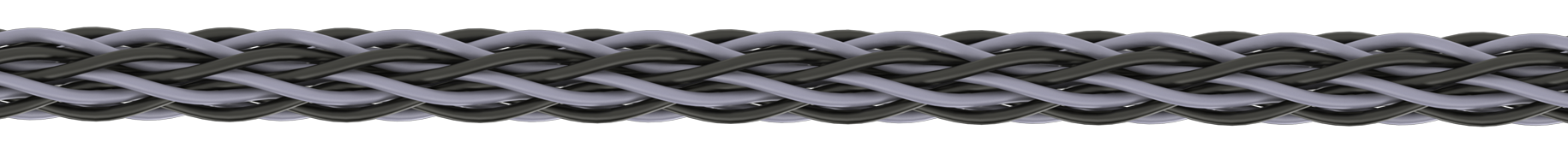

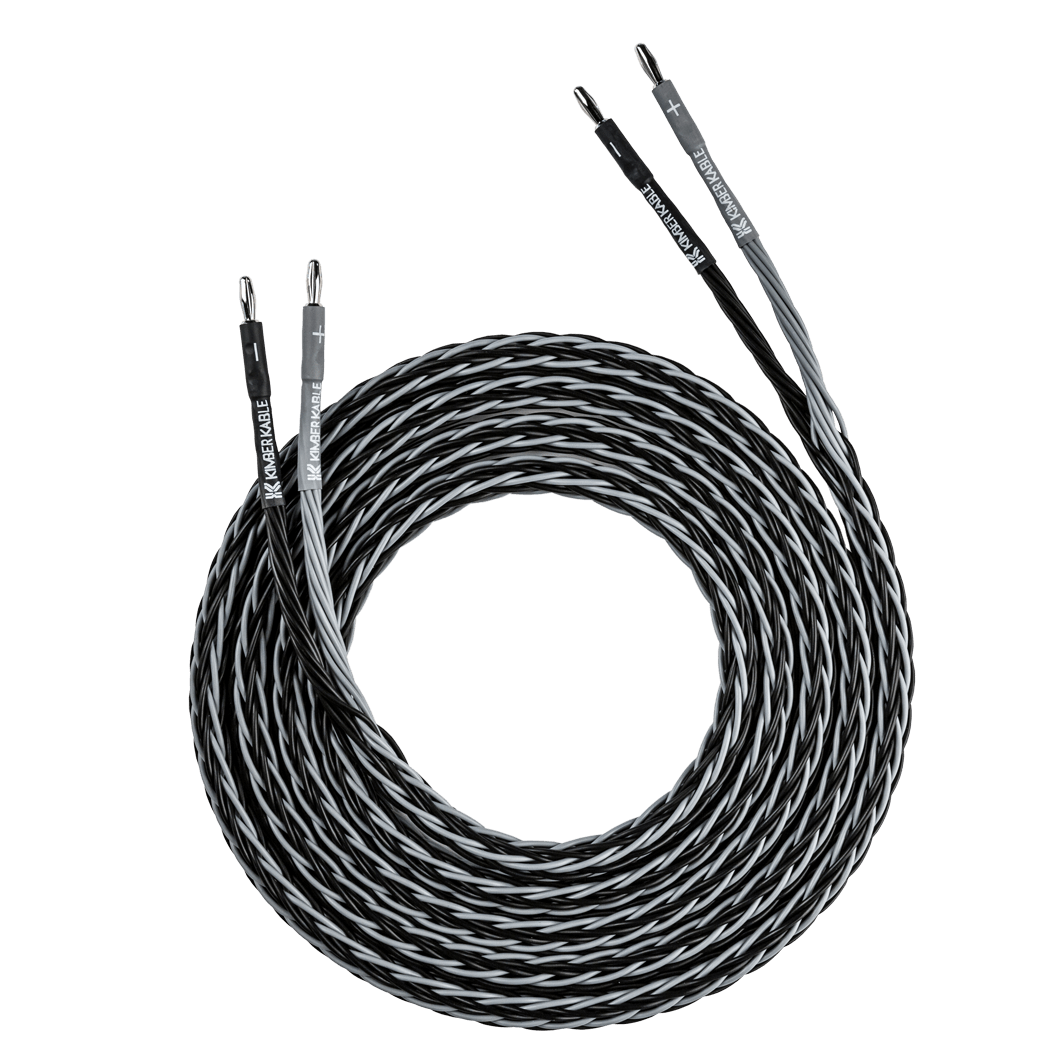

Kimber Kable 8VS is a high-current, 9 AWG (aggregate) braided loudspeaker cable using 16 strands of VariStrand copper, designed to offer neutral, low-loss, and reliable performance for medium-to-large audio systems. It features polyethylene insulation and a 16-wire counter-opposed helix design, ideal for driving full-range speakers.
Features:

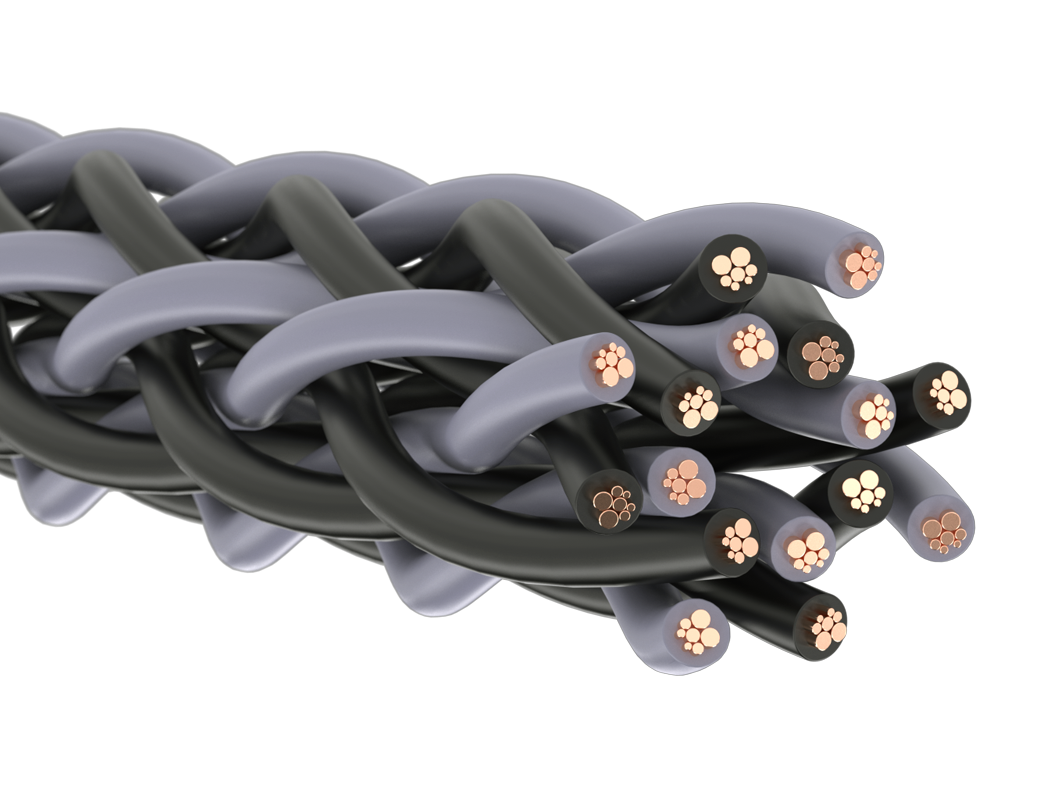

- 16 strands of 19.5 AWG OFC (oxygen free copper) copper. Counter opposed helix
- Aggregate combination of 8, 19.5AWG strands≈9AWG per +/- leg.
- Polyethylene dielectric. Black/Grey
- LOW series induction design: 0.12 uH / meter
- VariStrand copper conductors
- Nitrogen assisted hand soldered termination
Specifications:
- (Cp) parallel capacitance: 291 pF / meter
- (Ls) series inductance: 0.12 uH / meter
- (Rdc) dc loop resistance: 0.008 Ohm / meter
