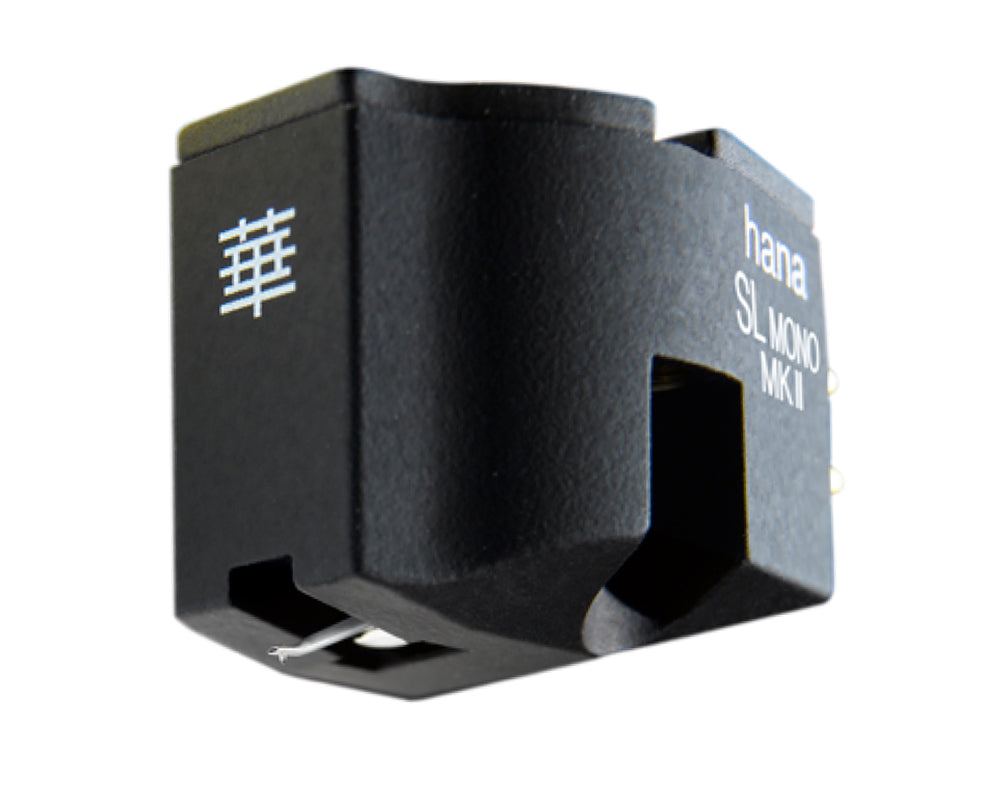

Hana SL Mono MK II Cartridge



Pin It
  • The MK II upgrade to our globally best-selling Hana S series cartridges enhances their musical performance and value. Master cartridge designer Masao Okada-san implements a new tapered Aluminum cantilever with increased rigidity, resulting in a remarkable improvement in transferring groove modulation from the vinyl record to the cartridge generator. The S Series Mk II cartridges feature higher specified parts, advanced materials, and unique technical processes from Hana’s higher-priced elite cartridge models, furthering the Hana “brilliant and gorgeous” sound.

    Hana S Series MK II cartridges use a new tapered aluminum cantilever with higher rigidity and effective mass reduction at the stylus tip. This results in greater clarity and increased music transfer from vinyl records to cartridge generator.

    Critical parts, including the Yoke, Pole-pieces, and gold Terminal pins, have been cryogenically treated for a more natural sound.

    The improved, non-resonant body shape, modeled after the Hana M Series, is damped with a matte Soft Feel Black elastomeric resin paint and features a brass cap with threaded cartridge mounting fittings. The heavier MK II cartridges offer better coupling and expanded compatibility with a wider range of tonearms, improving bass and dynamics.

    The SL MONO MK II two-coil design and unique Shibata diamond needle profile will ensure you get the best possible detail and accuracy from your mono records.

  • SPECIFICATIONS:
    Stylus Nude Diamond Shibata
    Stylus Shape 0.27x1.57mil
    Cantilever Tapered Aluminum
    Magnet Alnico
    Output Level 0.4mV/1KHz
    Output Balance <1.5dB/1KHZ
    Vertical Tracking Force 2 grams
    Trackability 70μm/2gr
    Frequency Response 15-32,000Hz
    Impedance 23Ω/1KHz
    Suggested Load Impedance ≥230Ω
    Cartridge Weight 8.6 grams
    Body Color Black
    Warranty 2 Years
