Dynaudio S4-DVC65 In-Ceiling Speaker - EACH

Pin It

    We designed the Dynaudio Custom family to be as easy as possible to install, to be as simple as possible to understand, and to be flexible enough to tailor to even the most challenging listening environment. How? By making it totally adjustable…

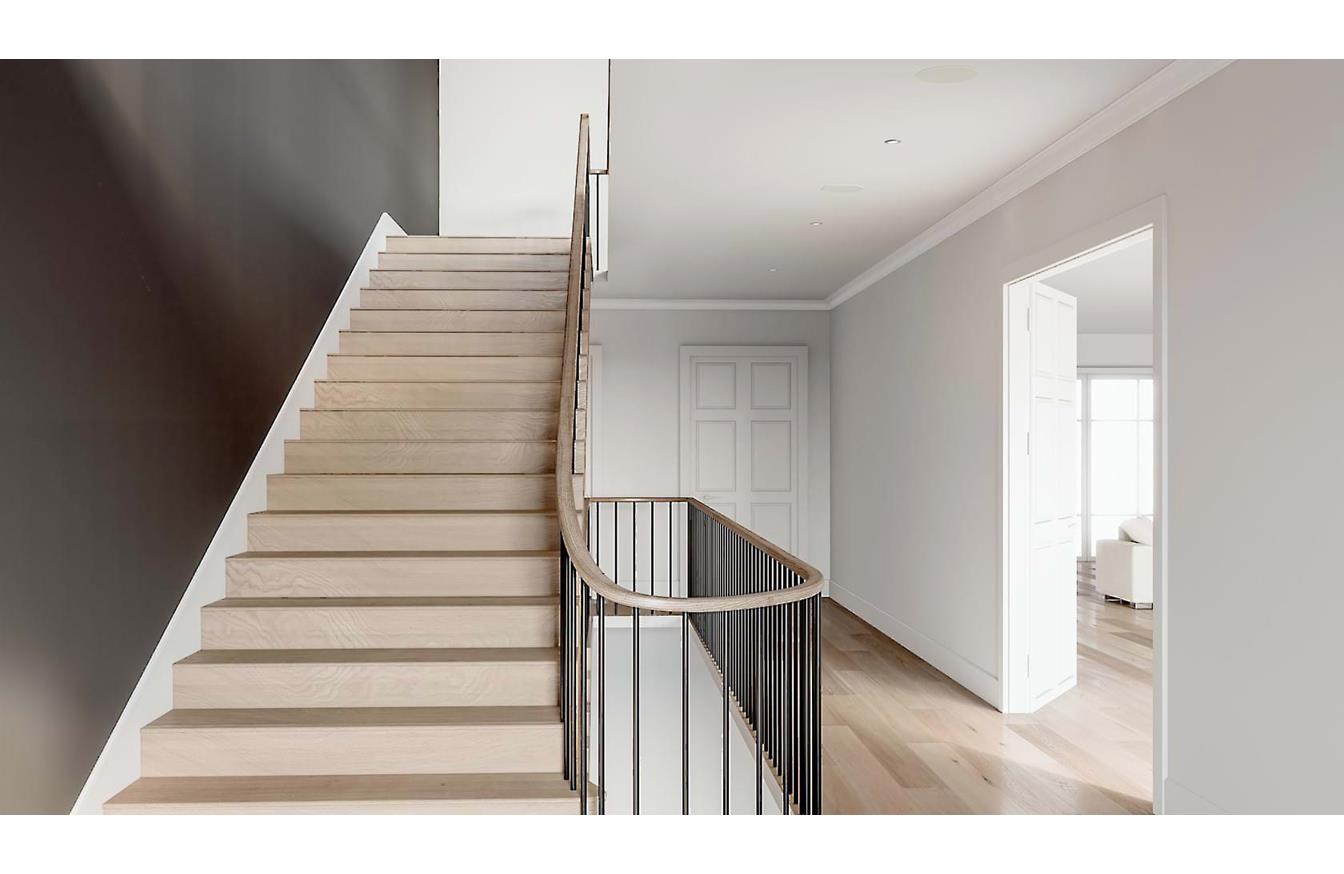

    The S4-DVC65 dual voice-coil in-ceiling speaker brings even more flexibility to the Dynaudio Custom Studio range. Its dual tweeters let you listen to either a mono or stereo signal from a single speaker unit – perfectly suited for hallways, closets, bathrooms and situations where you don’t have space for more than one speaker installation.

    Like the conventional Studio series round speaker units, the tweeters’ level can be adjusted. And because you can angle them, you can aim the sound exactly where you want. A separate switch on the back lets you use the speaker in dipole mode for surround applications.

    The added bonus? You get another stellar Dynaudio voice-coil – wound from aluminium rather than copper, for its superior power-handling, cooling and energy-transfer properties.


    The frames of our round in-ceiling speakers retrofit into many popular and existing cut-outs, while the patent-pending baffle latches mean super-quick, super-simple tool-free mounting.The main driver is angled 18˚ and can rotate 360˚ in its frame, while the tweeter can be positioned – and adjusted – for precise directional control. There’s also a tweeter-level switch for even more fine-tuning.

    The magnetically attached grilles can be painted to blend in with (or stand out from) the room’s décor, and can be used interchangeably with optional square versions to effortlessly integrate into any space.

    Like all the models in the Dynaudio Custom Studio range, they feature the same 1in soft-dome tweeter technology and proprietary MSP (Magnesium Silicate Polymer) woofer design that you’ll find in our cost-no-object Evidence Platinum flagship loudspeaker.


    Dynaudio has a repertoire of high-end, traditional "box" speakers for the home. But they also have cool "problem-solver" models too, like the in-ceiling S4-DVC65. This stereo-input speaker uses a dual-tweeter, dual-voice-coil design, so it can play both channels of a stereo signal all by itself.

    It's perfect for kitchens, small bedrooms, or any other room that you want music from a single in-ceiling location.

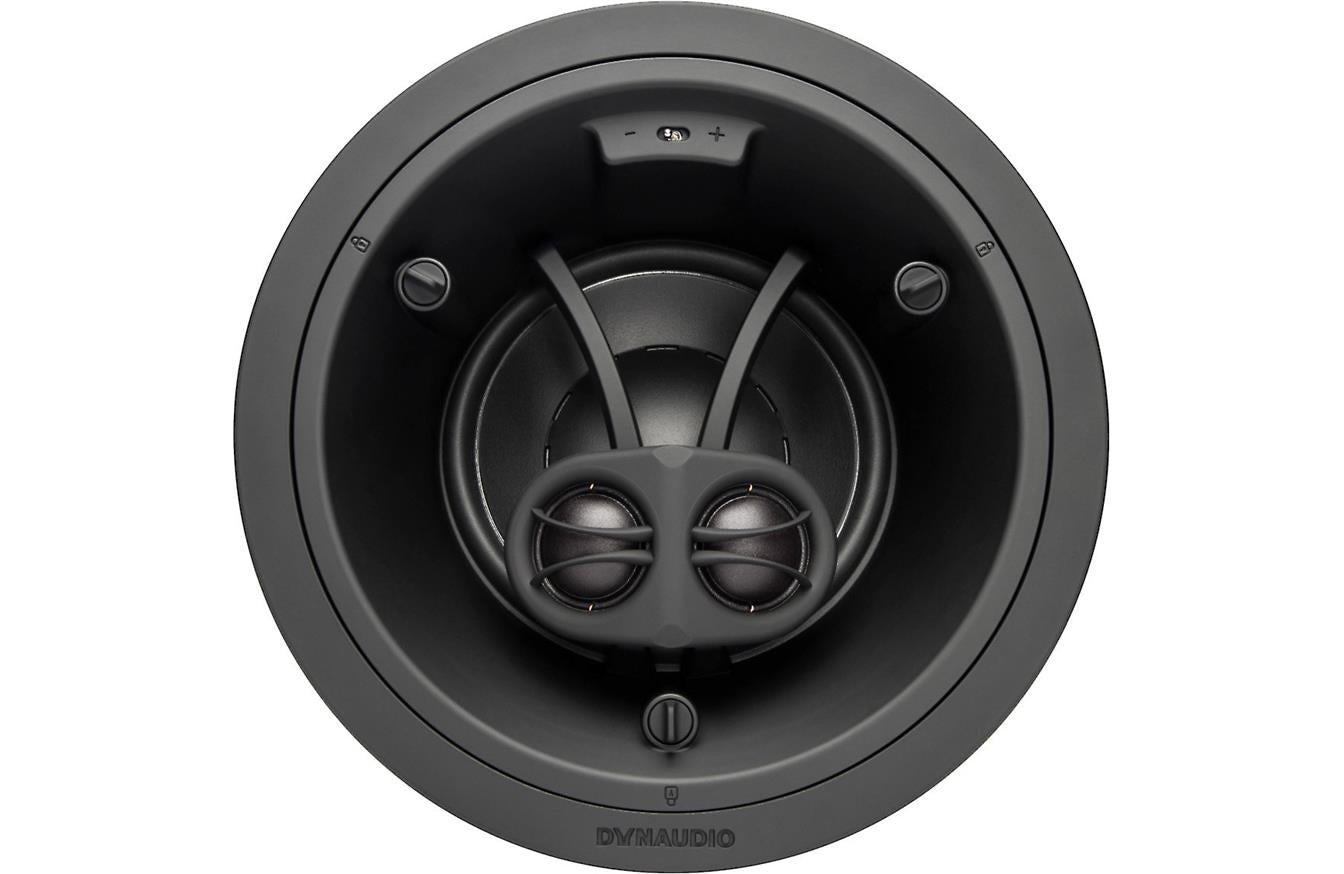

    The S4-DVC65's uses two 1-1/8" soft dome tweeters and Dynaudio's 6-1/2" MSP (Magnesium Silicate Polymer) woofer for natural, full-range sound. These drivers are angled at 18° — and each tweeter is independently adjustable — so you can aim them wherever you want for the best sound.

    You can also rotate this speaker 360° in its frame. If you rearrange your décor down the road, you can easily change the direction your speaker fires.


    The S4-DVC65 is most commonly used as a traditional stereo-input speaker for music. You can toggle between "stereo" and "mono" modes for system-building flexibility.

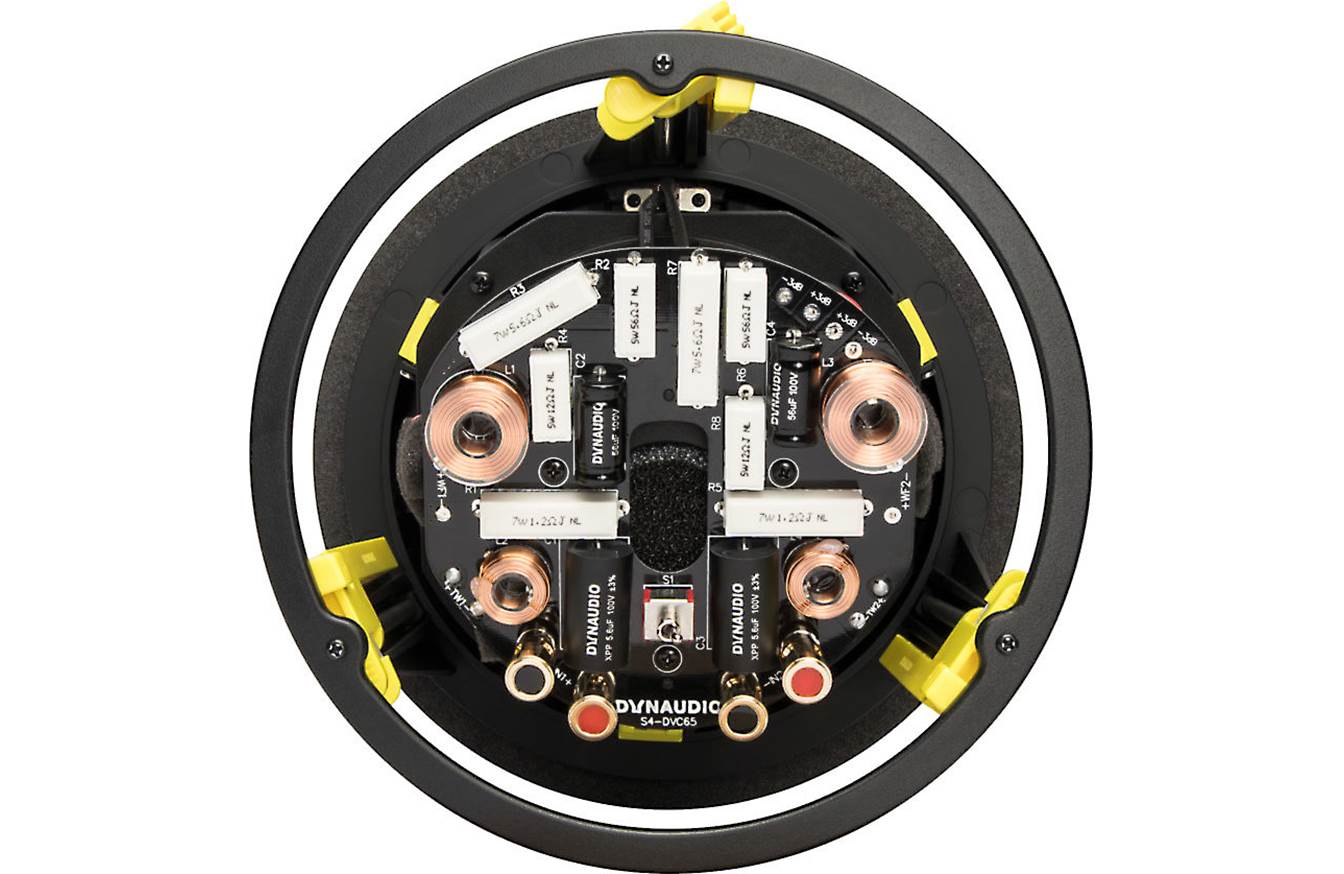

    There's also a rear-panel switch which lets you change it to "dipole mode" for use as a surround sound speaker. This setting puts the tweeters out of phase with each other, giving you a diffuse soundfield — perfect for immersive sound effects.

    • stereo-input speaker plays both the left and right channels of the stereo mix
    • rear-panel "dipole mode" switch for use as a surround sound speaker
    • 18°-angled drivers direct sound toward your listening position
    • speaker rotates 360° within its frame, allowing you to easily reposition it within your room
    • dual 1-1/8" soft dome tweeters
      • tweeters are aimable to direct high-frequency details towards you
      • two-position tweeter level control cuts high-frequency output to ideally suit your room's acoustics
      • stereo and mono modes allow for additional system flexibility
    • 6-1/2" MSP (Magnesium Silicate Polymer) cone woofer
    • frequency response: 50-20,000 Hz (±3dB)
    • sensitivity: 83.5 dB
    • impedance: 4 ohms nominal (each input)
    • recommended amplifier power: 50 watts each channel
    • unobtrusive frame and low-profile grille for discreet installation

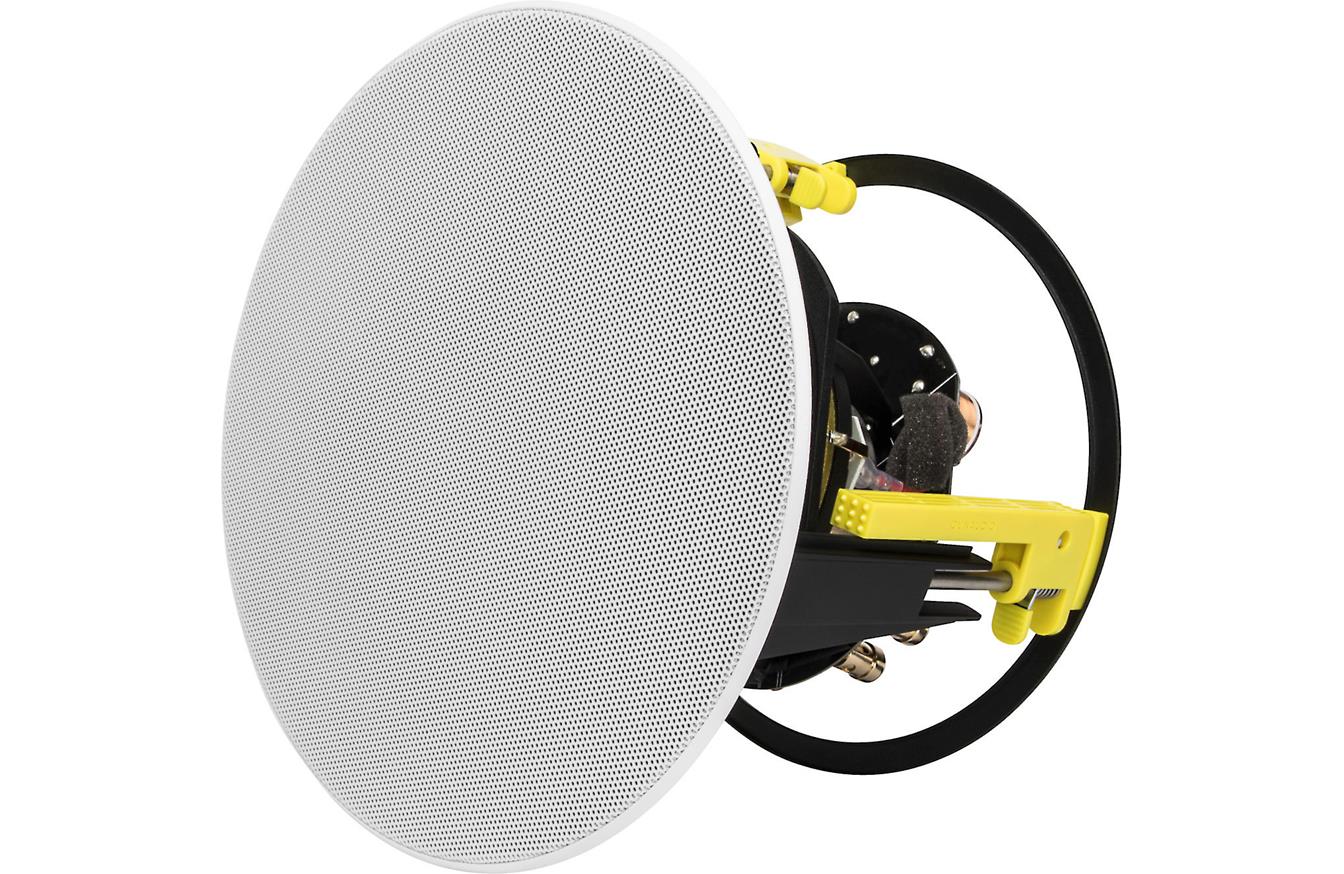

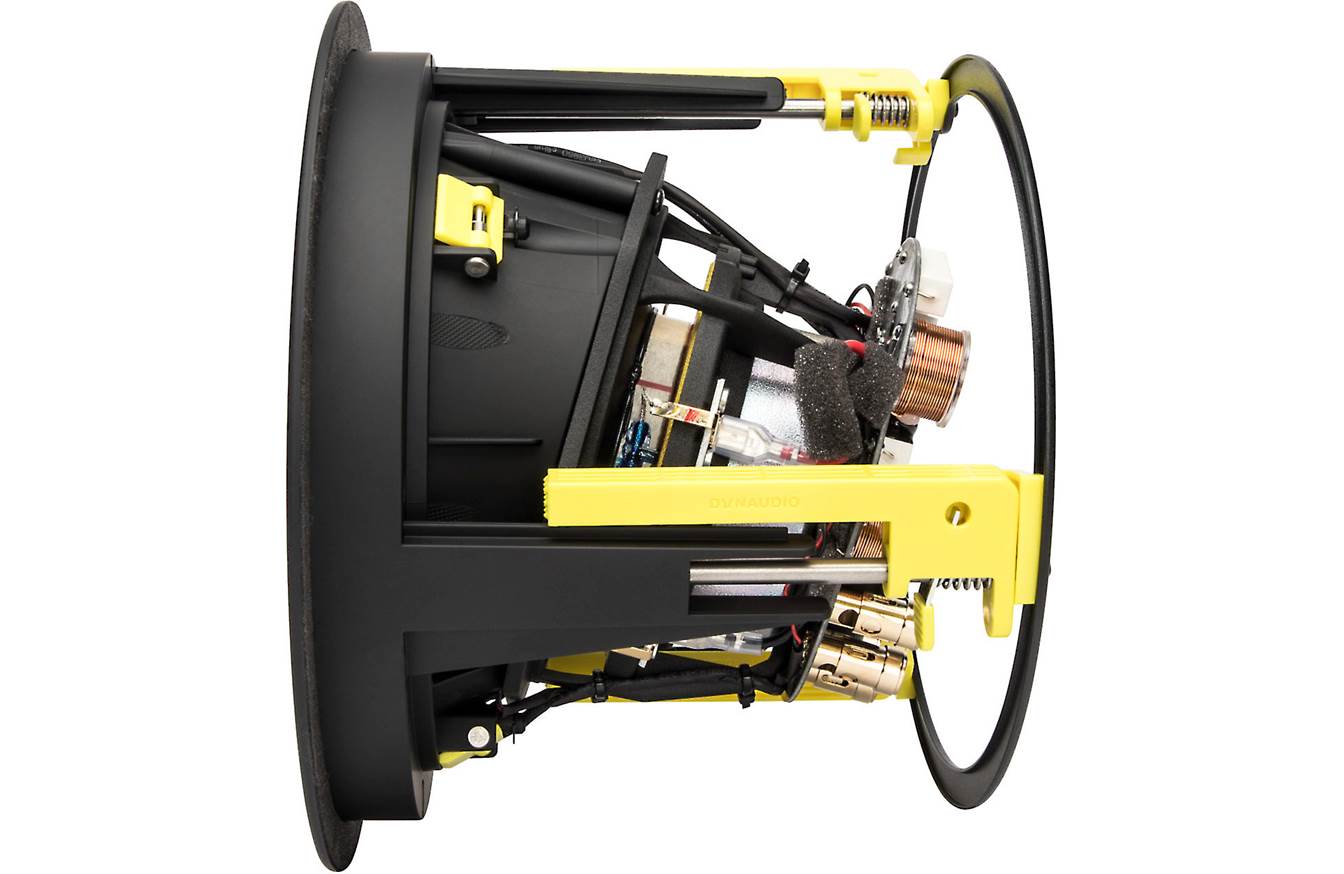

    • uniquely designed baffle latches offer quick and simple tool-free mounting

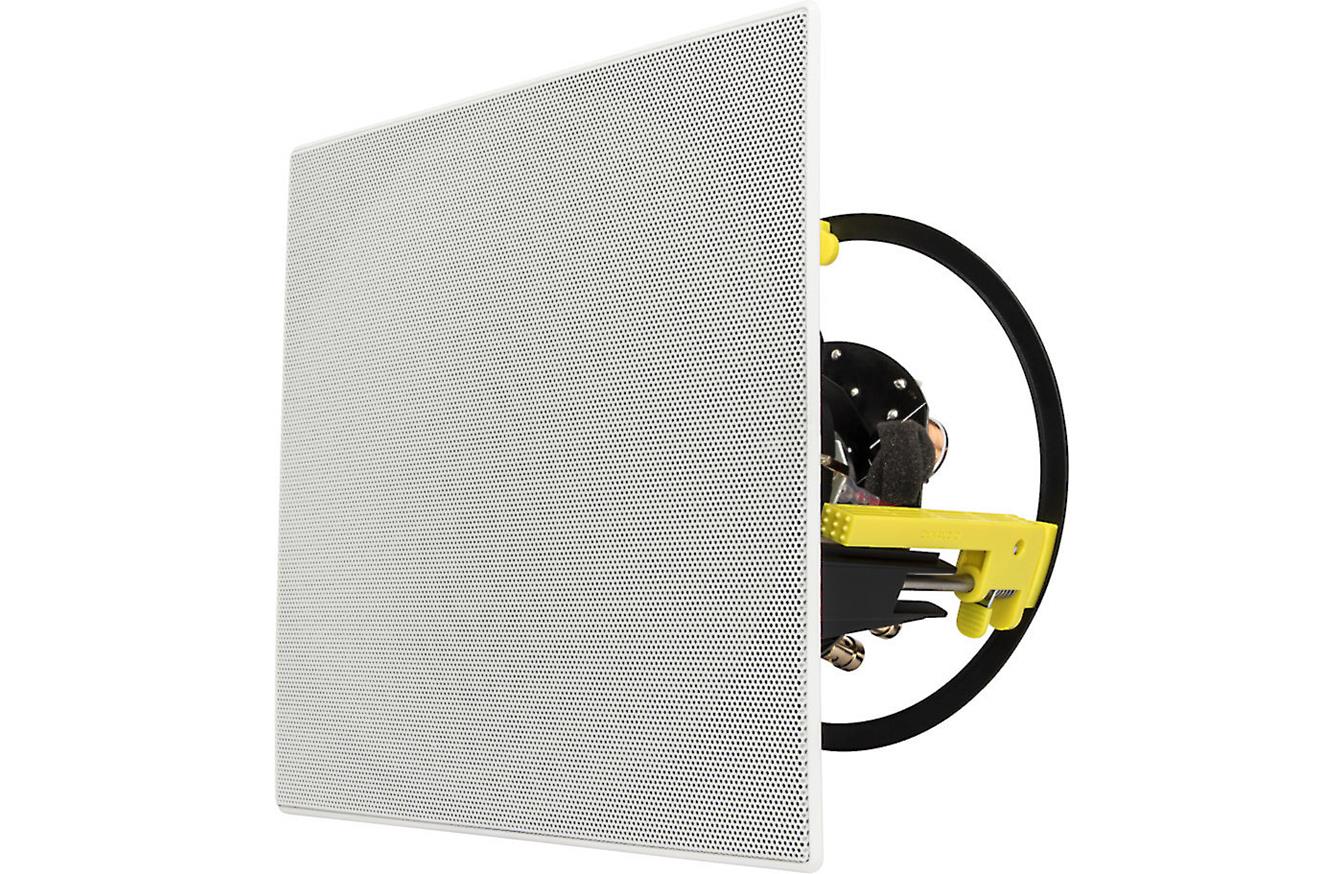

    • includes round and square paintable magnetic steel grilles
    • cutout diameter: 8-1/4"
    • mounting depth: 6-5/8"
    Type: 2-way in-ceiling
    Tweeter: 28mm (1in)
    Mid/bass: 165mm (6½in)
    Frequency response (±3dB): 50Hz–20kHz
    Impedance (nominal/minimum): 2 x 4Ω / 2 x 3.2Ω
    Sensitivity: 83.5dB
    Rated power: 2 x 50W
    Long term power: 2 x 100W
    Tweeter level options: -3dB, 0dB
    Tweeter orientation: Three tilt angles
    Mid/bass orientation: 18° x 360°
    Dimensions / Depth: Ø 232mm/ 167mm Ø 9 1/8 / 6 5/8in
    Cut-out dimensions: Ø 210mm 8 1/4in
    Grille material: Painted steel
    Grille options: Round (supplied) /square
    Grille attachment: Magnetic
    Grille finish: White (paintable)
    Certifications: CE
    Environmental: RoHS
