Dynaudio Confidence 20 Bookshelf Loudspeakers



Pin It
  • COMPACT SIZE. MASTERFUL PERFORMANCE

    We don’t think a speaker’s size should dictate how good it sounds… so we don’t let it.

    The compact Confidence 20 takes the performance, the passion and the power of the range’s larger speakers, and puts it on a stand.

    We’ve spent years looking at how we could improve on the previous range of Confidence speakers. And, after almost countless hours in design labs, our state-of-the-art Jupiter measuring facility, modelling and simulation suites – and, of course, listening rooms – we’ve done it.

    Like the rest of the range, the Confidence 20 features the all-new 28mm Esotar3 soft-dome tweeter, plus a new 18cm NeoTec MSP woofer and an innovative down-firing bass port. Its drivers feature cutting-edge developments in airflow technology (including a much larger rear chamber and optimised venting in the tweeter, plus the new resonance-stabilising Hexis inner dome); simulation-derived diaphragm thickness; super-powerful neodymium magnets; and the new Compex front baffle.

    The new 28mm Esotar3 soft-dome tweeter takes over 40 years of Dynaudio expertise, plus plenty of new learnings from the award-winning Esotar Forty unit – and rolls it all into the finest tweeter we’ve ever created. A powerful neodymium magnet system, innovations in airflow routing, the new resonance-busting Hexis inner dome… it all combines to increase detail, clarity and sensitivity.

    The new 18cm NeoTec MSP woofer also has neodymium under the hood, and uses glass-fibre in its voice-coil former for optimum stiffness. The voice-coil itself is aluminium, which lets us use the ideal weight (or lightness, depending on your point of view) for powerful and controlled bass as well as refined midrange. And the entire woofer motor has been designed to harness airflow using an innovative new venting system that’s been machined directly into the magnet.

    DESIGNED AND ENGINEERED IN DENMARK

    We put Confidence through intensive –and exhaustive –testing in the Jupiter measuring facility at Dynaudio Labs. Hundreds of hours of analysis and listening have resulted in the best speaker we’ve ever created.

    BRAND-NEW ESOTAR3 TWEETER

    The legend continues. The all-new Esotar3 is optimised for detail, finesse and performance. It includes the ingenious Hexis resonance-defeating inner dome, plus innovations in materials, airflow and more.

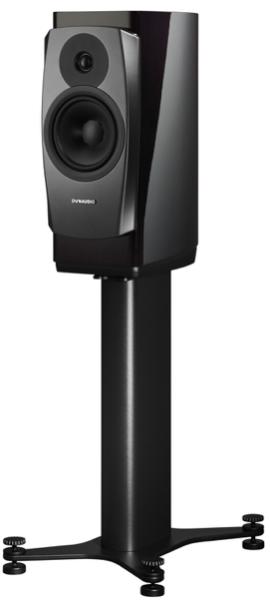

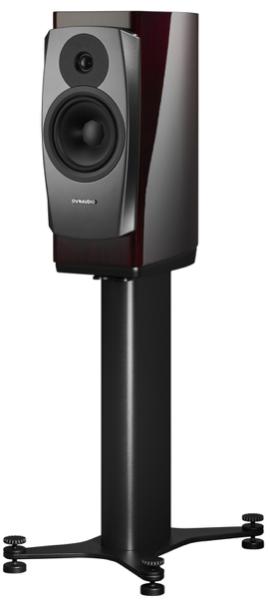

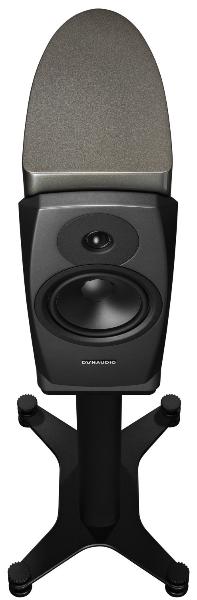

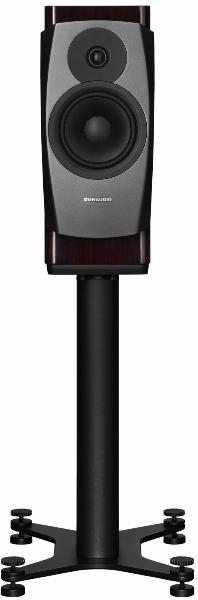

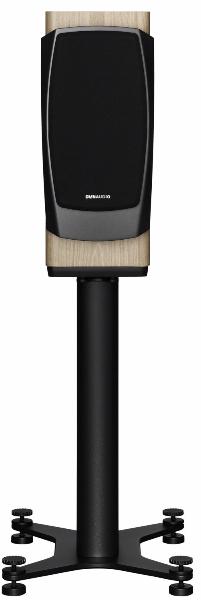

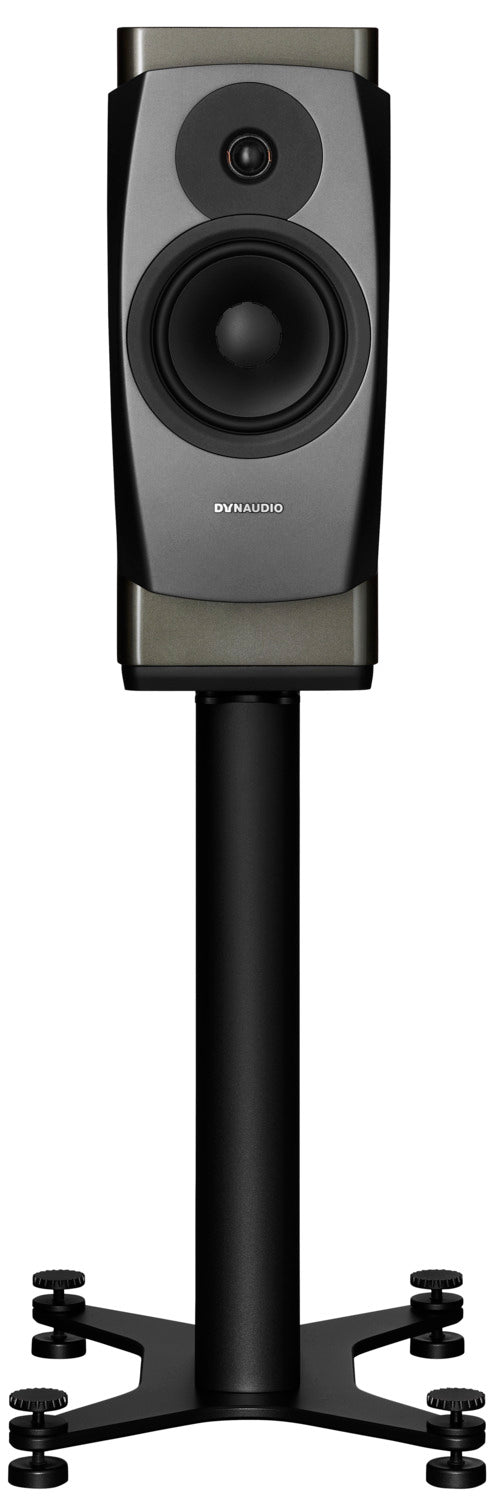

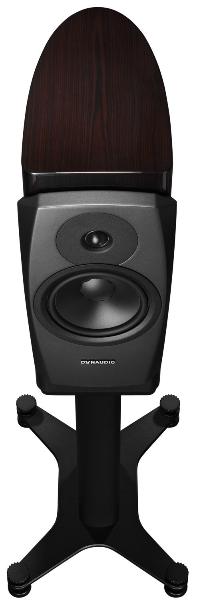

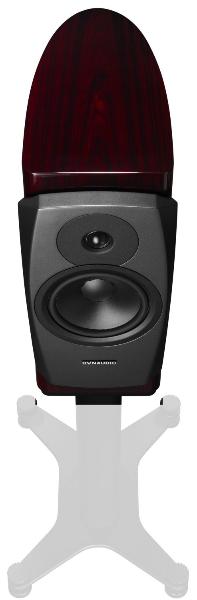

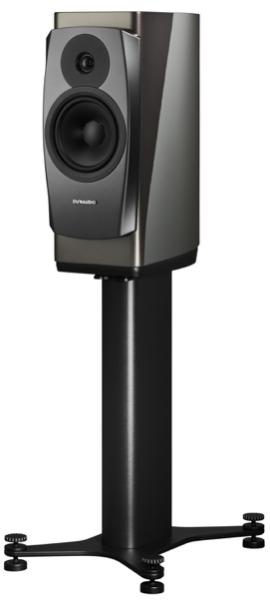

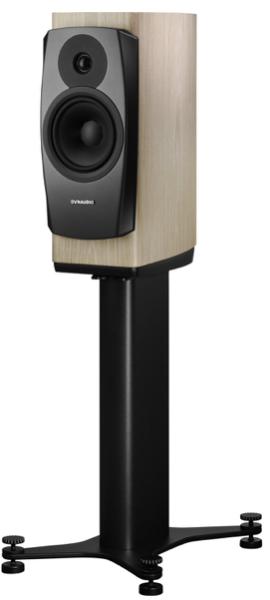

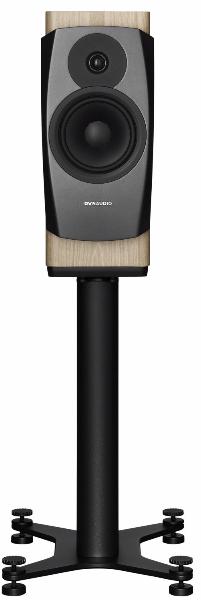

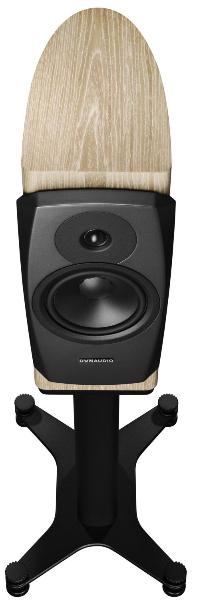

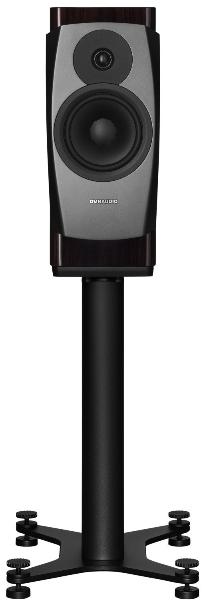

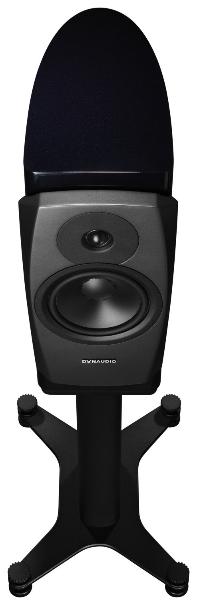

    Available in Midnight High Gloss, Smoke High Gloss, Raven Wood High Gloss, Ruby Wood High Gloss and Blonde Wood.

    WE REPRESENT THE SOUTHWEST USA
    PLEASE RESPECT YOUR LOCAL DEALER - AUTOMATED ORDERING UNAVAILABLE
    CALL TOLL FREE 855.991.8181 FOR PURCHASE ASSISTANCE
  • SPECIFICATIONS:

    Sensitivity: 87dB (2.83V / 1m)
    IEC power handling: 250W
    Impedance: 6 Ω (Minimum 5 Ω @ 155Hz)
    Frequency response (± 3 dB): 42Hz–22kHz
    Box Principle: Bass reflex down-firing port
    Crossover: 2 way
    Crossover frequency: 2325Hz
    Crossover topology: 2nd order
    Woofer: 18cm MSP
    Midrange: -
    Tweeter: 28 mm Esotar3

    Weight: 15.2 kg/33.5 lbs
    Weight including stand: 27 kg/59.6 lbs
    Dimensions (W x H x D): 223 x 520 x 414 mm
      8 25/32 x 20 15/32 x 16 19/64 Inches
    Dimensions with feet/grille (W x H x D): 223 x 520 x 444 mm
      8 25/32 x 20 15/32 x 17 31/64 Inches
    Dimensions including stand: 368 x 1134 x 458 mm
      14 1/2 x 44 5/8 x 18 inches
