NAD M10 V2 BluOS Streaming Amplifier - OPEN BOX



Pin It
  • Combining a sophisticated music streamer and powerful 100-watt-per-channel amplifier in one super-stylish component, the NAD M10 V2 BluOS Streaming Amplifier is made for the way people listen to music today. It is based on the BluOS multi-room music platform integrating support for dozens of streaming services. You queue up any music you want using the intuitive app, and hear it in high fidelity. The M10 V2 improves on its award-winning predecessor by adding a remote control, updated gain algorithms, and an easy upgrade path to Dolby Digital surround sound.

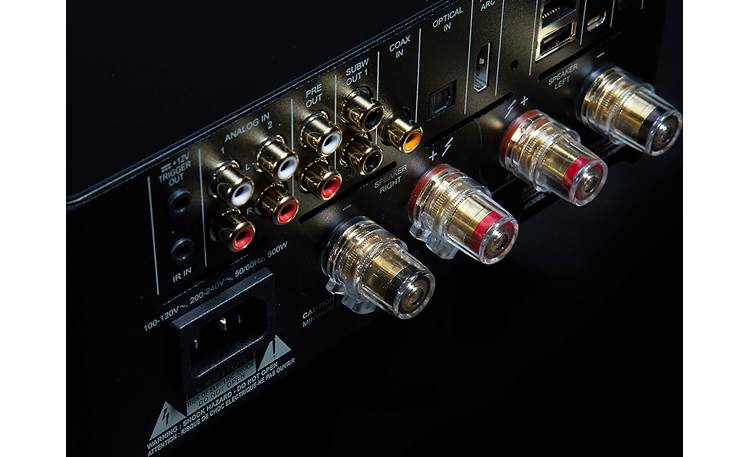

    Along with audiophile-grade speaker terminals, it has two independent subwoofer jacks, whose output settings are adjustable from the app. Home-theater fans can configure a pair of BluOS surround-enabled wireless speakers or amplifiers to play the surround channels, while the main speakers handle the front channels, so that the M10 serves as the hub of a 4.1- or 4.2-channel Dolby Digital surround setup. It transmits the rear channels wirelessly, with very low latency, so you don’t have to run wires to connect the surround speakers.

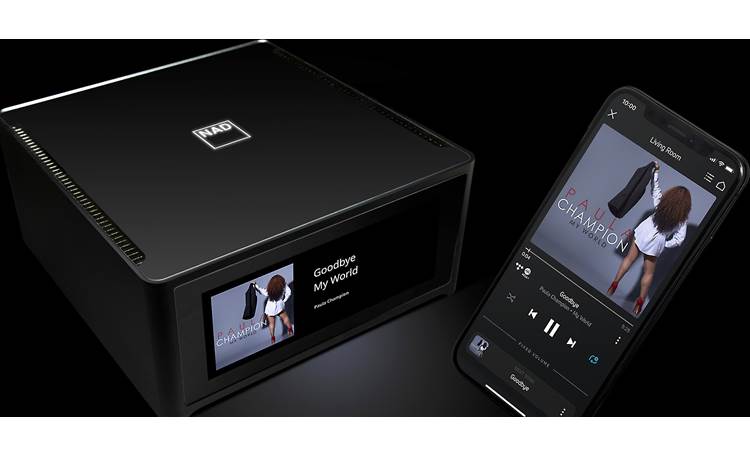

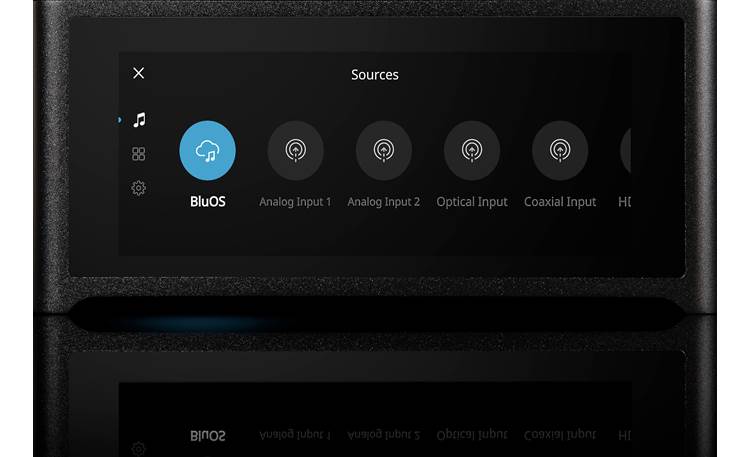

    Use the BluOS app on a smartphone, tablet, or computer to cue up music from your favorite streaming service, or music stored on USB and network drives. Stream music to the M10 V2 from an iPhone, iPad, or iTunes library via AirPlay 2. Select music by voice using the Amazon Alexa, Apple Siri, or Google Assistant voice protocol. You can also stream music from a Roon Core server. It can be integrated into Apple, Control4, Crestron, Lutron, and other home-automation systems, so you can control music playback, along with other home systems like lighting, shades, HVAC, and security. Use the supplied remote control to adjust volume, skip tracks, and activate preset commands. Or choose tracks, select sources, and adjust volume and other settings from the M10 V2’s touchscreen.

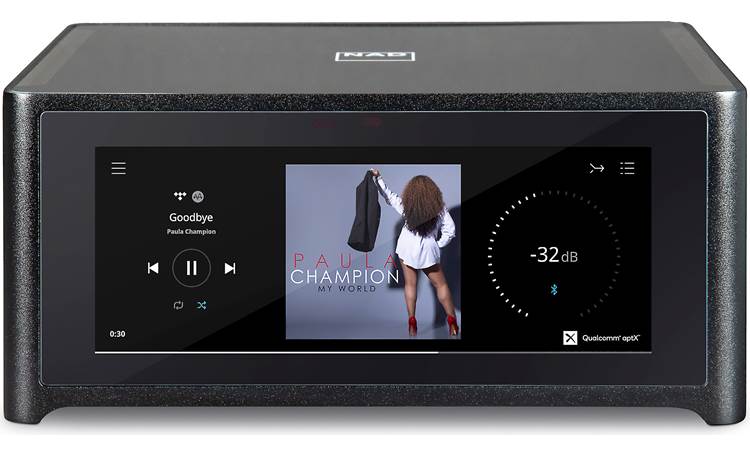

    The M10 V2 features a solid brushed aluminum chassis, Gorilla Glass top and front panels, and a bright 7″ touchscreen, with purer colors and wider viewing angle. Behind that display lies a sonic powerhouse that delivers thrilling dynamics and detail. Based on the renowned nCore technology, the amplifier is conservatively rated at 100 watts per channel. Its updated gain algorithms allow higher output levels with inefficient speakers. The subwoofer outputs also have higher gain, allowing for a wider range of subwoofer-main speaker combinations. The ESS Sabre DAC can accept streams up to 24-bit/192kHz. The M10 V2 can stream lossless and high-resolution audio from services such as Deezer, Qobuz, and Tidal; and has full MQA hardware decoding and rendering capability.

    The M10 V2 has built-in Dirac Live Room Correction. Using the supplied calibrated microphone and intuitive Dirac app, you can correct peaks and dips caused by your room’s acoustics, up to 500Hz. You hear movie soundtracks and music as they were meant to be heard, free of anomalies. The M10 V2 can store up to five Dirac profiles for different listening positions, surround setups, or room conditions—for example whether the drapes are open or closed.

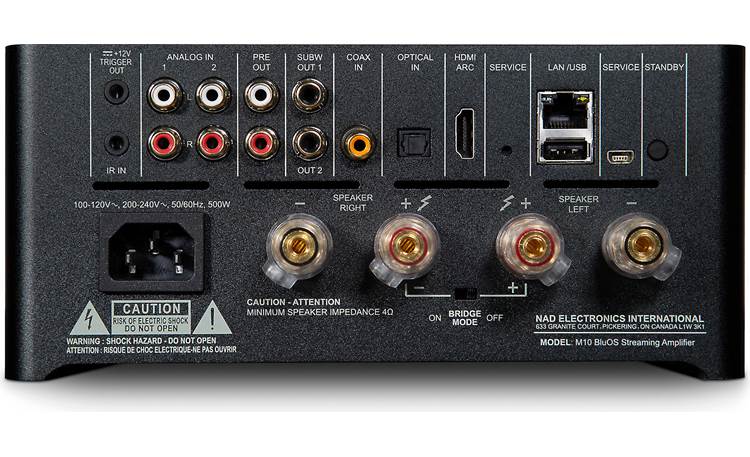

    The M10 V2 also has RCA analog, optical and coaxial digital, HDMI eARC, and USB Type A inputs, for connecting disc players, game consoles, external drives, media adapters, flat-panel displays, and other components. It also features two-way apt-X HD Bluetooth. You can listen through wireless headphones, stereo loudspeakers, a surround-sound setup, or up to 63 BluOS-capable wireless speakers arrayed throughout your home.

  • FEATURES
    • Wireless 4.0, 4.1 and 4.2 channel surround options
    • Hybrid Digital nCore Amplifier with updated gain algorithms
    • Continuous Power: 100W into 8/4 Ohms
    • Dynamic Power: 160W into 8 Ohms 300W into 4 Ohms
    • 32-bit/384kHz ESS Sabre DAC
    • Dirac Live Room Correction
    • 7″ IPS color LCD touchscreen
    • BluOS multi-room compatible
    • AirPlay 2 integration, with support for Siri Voice Assistant
    • Amazon Alexa & Google Assistant voice control skills
    • Roon Ready
    • Gigabit Ethernet
    • Two-way Qualcomm aptX HD Bluetooth
    • NFC Bluetooth pairing for compatible smart devices
    • HDMI eARC,USB Type A inputs
    • Stereo line analog and coaxial/optical digital inputs
    • Preamp output, two independent subwoofer outputs with updated gain algorithms
    • IR Input, 12V Trigger Out
    • Apps for iOS, Android, macOS, Windows, Crestron, Control4, RTI, URC, Elan, Lutron, iPort
    • Wide variety of premium music services supported in BluOS app, including Amazon, Spotify, Tidal, TuneIn, Napster, Deezer, Qobuz and many others
    • Support for all major lossless and lossy formats, including WAV, FLAC, AIFF, ALAC, AAC, MP3, Ogg Vorbis, and others
    • MQA decoding and rendering
    • Infrared remote control included
  • SPECIFICATIONS:
    AMPLIFIER SECTION
    • LINE INPUT, SPEAKER OUT
    • Continuous output power into 8 ohms and 4 ohms
      • >100W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
    • THD (20 Hz – 20 kHz)
      • <0.03 % (250 mW to 100 W, 8 ohms and 4 ohms)
    • Signal-to-Noise Ratio
      • >85.1 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
    • Clipping power
      • >130 W (at 1 kHz 8 ohms 0.1 % THD)
      • >230 W (at 1 kHz 4 ohms 0.1 % THD)
    • IHF dynamic power
      • 8 ohms: 160 W
      • 4 ohms: 300 W
    • Damping factor
      • >190 (ref. 8 ohms, 20Hz to 6.5kHz)
    • Frequency response
      • ±0.6 dB (20 Hz – 20 kHz)

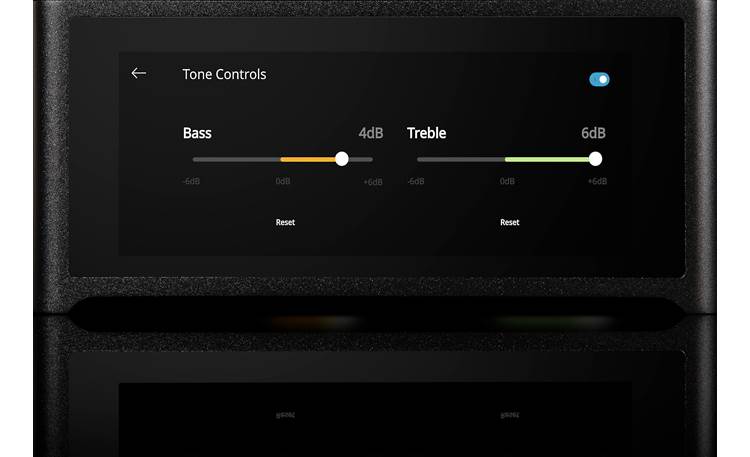

    • Tone controls
      • Treble: ±6.0 dB at 20 kHz
      • Bass: ±6.0dB at 60 Hz
    • Channel separation
      • >83 dB (1 kHz)
      • >70.5 dB (10 kHz)
    • Input sensitivity (for 100 W in 8 ohms)
      • Line In: 456 mV
      • Digital In: -13.23 %FS
    • Standby power
      • <0.5W
    DAC SECTION
    • ESS Sabre 9028 DAC
    • Supported audio formats
      • MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
    • Hi-Resolution audio formats
      • MQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only)
    • Sampling rate
      • up to 32 bit/192 kHz PCM
    • Bit depths
      • 16 – 24
    BLUOS SECTION
    • Supported operating systems
      • Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and Mac OS X versions
    • User interface mobile operating system
      • BluOS – Free Android and iOS App
      DIMENSION AND WEIGHT
      • Dimensions (WxHxD)
        • 8 1/2 x 3 15/16 x 10 1/4 inches
      • Weight
        • 11 lbs
