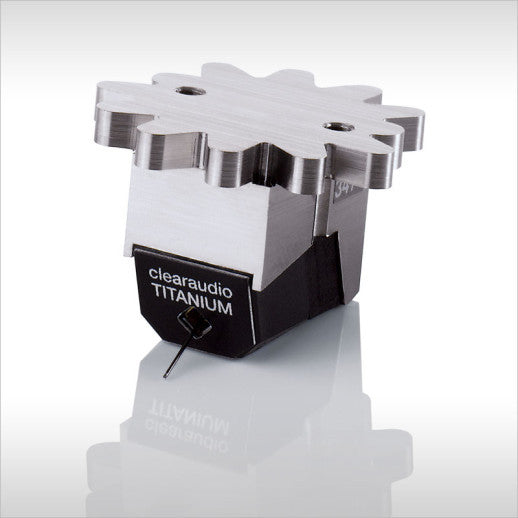

Clearaudio Titanium V2 MC Phono Cartridge

Pin It

Clearaudio has significantly improved their fully symmetrical moving coil phono cartridge design, first patented in 1980.

They redesigned the generator in a revolutionary way by positioning and doubling the magnets (to 8 pieces) so the coils are operating in a much stronger magnetic field. Furthermore, they have chosen the strongest magnetic material available: super neodymium. Through these achievements, the efficiency has been raised by 30%, which results in an output of up to 0.9 mV at 5cm/sec. All models now utilize the improved V2 generator.

The Titanium V2 is made from Titanium. The generator construction is mechanically, magnetically and electrically absolutely symmetrical - Clearaudio's unique design is like no other. The moving coils are 24 ct. pure gold coils.

  • “… tracks beautifully… added new layers of musical detail to my front-end setup…” –  Jonathan Valin, The Absolute Sound
  • Editors Choice Award - The Absolute Sound

The new Micro-HD Diamond tip provides a hybrid parabolic geometry with a stylus radii of 0.008mm x 0.040mm. The total mass (0.00016 grams) is a fifth of the previous diamond stylus.

Cartridge body resonances, while tracking in the groove, are minimized through the twelve-finger design of the mounting plate, each finger with a different radius. This is the result of our constant research and development.

The v2 moving coil cartridge bodies of the Clearaudio models (Talismann v2 Gold, Concerto v2, Stradivari v2, da Vinci v2, Titanium v2) are made out of the following: titanium, ceramic coated aluminum, Ebony and Satinee wood. The generator construction of the new v2 moving coil cartridge generation is absolutely symmetrical: mechanically, magnetically and electrically, our unique design. All Clearaudio moving coils use their proven 24-karat pure gold coils.

A clear breakthrough in analog music reproduction has been achieved with this new moving coil v2 cartridge generation. The new generation is able to reproduce a dynamic range of 100 dB with a frequency response of 10 Hz up to 100KHz.

Technical Data:

  • Total mass: 9.0 g
  • Frequency response: 20 Hz - 100 kHz
  • Stylus shape: Micro HD
  • Cantilever: Boron
  • Coil assembly: Absolutely symmetrical design
  • Coil material: Gold 24 K
  • Compliance: 15/15 µ/mN
  • Recommended tracking force: 2.8 g
  • Crosstalk: > 40 dB
  • Channel difference: < 0.3 dB
  • Output voltage: 0.3 mV at 5 cm/s
  • Cartridge Impedance: 30 Ohm
  • Cartridge body: Titanium
  • Warranty: 2 years
