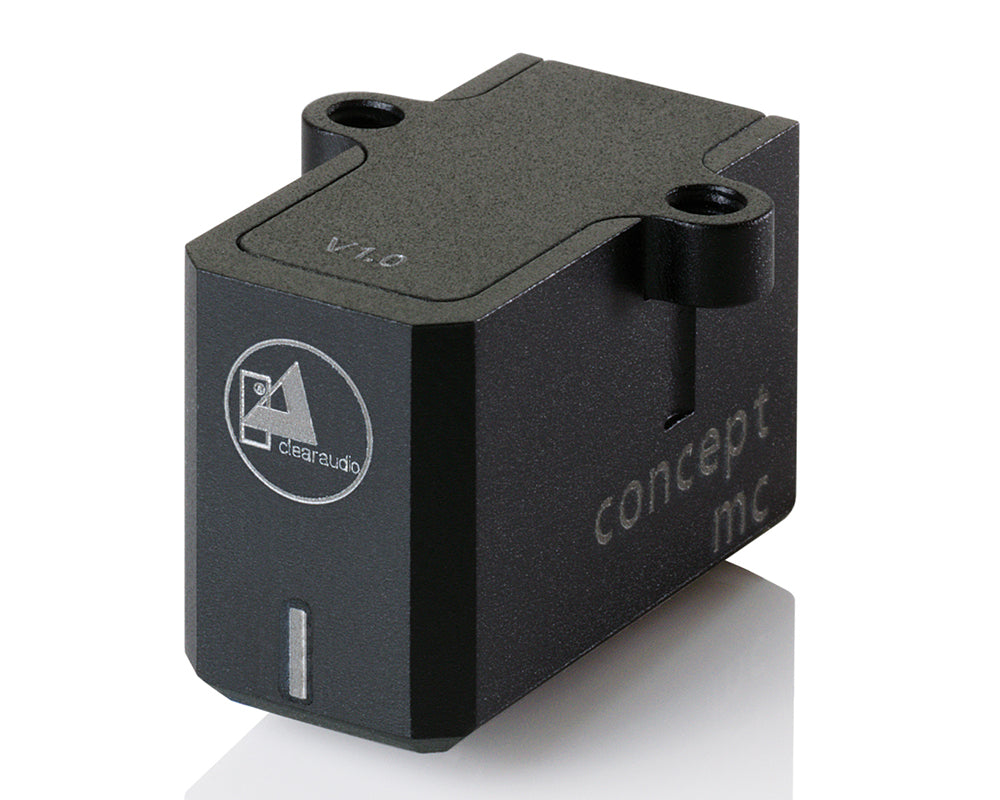

Clearaudio Concept V2 MC Phono Cartridge



Pin It

The concept mc and concept mc Signature combines high-quality moving coil technology with a minimalist design.

Here, audiophile explorers discover what the optimisation of magnetic circuits can deliver: This cartridge releases crystal clear sounds and represents nothing less than a revolution in it‘s class.

Equipped with a boron cantilever, the concept mc and concept mc Signature has channel matching to within half a decibel, 11 ohms internal impedance and is fitted with a Micro line stylus – features normally unheard of in this price range.

All of which adds up to make this high-quality cartridge a bargain for the cost-conscious high-end fan.

Specifications:
TOTAL MASS: 8.0g
FREQUENCY RESPONSE: 20Hz – 20kHz
OUTPUT VOLTAGE (AT 5 CM/SEC): 0.4mV
CHANNEL SEPARATION: > 28dB
CHANNEL BALANCE: < 0.5dB
TRACKING ABILITY: 80μm
RECOMMENDED TRACKING FORCE: 2.2g (± 0.2g)
CARTRIDGE IMPEDANCE: 11Ω
CANTILEVER / STYLUS SHAPE: Boron / Micro Line
COMPLIANCE: 9μ/mN
COIL ASSEMBLY:
COIL MATERIA:L OFC - copper
CARTRIDGE BODY: Aluminium-magnesium alloy with ceramic surface layer
MANUFACTURER’S WARRANTY 2 years*
