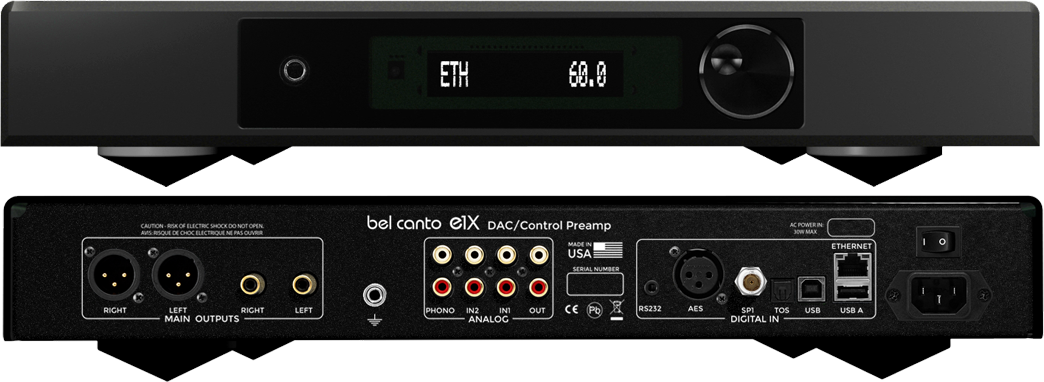

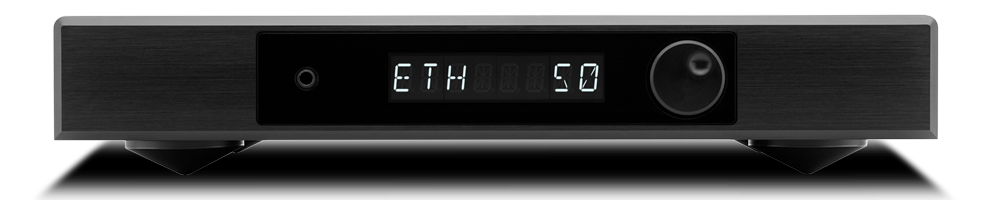

Bel Canto e1X DAC/Control Preamp



Pin It
  • Bel Canto e1X DAC/Control Preamp

    The new e1X line incorporates many ground-breaking designs from the Black series. Each e1X component is designed with great attention to detail, focusing on our unique input approach and DAC core performance  that optimize and maintain the purest signal quality. Built in a constrained layer damped chassis with high-grade aluminium defines the simple and elegant look.

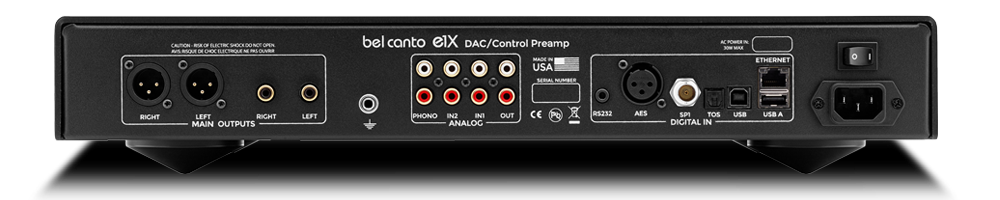

    The new e1X DAC/Control Preamp, based around our High Dynamic Resolution HDR-II core and high-speed Asynchronous Multi-Input Processor (AMiP) platform is our most versatile DAC preamplifier. Stream music through Ethernet or USB, a full suite of digital inputs, line level inputs, sub output and MM/MC software controlled analog phono stage.

    Features include software controlled Trim, Bass EQ, and subwoofer filter management. Roon Ready or DLNA control with Bel Canto SEEK iOS APP to stream Tidal/MQA, Qobuz or your personal library.

  • Features:
    • Maximum Data Input Rates : 24bit Data to 192ks/s:
    • AES, SPDIF, TOSLINK 24bit Data to 192ks/s, MQA, and DSD64:
    • 10/100 Ethernet 24bits to 384ks/s, MQA, and DSD64/128 (DoP): USB2 Audio
    • Headphone: 4.5Vrms maximum, 32ohm minimum load
    • MM/MC Input Sensitivity: MM: 2.5mV to 5mV; MC:
    • 0.25mV to 0.5mVInput Load : MM: 47K ohms; MC: 50, 100, 500, 1000
    • RIAA Accuracy : +/- 0.25dB, 50Hz-15kHz
    • SNR : >70dB A-Weighted
    • Dynamic Range : 126dB A-weighted
    • THD+N : <0.001% 1kHz
    • IMD (CCIF) : <0.001%,18.5:19.5kHz 1:1
