Audience Hidden Treasure In-Wall AC Power Cable



Pin It

SOLD BY THE FOOT - ENTER QUANTITY DESIRED

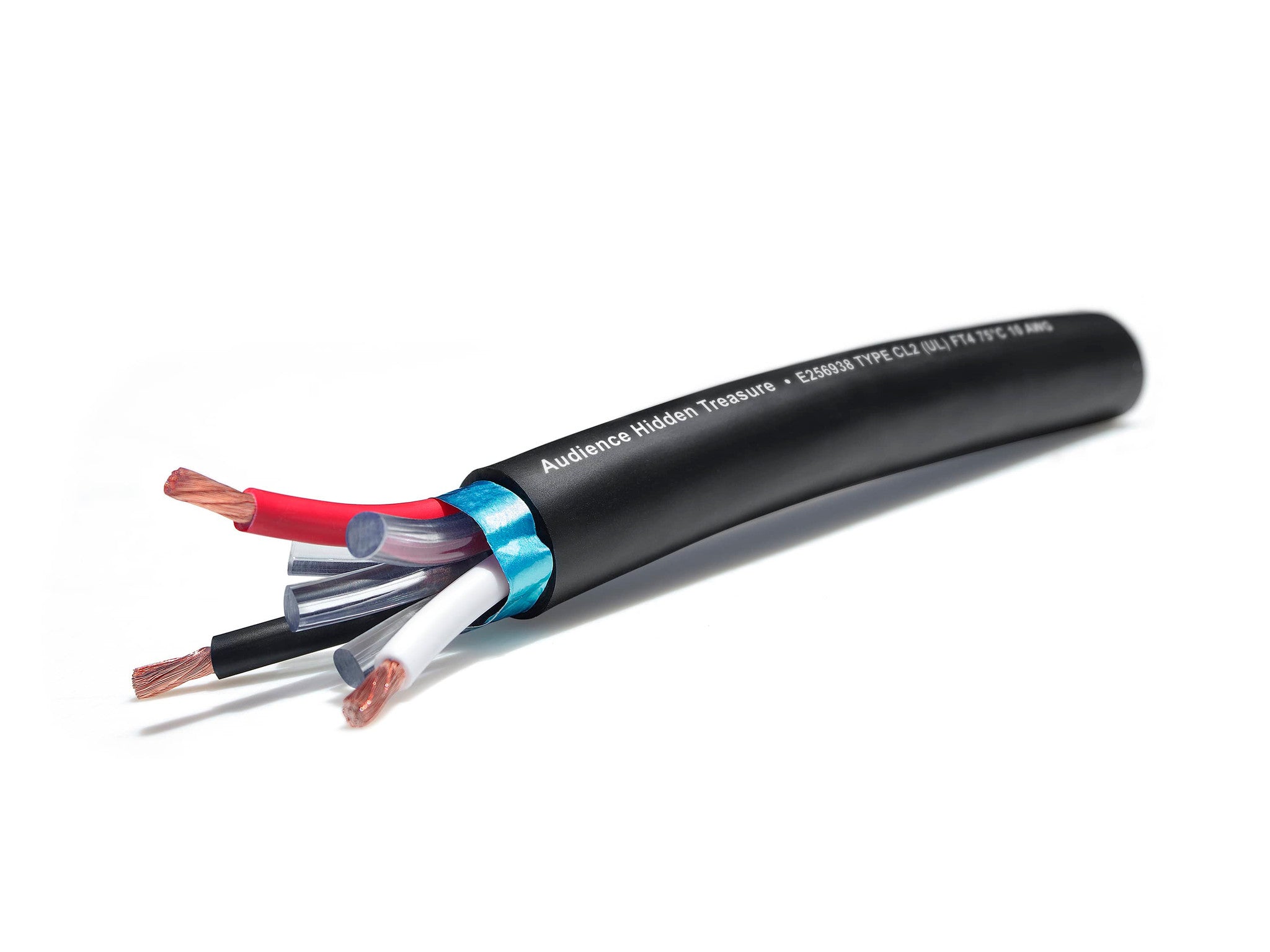

Hidden Treasure in-wall AC power cable provides high-performance AC power distribution intended to be used from your house breaker to the wall outlet. It features three 10 AWG stranded copper conductors plus a ground making it applicable for 120V and 240V applications plus flexible interlocked aluminum armor. The wire is cryogenically treated to relieve stresses that can be imparted to the wire during manufacturing and to re-align the microstructure in the copper for improved conductivity. The conductors are foil-shielded to provide rejection from external electrical noise. The dielectric (insulation) is made from XLPE cross-linked polyethylene insulation with a PVC sleeve for unmatched durability and performance. Hidden Treasure In-Wall AC Power Cable is also treated by our proprietary EHVP, which applies extreme high voltages at specific pulse modulations, frequencies, and amplitudes in differing ratios. This very special process creates predictable paths through the crystalline grain structure providing continuity and integrity to the AC signal.

Hidden Treasure is flexible and easy to install and has a diameter of 0.72 inches (18.3 mm).

Product Construction:

Conductor:

  • 10 AWG bare compressed
    copper

Insulation:

  • Flame-retardant Cross-linked
    Polyethylene (XLPE)
  • Color-coded per ICEA Method

Ground:

  • Annealed bare copper

Armor:

  • Aluminum interlocked Armor (AIA)

Jacket:

  • Flame-retardant, moisture- and
    sunlight-resistant Polyvinyl Chloride
    (PVC), black

Applications:

  • In a raceways or direct burial
  • Permitted for use per NEC Artile 334
    -Class I, Division 2
    -Class II, Division 2
    -Class III, Divisions 1 and 2

Features:

  • Rated at 90ºC wet or dry
  • Sunlight-resistant
  • Provides excellent oil and chemical
    resistance
  • Excellent crush resistance
  • Provides a long service life

Compliances:

Industry Compliances:

  • UL 1569
  • UL 44
  • ICEA S-95-658/NEMA WC70
  • UL Type MC-600 volts, UL File # E90496
  • NEC Type XHW-2 conductors

Flame Test Compliances:

  • IEEE 383 (70,000 BTU/hr)
  • UL 1581 (70,000 BTU/hr)
  • IEEE 1202 (70,000 BTU/hr) CSA FT4
  • ICEA T-29 520 (210,000 BTU/hr)

Other Compliances:

  • EPA 40 CFR, Part 261 for leachable lead
    content per TCLP method
  • OSHA Acceptable
  • RoHS Compliant
