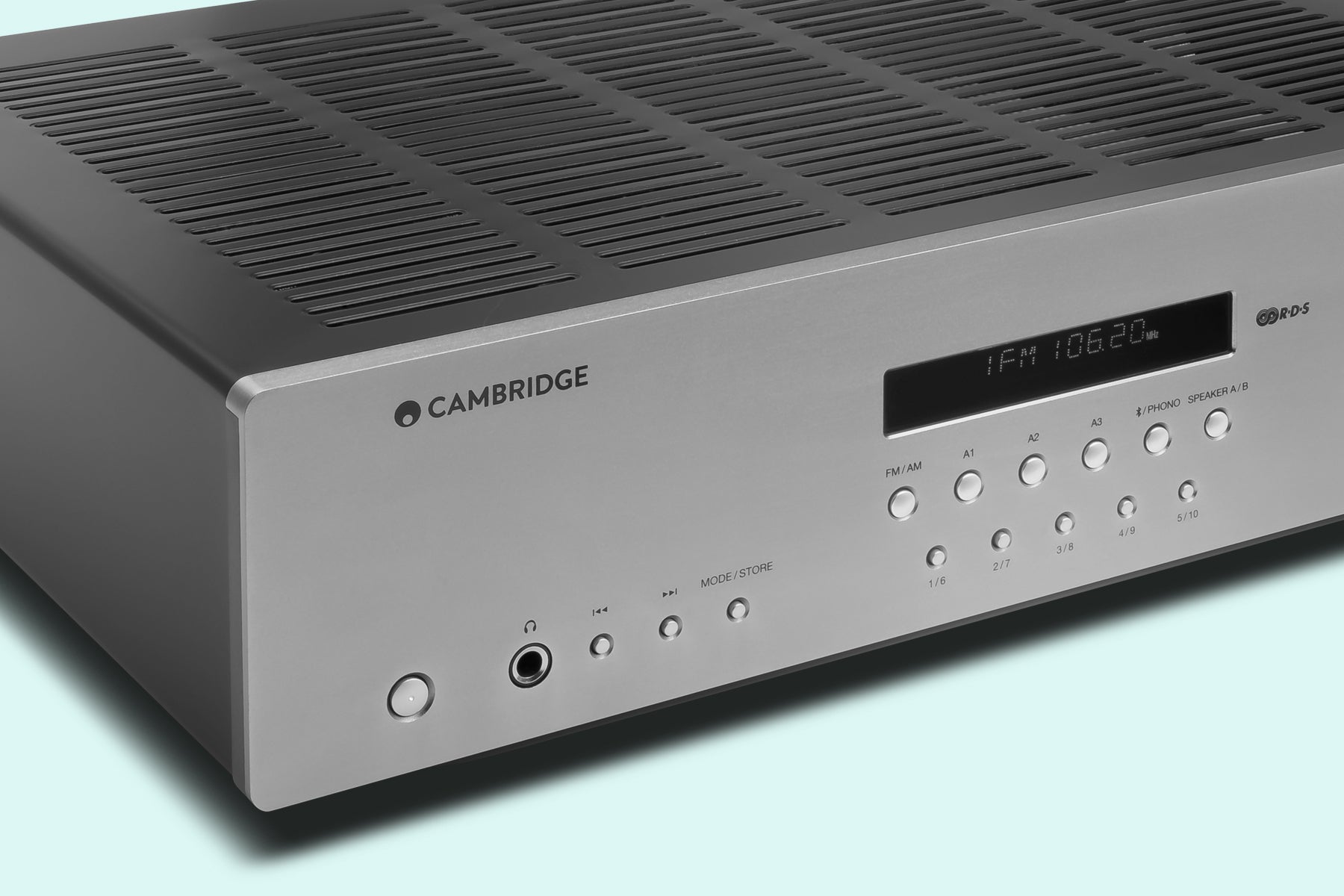

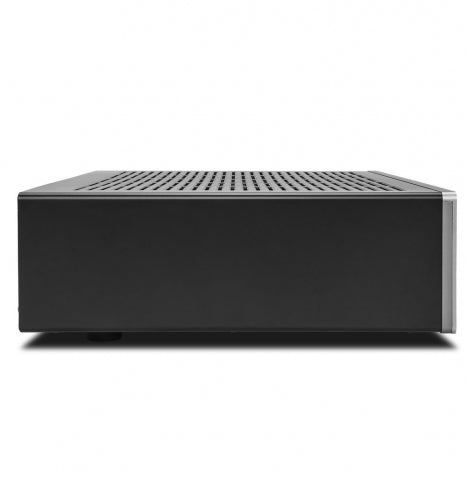

Cambridge Audio AXR100 FM/AM Stereo Receiver



Pin It

Next →

 The AX Series pairs high quality with outstanding value for money and is the perfect way for the Hi-Fi curious to build their first stacking separates system.

Taking design cues from our award-winning Edge and CX ranges, we designed the AX components to be a straightforward introduction to Great British Sound. It will change the way you appreciate music forever.

Your journey starts here.

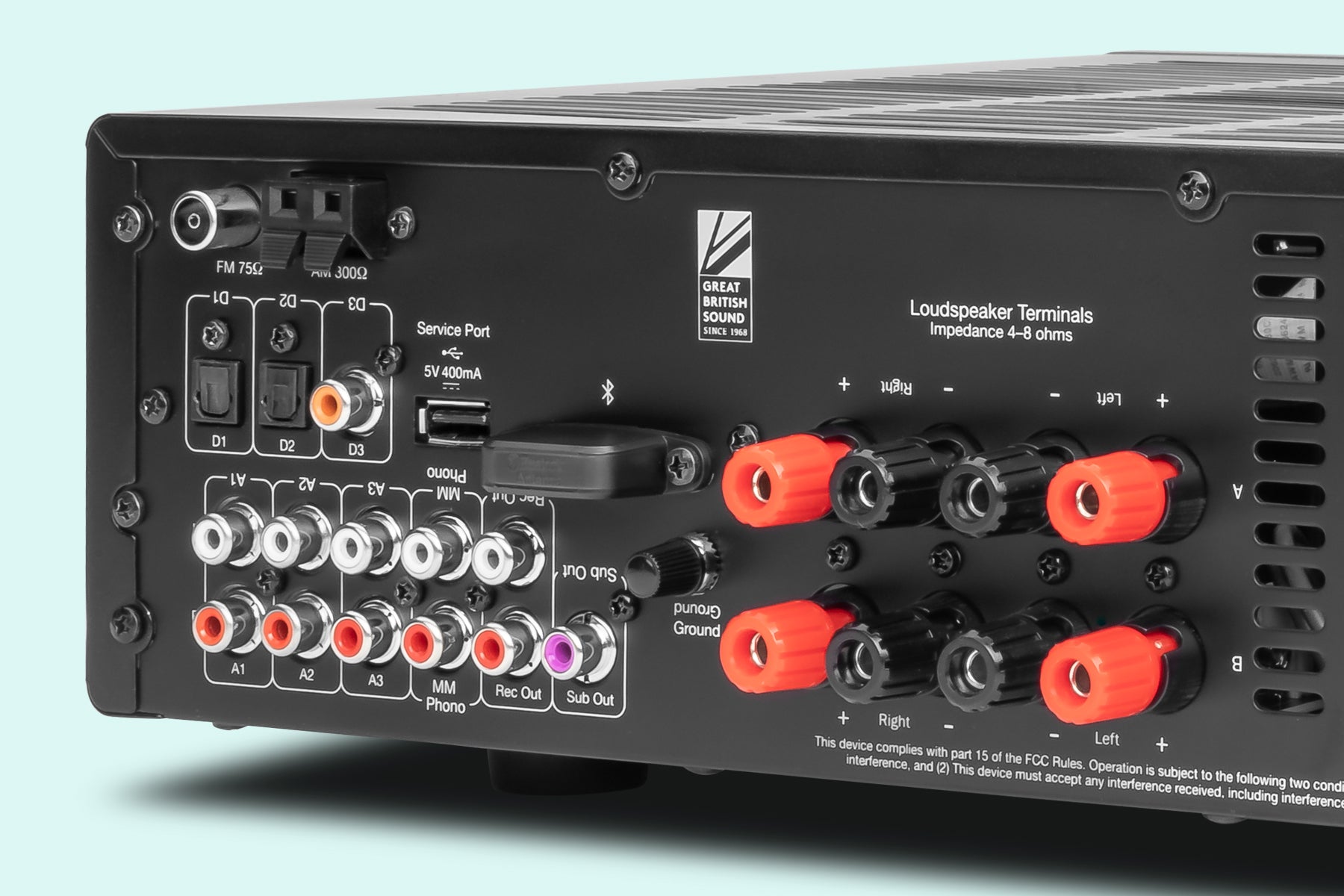

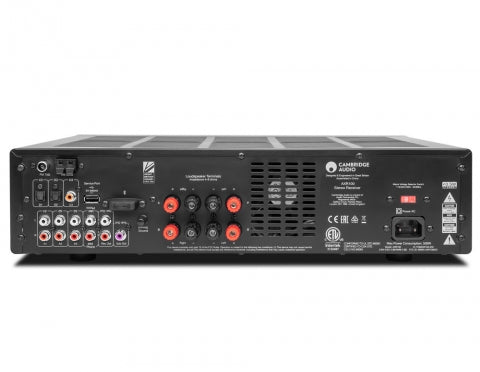

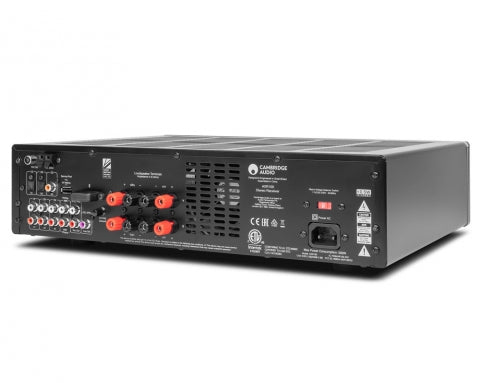

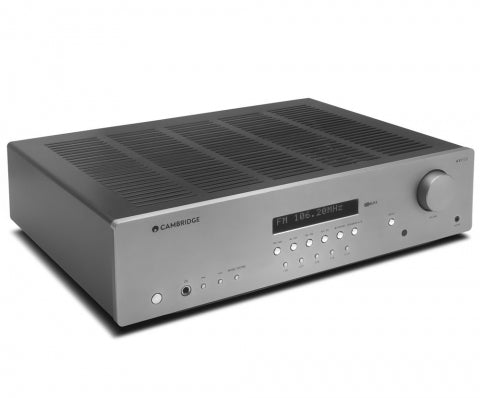

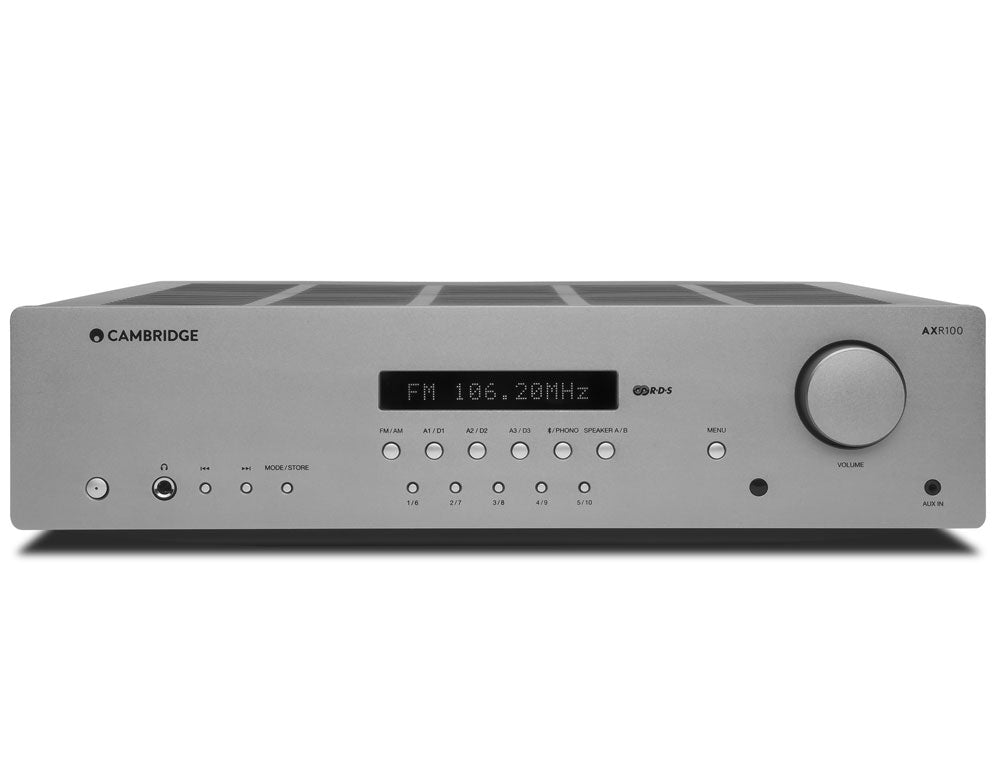

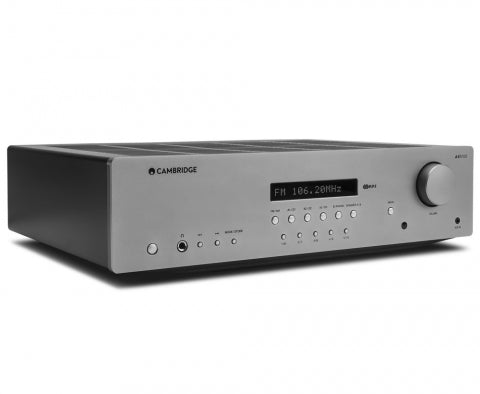

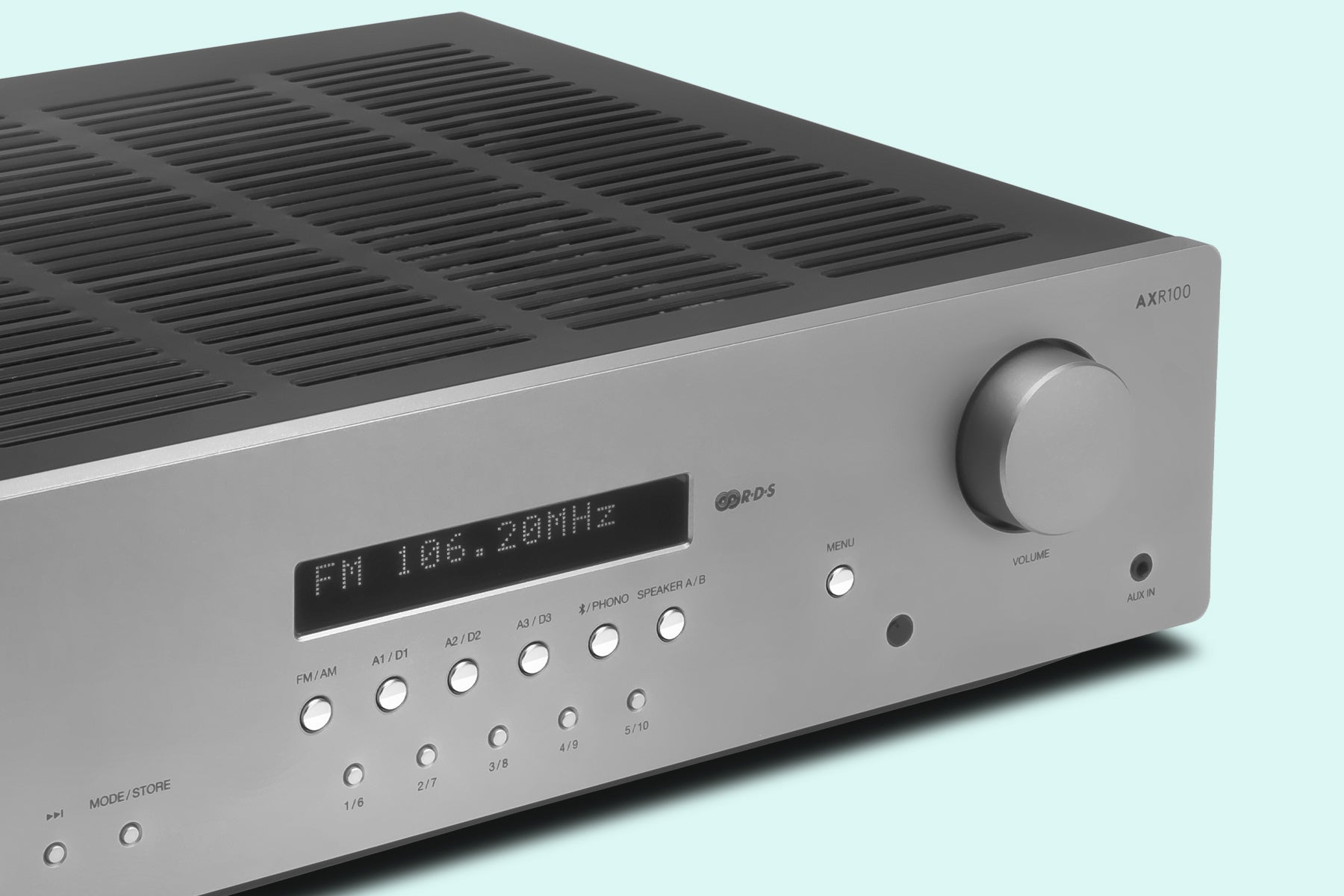

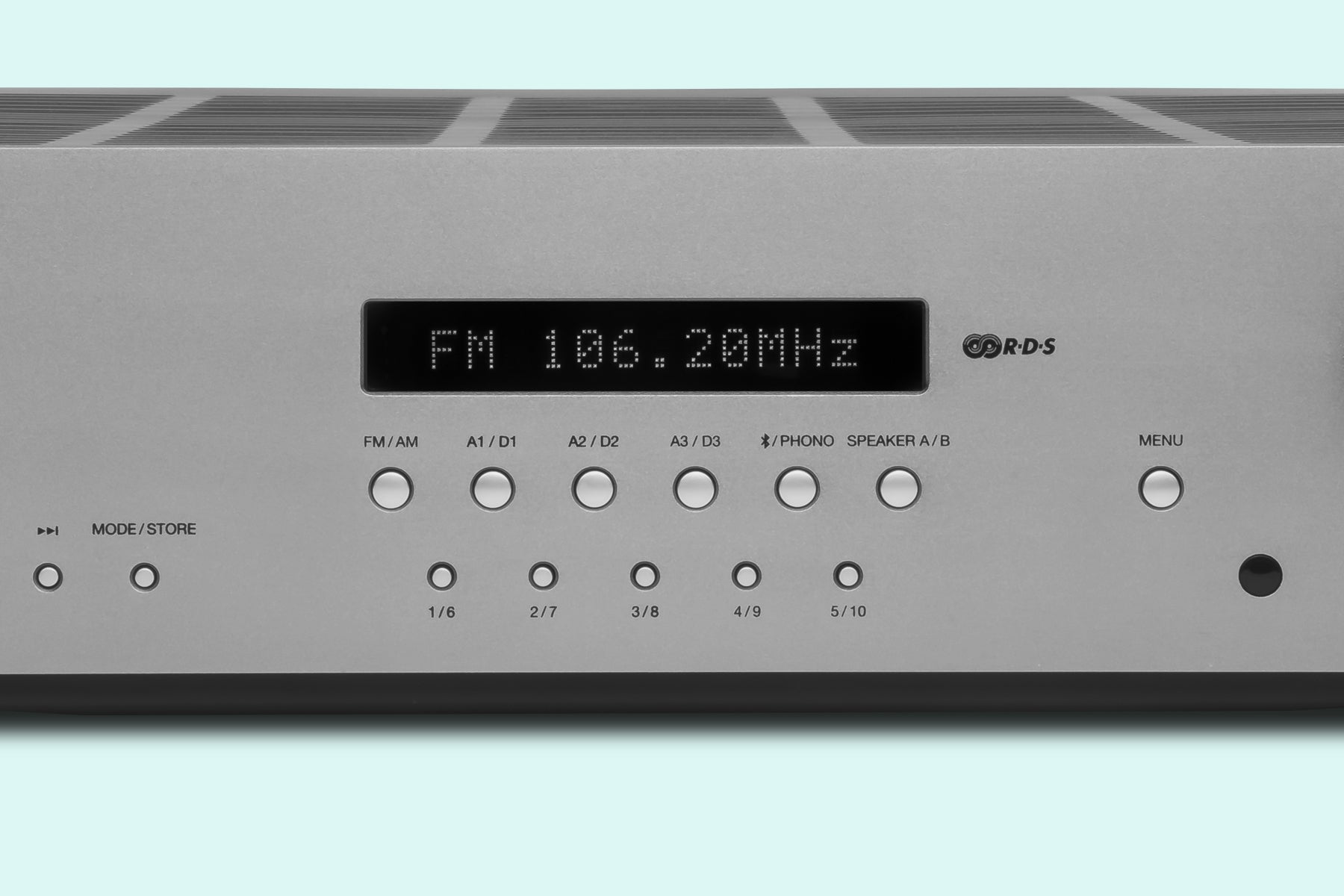

The most powerful amplifier in the AX range offers a massive 100 watts per channel, a dedicated subwoofer speaker output for improving bass and two sets of speaker outputs. It also features analogue inputs, digital inputs, a phono stage, an FM/AM receiver with RDS and a 3.5mm input. In addition, the built-in bluetooth receiver allows you stream your favourite music from your smartphone, tablet or PC.

Specifications:
  • Power Output: 100 watts (into 8Ω)
  • THD (Unweighted): <0.01% @ 1kHz, 80% of rated power <0.15% 20Hz - 20kHz, 80% of rated power
  • Frequency Response (-1DB): 5Hz - 50kHz
  • S/N Ratio (REF 1W): >82dB (unweighted)
  • Input Impedances: 47k ohms
  • Power Amp Damping Factor: >50
  • Standby Power Consumption: <0.5W
  • Max. Power Consumption: 550W
  • Bass/Treble Controls: Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 20kHz
  • Subwoofer Output: 200Hz 2nd order L+R Level follows volume setting
  • Digital Inputs: PCM 16-24-bit S/P DIF Co-axial 32-192kHz TOSlink Optical 32-192kHz
  • Dimensions: 110 x 430 x 340mm (4.3 x 16.9 x 13.4”)
  • Weight: 8.1kg (17.8lbs)
  • Bluetooth: 5.0 A2DP/AVRCP supporting SBC
  • Tuner Bands: European AM (522-1629kHz) FM (87.5-108MHz) / US AM (530-1710kHz) FM (87.5-108MHz)
  • Aerial Inputs: FM 75 ohms, Coaxial. AM 300 ohms wire loop/ single wire
  • Signal to Noise (Tuner): 60dB typical (FM)
  • Distortion (Tuner): <0.4% @ 1kHz 50kHz deviation (FM mono) <0.6% @ 1kHz 50kHz deviation (FM stereo)
