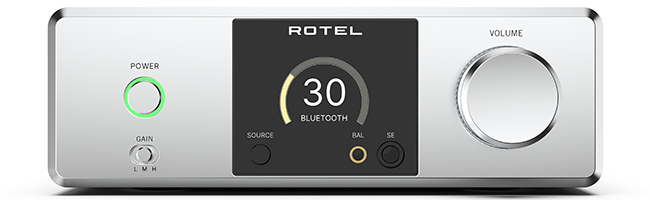

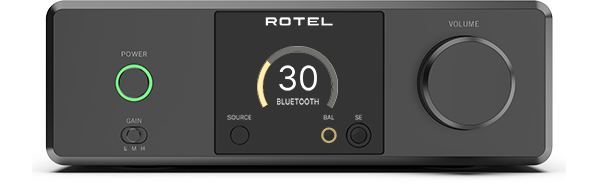

Rotel DX-3 Headphone Amplifier



Pin It

Next → ← Previous

  • The ultimate Personal Audio companion packaged in exquisite industrial design with the sophistication of a premium, fully balanced Headphone Amplifier. The ESS Sabre ES9028PRO DAC renders music via PC-USB input (32-bit/384kHz), Coaxial/Optical (24-bit/192kHz), aptX™ HD Wireless Bluetooth and legacy audio equipment via an AUX RCA input.

    The DX-3 is ideal for audiophiles seeking to enjoy music with a perfect blend of high performance and stylish design.

    The ultimate Personal Audio companion combining an exquisite industrial design with the sophistication of a premium, fully balanced Headphone Amplifier supported by an ESS Sabre ES9028PRO DAC. Connect your balanced or single-ended phones to the DX-3 or attached directly to a pair of active, powered speakers rending music up to 32-bit/384kHz from the PC-USB input, 24-bit/192kHz via Coaxial/Optical, aptX™ HD Wireless Bluetooth or any legacy audio equipment via the AUX RCA input.

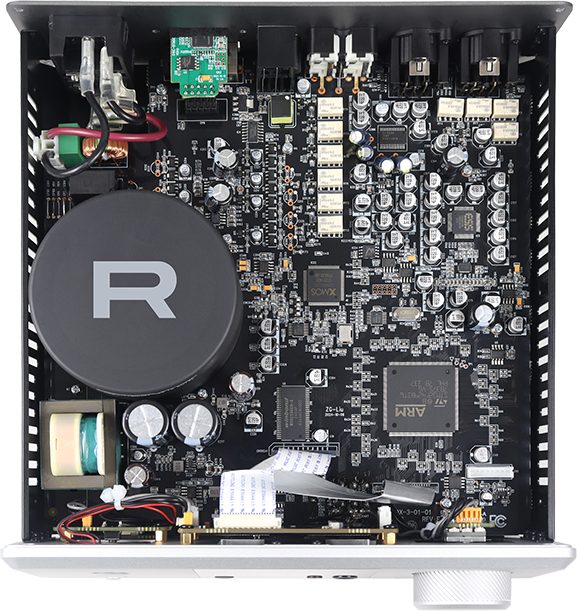

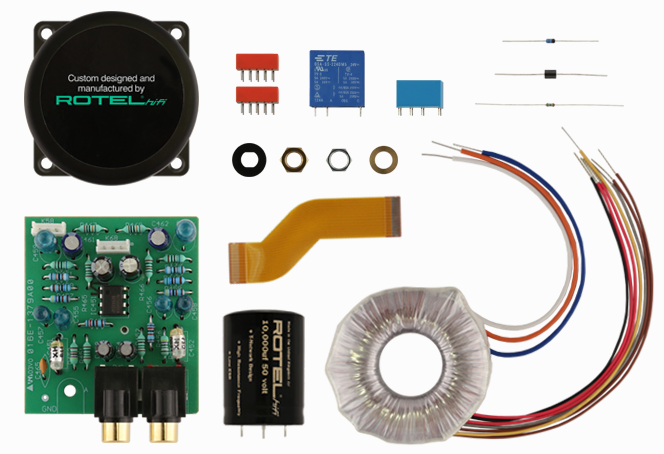

    Fully balanced circuit topology is powered by an in-house manufactured toroidal transformer with ultra-low noise isolation and filter capacitors. The full color graphic display, extruded aluminum remote control and front panel controls ensure ease of operation and configuration.

    The DX-3 is perfect for audiophiles who want to enjoy music through loudspeakers or in private listening sessions, combining performance and style.

  • Features:
    • Certified Roon Tested
    • ESS premium 32-bit
      Digital to Analog Converter
    • Bluetooth with aptX™HD
      and AAC
    • Fully balanced differential
      XLR outputs
    • Includes Remote Control
  • Specifications:
    • Dimensions (W × H × D)
      • 215 x 73 x 247mm
      • 8 1/2 x 2 3/4 x 9 3/4"
    • Front Panel Height
      • 70 mm (2 3/4")
    • Power Requirements
      • 120 V, 60 Hz
    • Power Consumption
      • 30 W
    • Standby Power Consumption
      • <0.5 W
    • Net Weight
      • 3.2 kg (7.1 lbs.)
    • BTU
      • 100 BTU/h
    • Power Output (THD+N < 1%)
      • Single-ended (6.35 mm) :
        • 765 mW (16 Ω)
        • 383 mW (32 Ω)
        • 41 mW (300 Ω)
      • Balanced (4.4 mm):
        •  2.8 w (16 Ω)
        • 1.4 w (32 Ω)
        • 150 mw (300 Ω)
    • Total Harmonic Distortion (32 Ω, 1k Hz)
      • Single-ended
        • < 0.008% @ Output=70 mW
      • Balanced
        • < 0.004% @ Output=280 mW
    • Frequency Response
      • Headphone:
        • 20 Hz - 20k Hz, +0 dB, -0.2 dB
      • Digital:
