Cambridge Audio MXW70 Power Amplifier



Pin It

Next → ← Previous

  • Musical muscle, compact footprint. MXW70 adds power and refinement to any setup, driving even difficult speakers without the bulk of other power amplifiers. It’s the perfect partner for our MXN10 Music Streamer, combining to form a half-width, high-performance streaming system.

    Now You See It, Now You Don't: Cambridge Audio MXW70 Power Amplifier Features Unobtrusive Size, Delivers 70Wpc in Stereo or 250Wpc in Bridged Mono Mode, Features Hypex NCORE Module

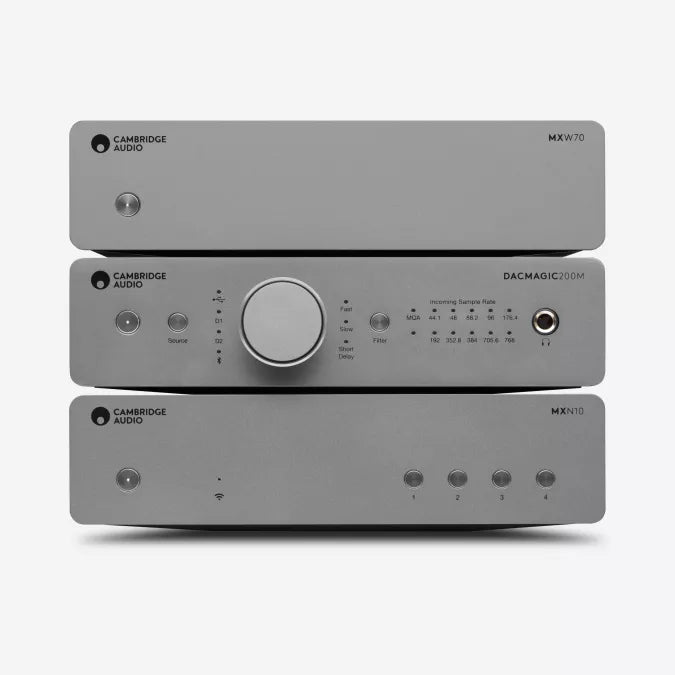

    Half the size. All the power. Designed for desktop setups and main systems where space might be at a premium, the Cambridge Audio MXW70 power amplifier measures an ultra-compact 2.24 x 8.46 x 8.46 inches (HWD) and sports a clean, minimalist design that speaks to its unobtrusive form factor and focus on audiophile sound. Outputting 70Wpc in stereo and 250Wpc in bridged mono mode, the 3.63-pound MXW70 seamlessly mates with the Cambridge Audio MXN10 and DacMagic 200M to form a small-form streaming stack. You can also pair it with countless other gear.

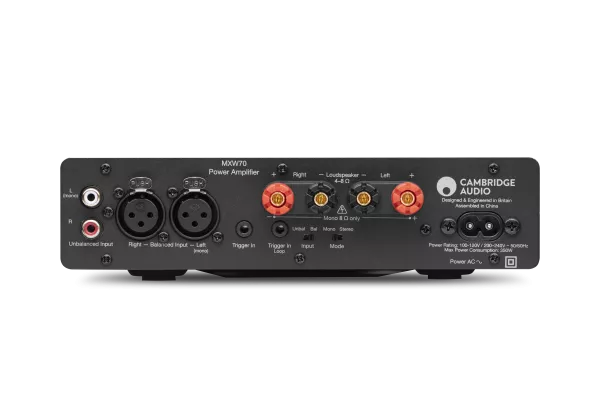

    Anchored by a carefully tuned input stage running into a Class D Hypex NCORE module engineered for high efficiency, low distortion, and low output impedance for precise control, MXW70 makes up for its discreet appearance with shockingly large, noticeable sonics. Another benefit? You can place it close to your speakers and save on cable lengths. Outfitted with XLR and RCA inputs, 12v trigger in, and a loop out, MXW70 gives you the flexibility you deserve.

    Small yet mighty

    Designed in London, MXW70 has been meticulously engineered to deliver outstanding high-fidelity amplification from a compact case that can fit into an existing setup or form the basis for a minuscule modern system.

    Full metal jacket

    No compromises have been made in the build of our half-width champions. MXW70 features premium all-metal casework with a minimalist timeless design, flawlessly finished in our trademark Lunar Grey.

  • Features:
    • 70 Watts per channel
    • Hypex NCORE Class D
    • RCA and XLR inputs
    • Compact casework
    • 12v trigger input and 12v trigger pass-through
    • Bridgeable into 250W mono mode
  • Specifications:
    • Power output: 2x70W (8ohm stereo), 2x 125W (4ohm stereo), 250W (8ohm mono)
    • Speaker outputs: 1 set
    • Other outputs:12v Trigger pass-through
    • Thd+n (unweighted): <0.015% @ 5W/8ohm
    • S/n ratio (ref 1w - 20k bw): >92dB (XLR), >89dB (RCA)
    • Crosstalk @1khz: <-82dB
    • Gain: 22.2dB (XLR), 28.8dB (RCA)
    • Input sensitivity: 3.6V (mono XLR), 1.65V (mono RCA), 0.9V (stereo RCA), 1.9V (stereo XLR)
    • Input impedances: 22kohm (RCA), 35kohm (XLR)
    • Power amp damping factor: >180 @ 1kHz 8ohm
    • Max power consumption: 300w
    • Standby power consumption: <0.5W
    • Dimensions (HxWxD): 57x215x215mm
    • Weight: 1.65kg
