Hear every last musical detail.
Re-engineered without compromise, LUMIN X1 redefines the digital musical experience.
WHY LUMIN X1
Never content, we've constantly been evaluating our streamers to see if there was any possible way to beat them. It's taken years, but finally we're ready to reveal Streaming's New Cutting Edge.
Re-engineered throughout
LUMIN X1 makes improvements in every possible location:
- New processor delivers native DSD512 & PCM768 playback
- Dual Mono design throughout maximises channel separation
- Dual ES9038Pro SABRE DACs featuring 140dB dynamic range
- Femto Clock System with precision FPGA distribution
- New Output Buffer design
- Dual Mono dual stage linear regulator
- Optical Network provides complete isolation from network digital noise
- USB Digital Audio Output supports Native DSD512
Entirely new Power Supply
- New solid billet CNC casing design

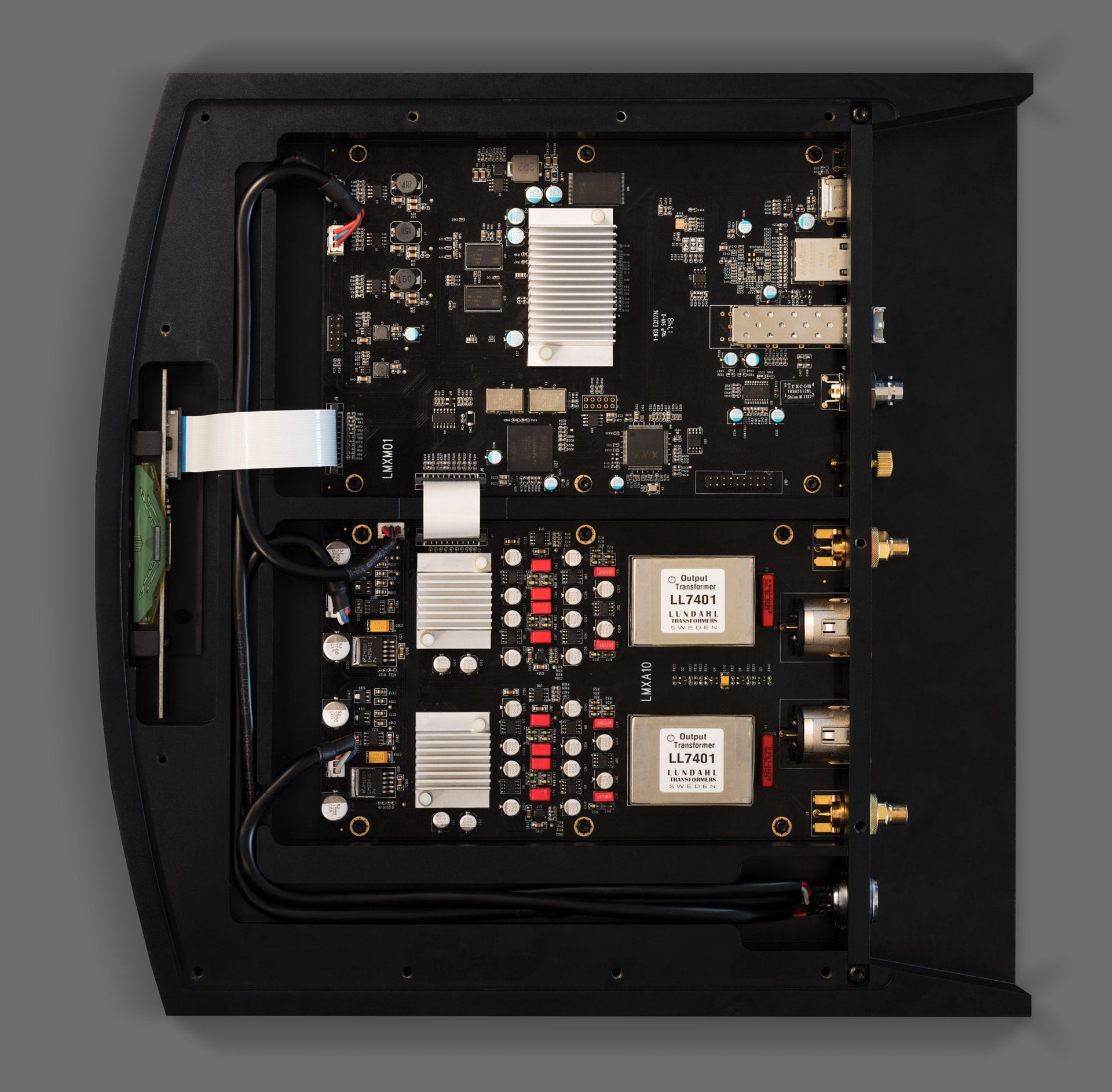

- Separate digital & analogue circuitry
- Low-noise linear regulator
- New 9-pin output connector
Specifictions:
DSD SUPPORT:Up to DSD512 22.6MHz, 1-bit
PCM SUPPORT:Up to 768kHz, 16–32-bit, Stereo
ANALOG OUTPUT STAGE:Dual ESS SABRE
32 ES9038Pro DAC chipsFully balanced layout with high-quality components
Output connectors coupled with dual LUNDAHL LL7401 output transformers
Femto Clock System with precision FPGA distribution
UPSAMPLING RATES & BIT DEPTHS:
DSD128 upsampling option for all files
PCM 384kHz upsampling option for all files
DIGITAL OUTPUT STAGE:
USB:
Native DSD512 supportPCM 44.1–768kHz, 16–32-bit, Stereo
BNC SPDIF:
PCM 44.1kHz–192kHz, 16–24-bitDSD (DoP, DSD over PCM) 2.8MHz, 1-bit
OPTICAL NETWORK:
Industry-standard SFP1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

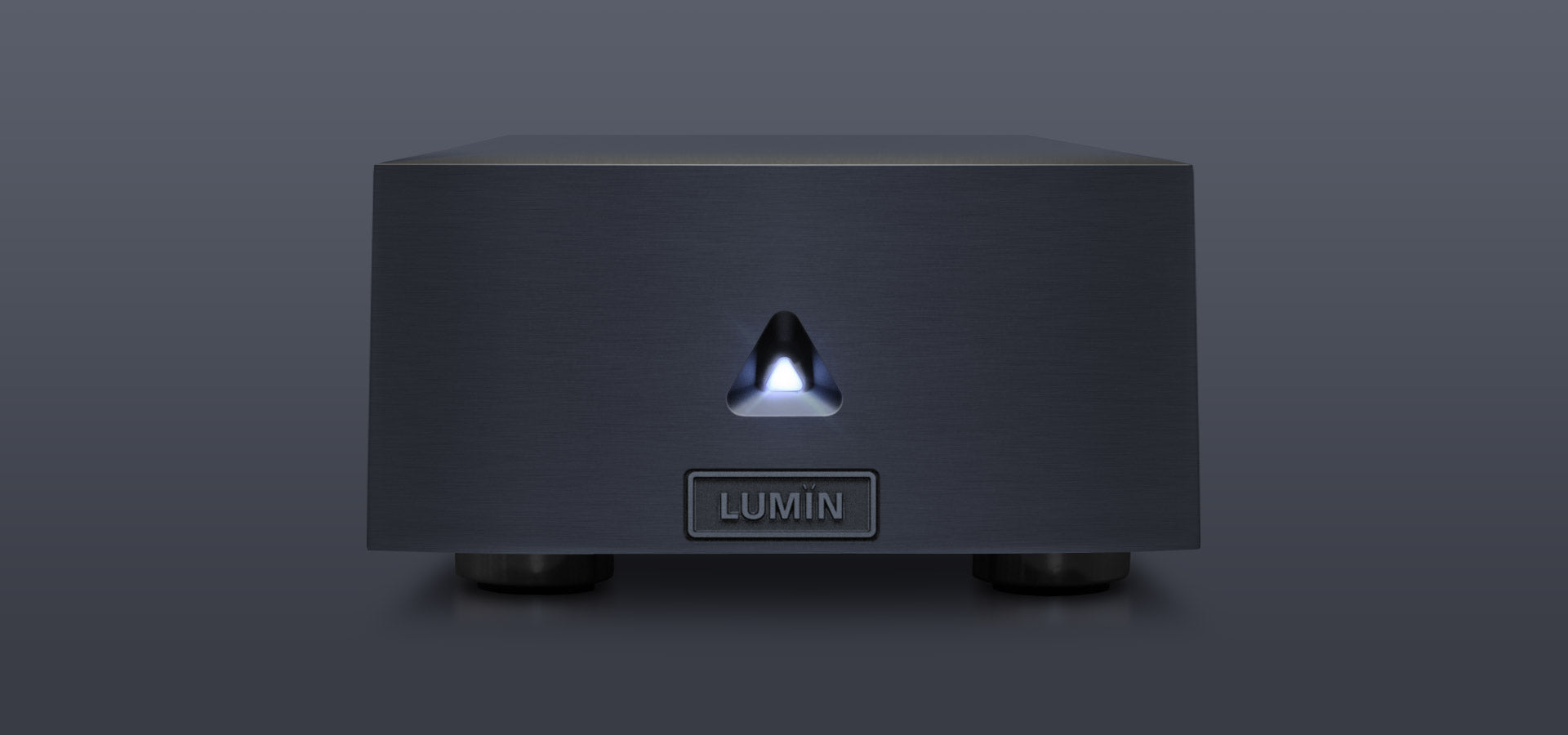

POWER SUPPLY:
External solid billet cnc dual-toroidalSeparate digital & analogue circuitry
Low-noise linear regulator
9-pin Output Connector
PHYSICAL:
FINISH:
Black anodised brushed aluminium (with matching PSU)Raw brushed aluminium (with matching PSU)
-
LUMIN (SOLID ALUMINIUM CHASSIS):
PSU (SOLID ALUMINIUM CHASSIS):
106mm (W), 334mm (D), 60mm (H), 4kg
STREAMING PROTOCOL:
UPnP AV protocol with audio streaming extension (OpenHome)Roon Ready
TIDAL Connect
Spotify Connect
AirPlay-compatible
Gapless Playback
On-Device Playlist
APP FEATURES:
Native support for TIDAL, MQA, Qobuz and TuneIn Radio.Tidal MQA icons to identify high-res music
Qobuz high-res icons to identify high-res music
Volume control
High-resolution artwork
Artwork caching
Search
Multiple tag handling
Composer tag support
Album-grouping in playlist
Automatic internet links to artists/album/songs
Saving and restoring of playlists (including Tidal and Qobuz)
SUPPORTED AUDIO FILE FORMATS:
DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
Compressed (lossy) Audio: MP3
MQA
INPUT:
Ethernet RJ45 network 1000Base-TUSB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)
ANALOG AUDIO OUTPUTS:
XLR balanced, 6Vrms, pin 2 HotRCA unbalanced, 3Vrms
