An advanced dual-drive music server requiring zero setup configuration and containing a 4-port audiophile-grade network switch.
WHY LUMIN L2?
The perfect partner for LUMIN owners who wish to store their own music collection! The effortless operation of LUMIN L2 belies its advanced features and unrivalled flexibility. With a 4-port audiophile-grade network switch on board, its two optical fibre SFP ports and two RJ45 copper ports L2 can streamline and enhance your network!
UPNP OPENHOME MUSIC SERVER
ZERO CONFIGURATION - Simply add music to LUMIN L2 via USB or over the network and it all gets served automatically. No complex installation or setup steps.
LUMIN SERVER SOFTWARE
Our bespoke server software is specifically designed for the demands of LUMIN owners - featuring rock-solid stability, rich tag support and, of course, high resolution PCM/DSD support.
BUILD QUALITY
Silent, vibration-free design offers the same thick shielded CNC chassis construction as our high-end P1 music player. Available in the same black and silver finishes, LUMIN L2 is the perfect accompaniment.
AUDIOPHILE GRADE NETWORK SWITCH
4 PORTS - With 4 network ports LUMIN L2 can simplify your wiring and remove the need for cheap (and electrically noisy) switches around your hi-fi.

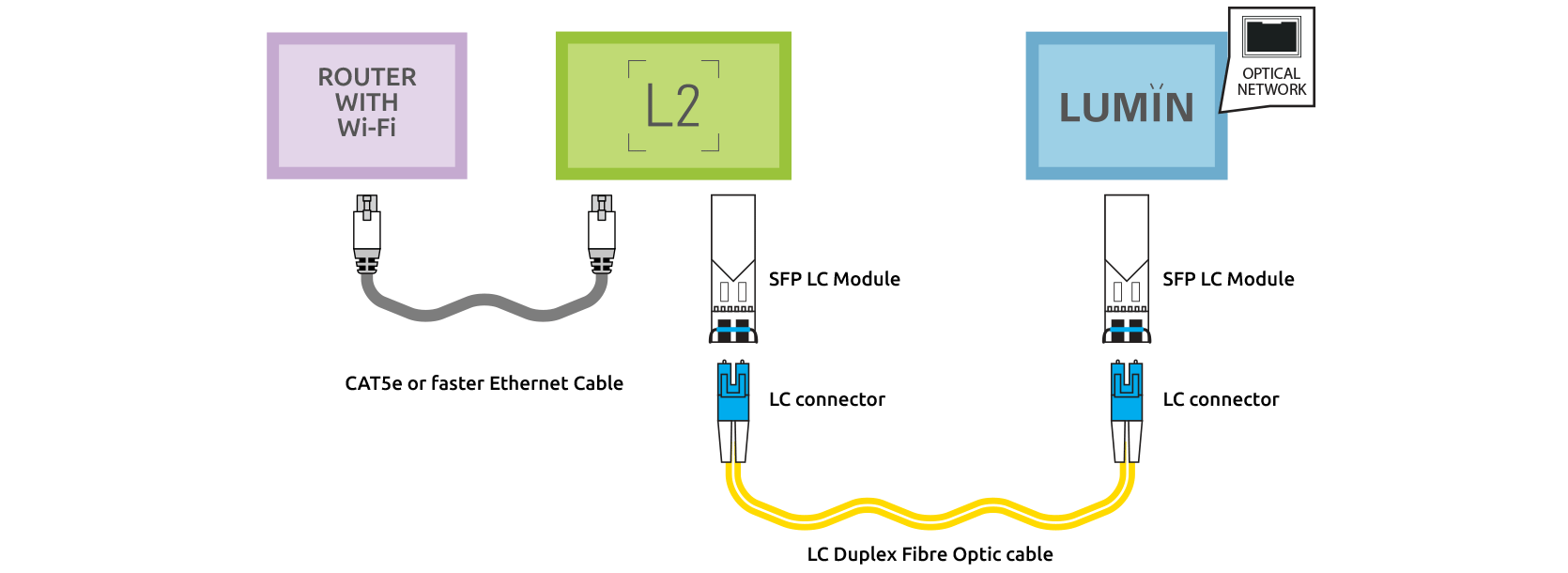

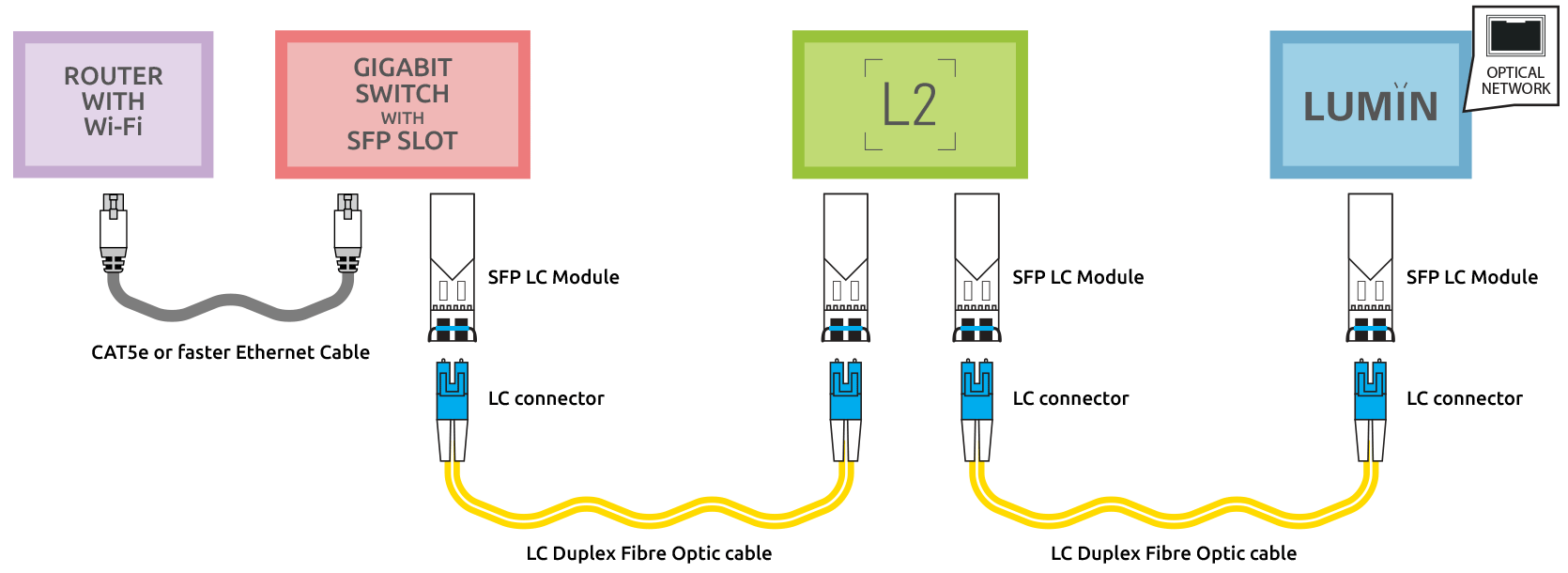

FIBRE NETWORKING
2x SFP ports allow optical fiber networking input and output, completely electrically isolating your hi-fi from the rest of your network.
LOW NOISE DESIGN
Shielded, low-noise power supply, thick and rigid CNC aluminum chassis, and spacious layout all help provide untouched data to your network player.
Note:
The 8TB HDD version uses NTFS format for the internal HDD. On a Mac computer, additional software may be needed to access NTFS formatted HDD.
-
FEATURES:
- Available without drives or with 4TB or 8TB capacity
- Zero configuration required
- Automatically serves all added music
- Fibre Network provides complete isolation from network noise
- 4-port network switch simplifies cabling and makes fibre easy
- UPnP (Openhome) compatible
- USB 3.0 Micro type B for connection to computer
- SMB support for transferring over the network
- Gigabit Ethernet
- Thick-paneled CNC Aluminum construction
-
SPECIFICATIONS:
-
INTERNAL STORAGE:
- No drives, 4TB (2x 2TB) or 8TB (2x 4TB) 2.5" SSD
-
SUPPORTED AUDIO FILE FORMATS:
-
DSD LOSSLESS:
- DSF (DSD), DIFF (DSD), DoP (DSD)
-
PCM LOSSLESS:
- FLAC, Apple Lossless (ALAC), WAV, AIFF
-
COMPRESSED (LOSSY) AUDIO:
- MP3
-
DSD LOSSLESS:
-

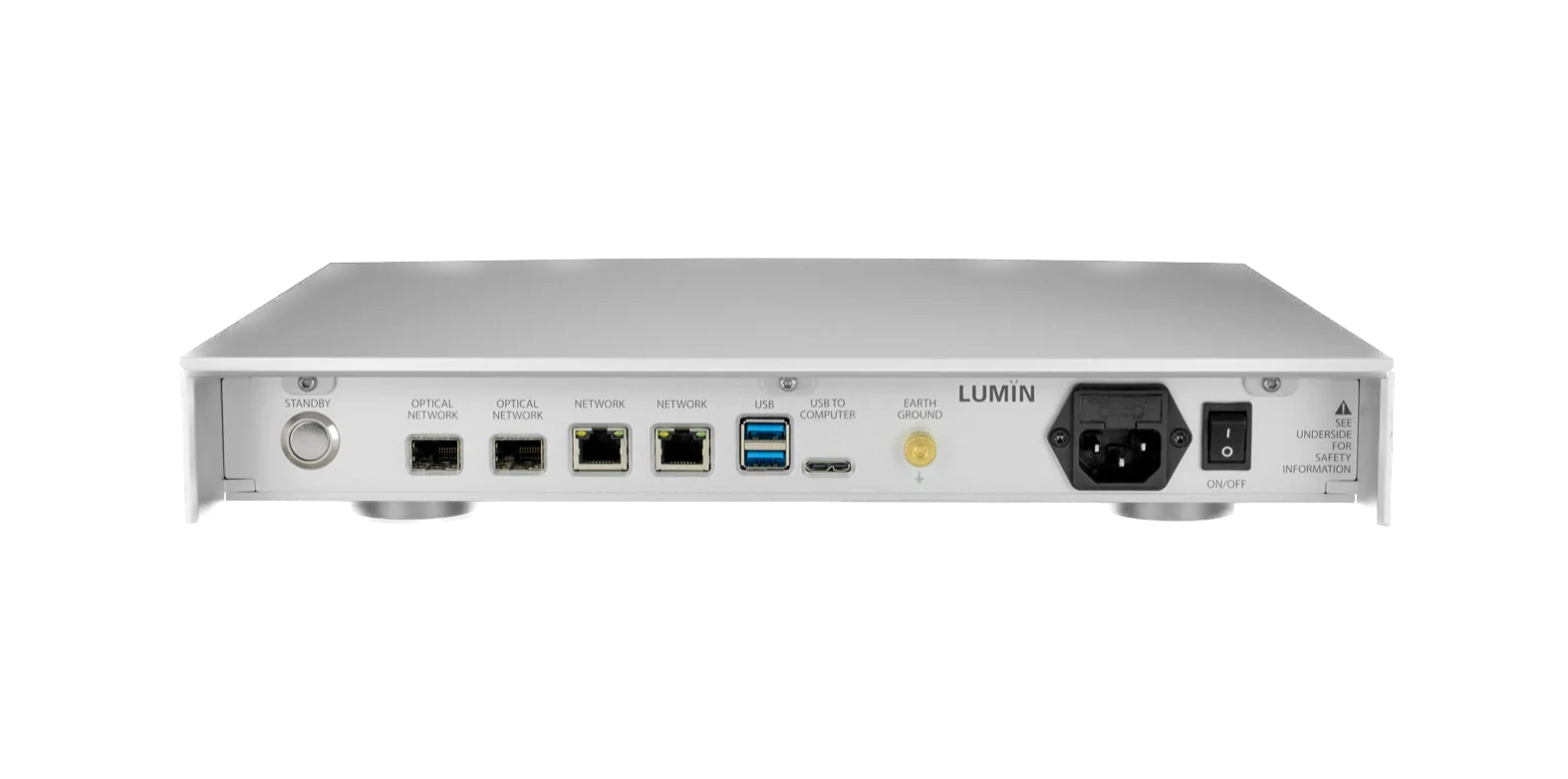

CONNECTIONS:

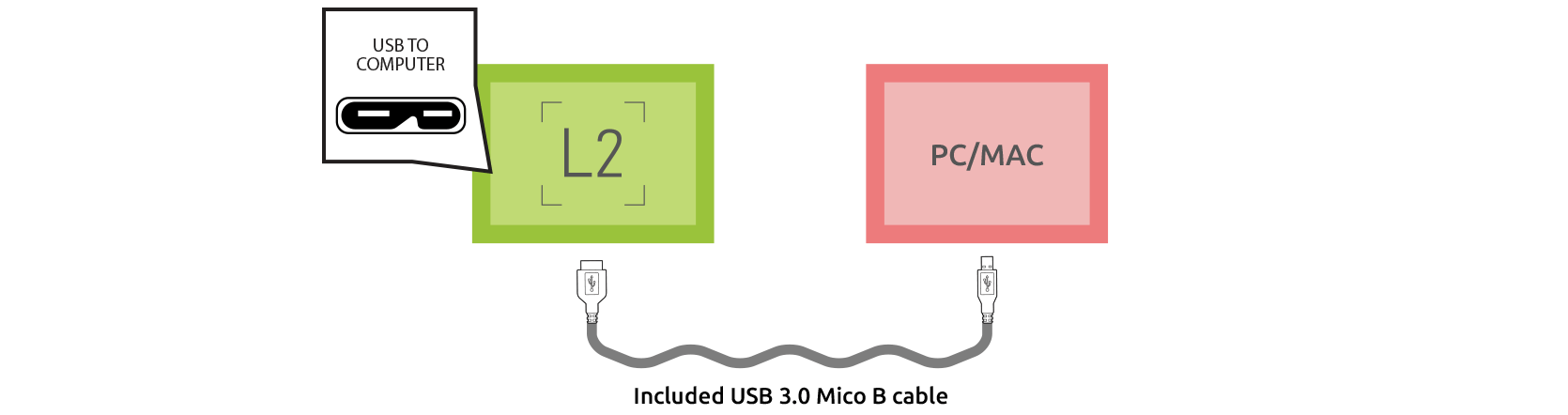

- USB 3.0 Micro Type B Slave for connection to computer*
- 2x Gigabit Ethernet Network (1000BASE-T) RJ45
- 2x Industry-standard Gigabit SFP
- 2x USB 3.0 Type A reserved for future use
-
POWER SUPPLY:
- Internal 100–240V AC auto-ranging
- Low-noise
- Shielded power supply compartment for reduced interference with delicate electronics
-
PHYSICAL:
-
FINISH:
- Black anodized aluminum
- Raw anodized aluminum
-
DIMENSIONS
- 350mm (W), 350mm (D), 60.5mm (H), 6kg
-
FINISH:
-
INTERNAL STORAGE:
