Eversolo DAC-Z10 Desktop DAC / Preamplifier
High-resolution dual-mono DAC with precision preamp, headphone section and full connectivity for studio & hi-fi systems

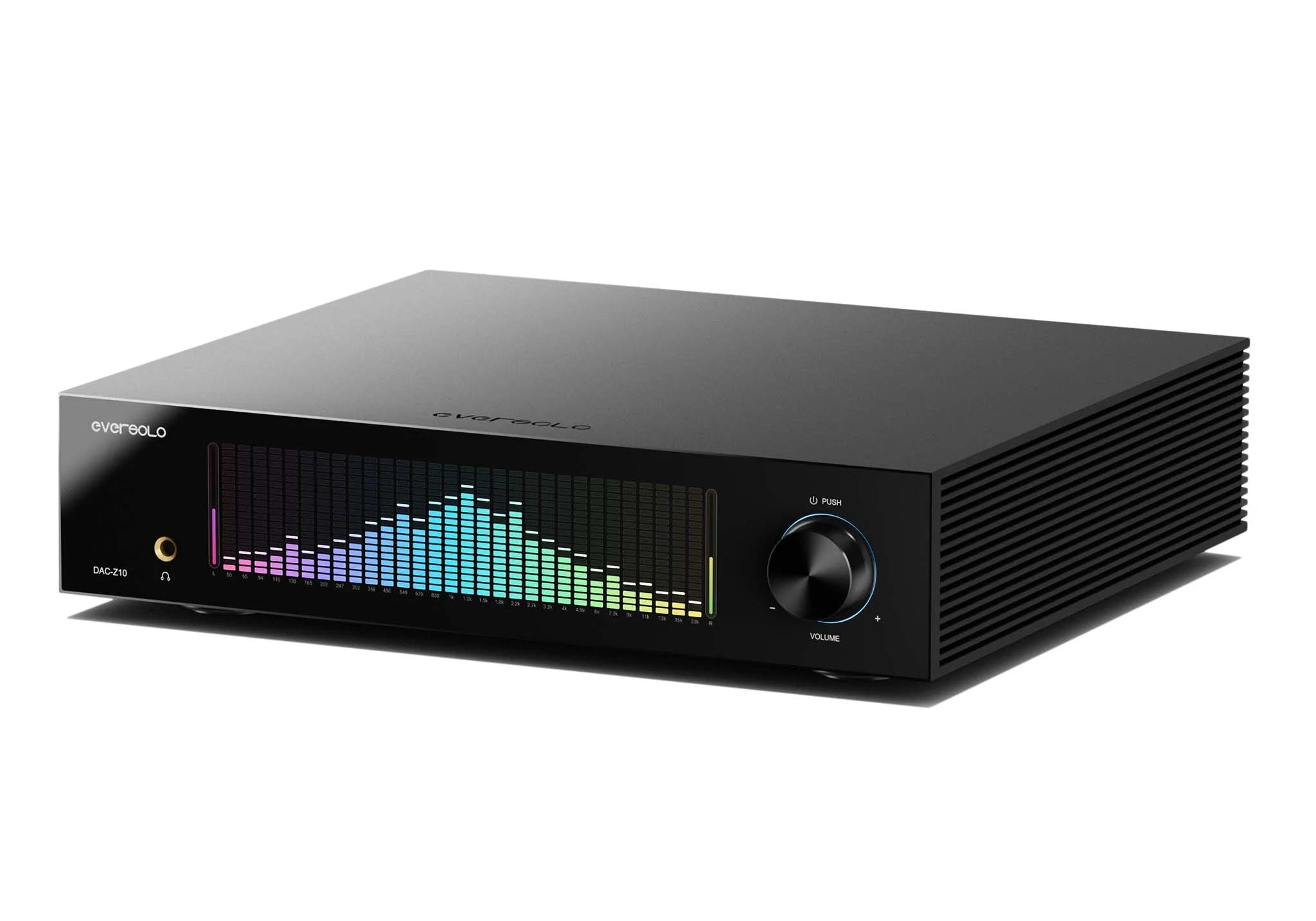

The Eversolo DAC-Z10 presents a substantial desktop component designed to serve as a hub for both digital and analog sources. Its brushed-aluminium chassis, large front-panel touch-screen and robust connection complement lend it a carefully engineered aesthetic.
Internally the Z10 uses a dual-mono architecture and precision R2R volume control rather than a simple digital attenuator. The design emphasises low noise, accurate time-domain performance, and channel separation.

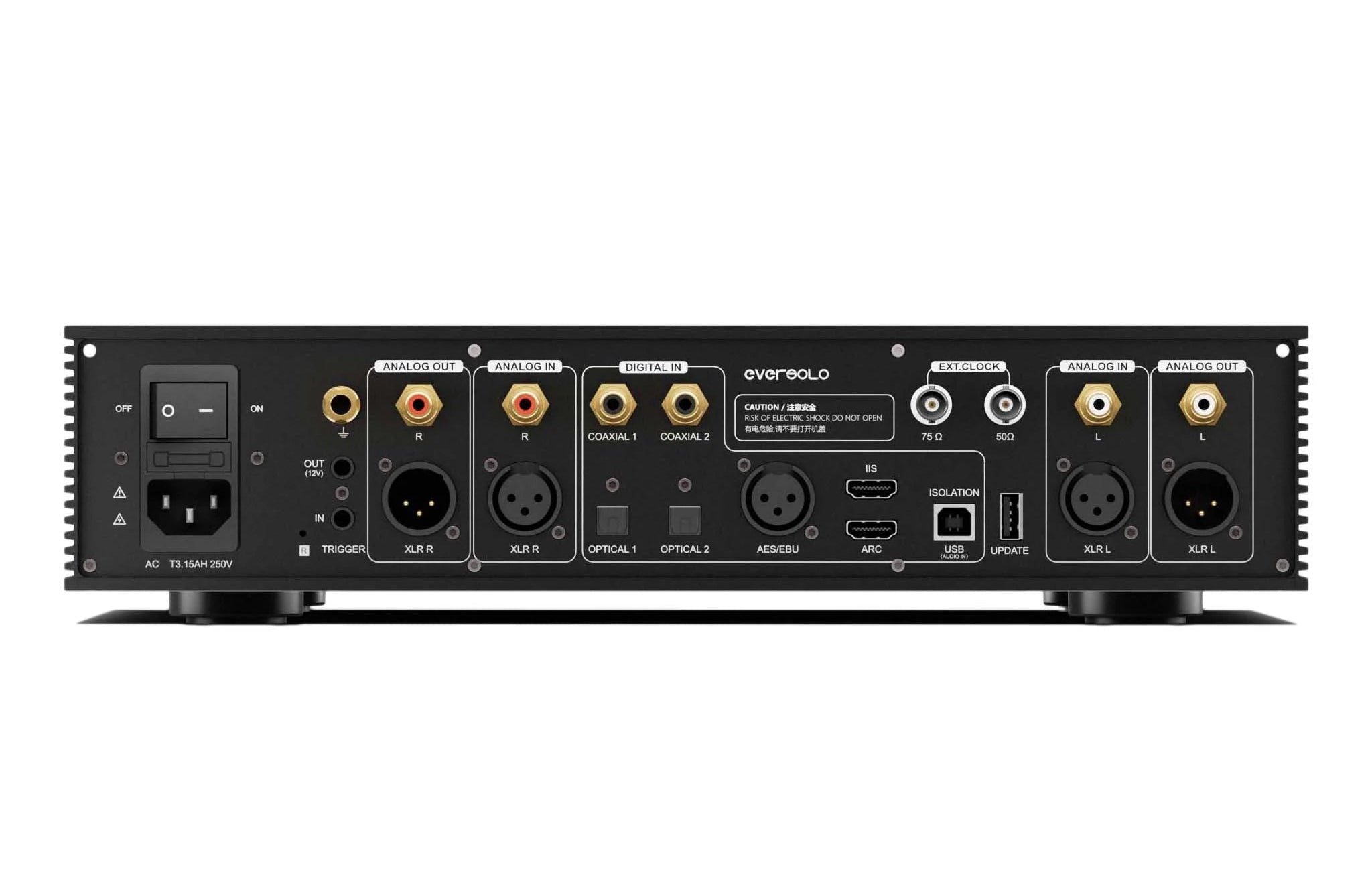

On the connectivity front, the DAC-Z10 supports a wide array of digital inputs (USB-Audio, I²S/HDMI, AES/EBU, dual coaxial, dual optical, HDMI ARC/eARC) and can function as a full-featured analog preamplifier with balanced XLR and single-ended RCA outputs. A 6.35 mm headphone output with automatic impedance-detection and multiple gain settings make it suitable for serious headphone listening as well.
Included Accessories
-
Remote control
-
Power cable
-
USB data cable
-
USB drive (for firmware upgrade)
-
Trigger cable
-
Polishing cloth
-
User manual
Specifications
Display: 8.8" IPS
Chassis Material: Aluminum alloy
Main Processor: DCP8568
DAC Architecture: Dual-mono (Left Channel: AK4191 + AK4499; Right Channel: AK4191 + AK4499)
Audio Processor: Multi-core USB audio processor
Operational Amplifier: OPA1612
Power Supply: Triple ultra-low-noise linear power supplies
Inputs
Bluetooth: Qualcomm QCC5125 module, Bluetooth 5.0; supports SBC and AAC protocols
USB-B: Compatible with Windows 10 and later, macOS, Android, and iOS; supports up to PCM 768 kHz / 32-bit and DSD512 (stereo)
I²S: Eight selectable mode configurations; supports PCM 768 kHz / 32-bit and DSD512 (stereo)
AES/EBU: Up to PCM 192 kHz / 24-bit and DSD64 DoP
Optical x2: Up to PCM 192 kHz / 24-bit and DSD64 DoP
Coaxial x2: Up to PCM 192 kHz / 24-bit and DSD64 DoP
ARC: Up to PCM 192 kHz / 24-bit
Analog: XLR (balanced), RCA
Outputs
Analog Pre-out: XLR (balanced), RCA (single-ended)
Headphone Out: 6.35 mm (single-ended)
External Clock Input: 10 MHz / 25 MHz (50 Ω or 75 Ω impedance)
Recommended Headphone Impedance: 16 Ω–300 Ω (Low Gain 16–32 Ω / High Gain 32–300 Ω)
Audio Performance
XLR Output Level: 5 Vrms @ 0 dBFS
XLR THD+N (no wt): 0.00008% @ 1 kHz (–122 dB)
XLR Noise (no wt): < 1.2 µVrms
XLR SNR (A-wt): 130 dB
XLR Frequency Response (±0.1 dB): 20 Hz–20 kHz
XLR Crosstalk: –130 dB
RCA Output Level: 2.5 Vrms @ 0 dBFS
RCA THD+N (no wt): 0.000097% @ 1 kHz (–120 dB)
RCA Noise (no wt): < 1.5 µVrms
RCA SNR (A-wt): 128 dB
RCA Frequency Response (±0.1 dB): 20 Hz–20 kHz
RCA Crosstalk: –123 dB
Headphone Output (Low Gain): 4 Vrms @ 0 dBFS; THD+N 0.0003% (–110 dB); SNR 124 dB
Headphone Output (Mid Gain): 5.6 Vrms @ 0 dBFS; THD+N 0.00018% (–115 dB); SNR 126 dB
Headphone Output (High Gain): 7 Vrms @ 0 dBFS; THD+N 0.00013% (–118 dB); SNR 127 dB
General
Control Methods: Touchscreen, remote control, mobile app
USB Port (for Firmware Upgrade): USB 2.0 × 1
Rated Power Consumption: 32 W
Dimensions (WHD): 12.20" × 3.46" × 14.37" (310 × 88 × 365 mm)
Weight: 6.39 lb. (2.9 kg)
