Bel Canto Design REF601M Stereo Amplifier - EACH



Pin It

Next → ← Previous

  • The Bel Canto REF601M monaural power amplifier is capable of a genuine 300w into 8ohms (600w into 4ohms), with an extremely low distortion rate of 0.003% and high damping factor of over 1000. It's capabilities and quality are helped by its Impedance Optimized Input Stage - a balanced high Common Mode Rejection, low output impedance driver.

    Another amazing aspect of its technology is its flat frequency response, which is +/-3dB from 0Hz all the way up to 50kHz.

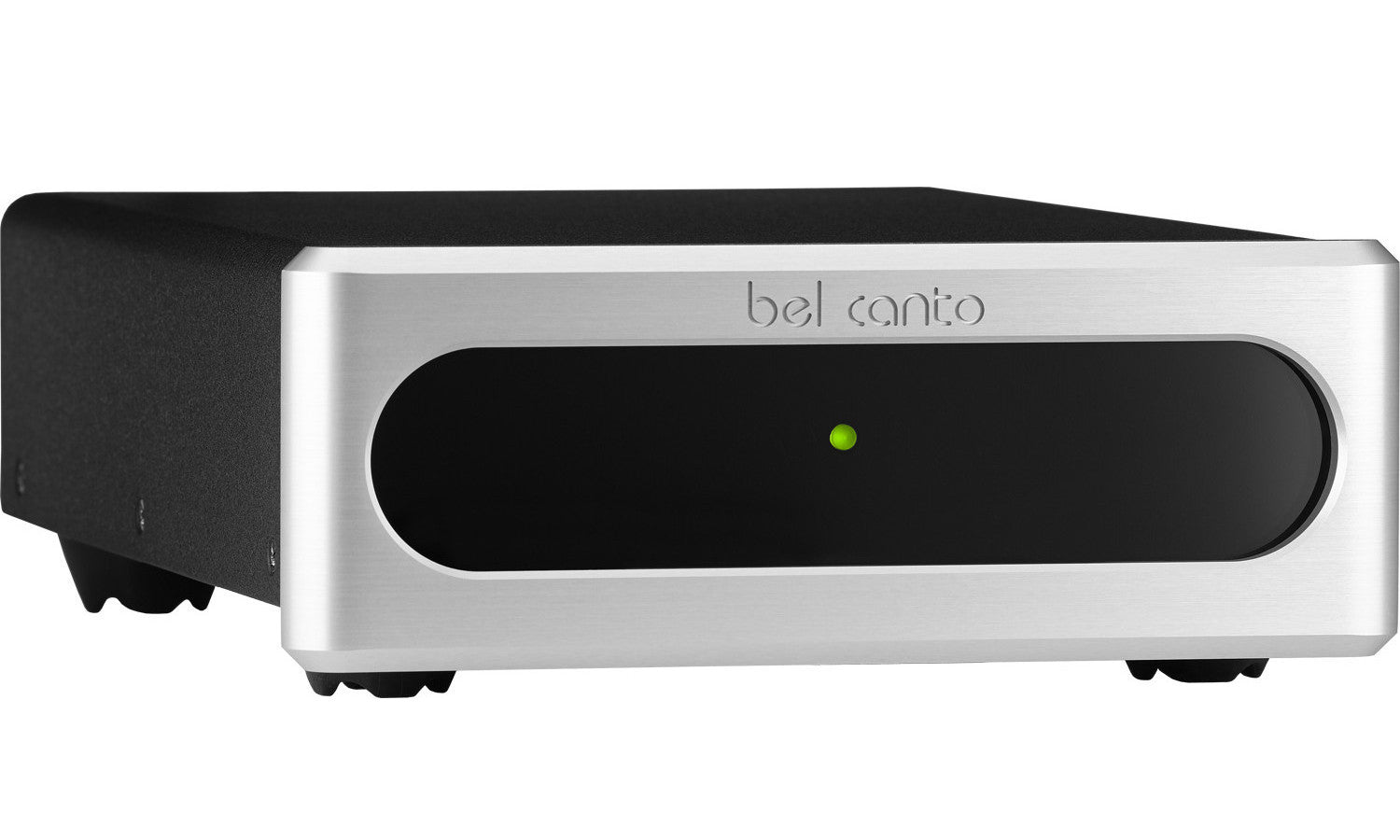

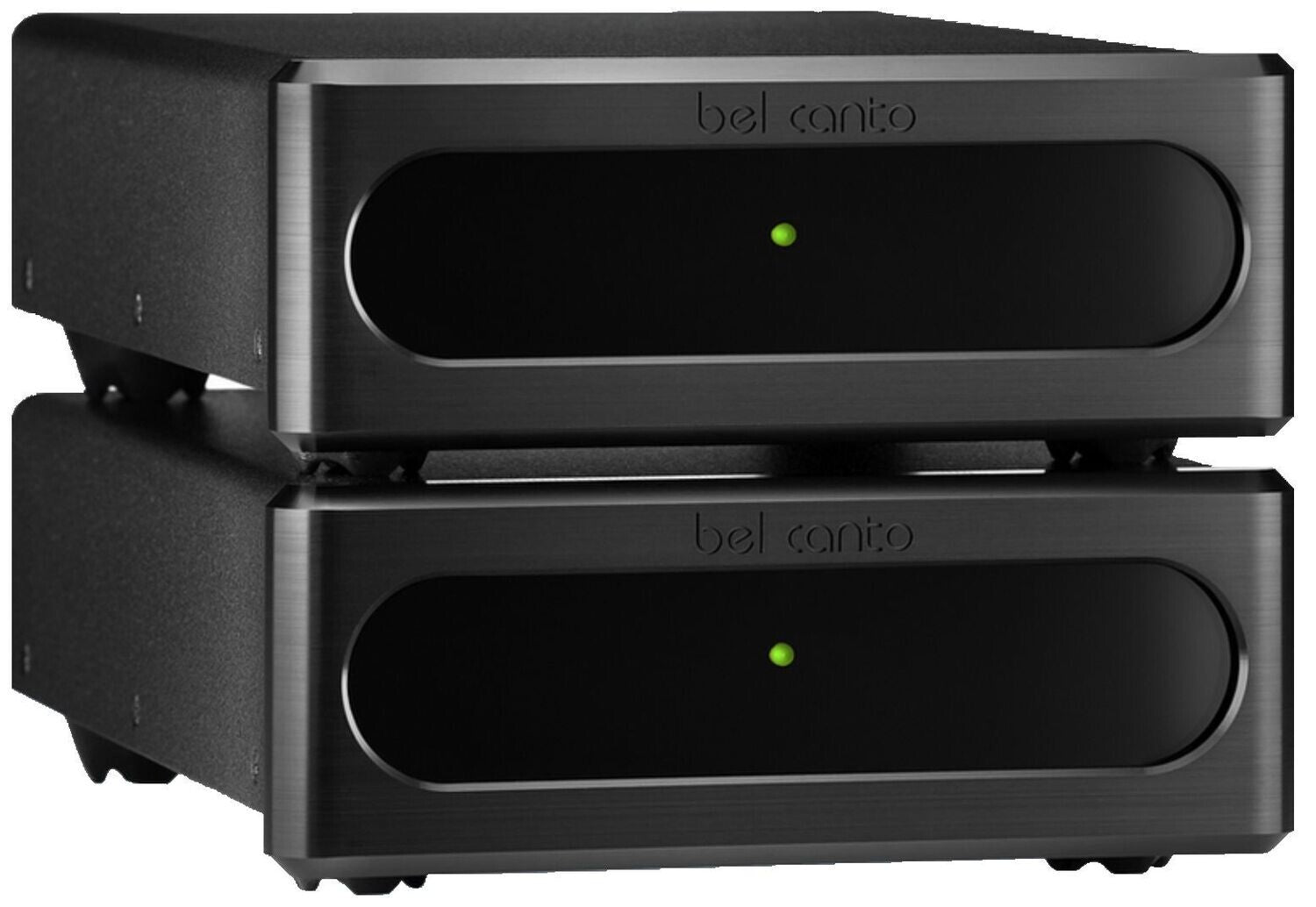

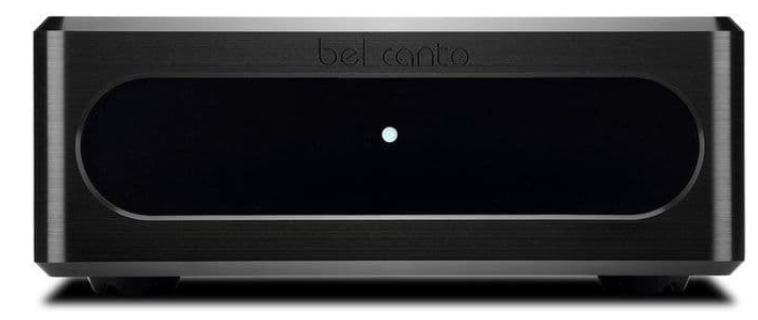

    Because the Ref600M mono power amplifier runs cool, thanks to its advanced Class D technology, it is ideal for tight or enclosed spaces, or even stacking for hi-fi or home theatre systems. The REF600M shares the same compact casing and brushed aluminium fascia of the rest of the e-One range

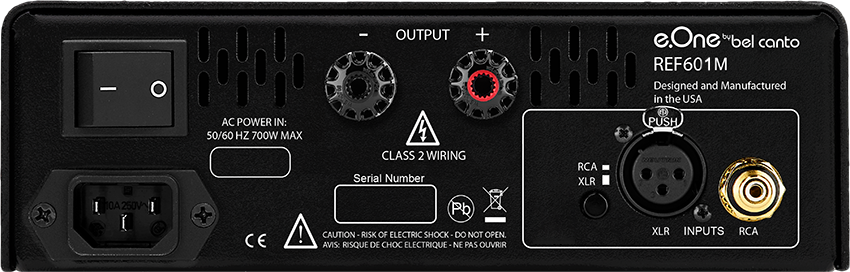

    A single analogue RCA input provides a connection for most amplifiers or pre-amplifiers, with the addition of a balanced XLR input for higher quality hi-fi components.

    A set of high quality WBT Nextgen 5-way binding posts provide a firm connection for spade or banana plugs for the best possible connection for your cable/loudspeakers


  • Maximum Power Output: 600W 4 ohms, 300W 8 ohms per channel
    Power Output 1% THD: 600W 4 ohms, 300W 8 ohms per channel
    Minimum Load: 2 ohms per channel
    Peak Output Current: 35 amperes per channel
    Frequency Response: +/-3 dB 0.0Hz-50KHz, all loads
    THD+N: 0.003% 1W, 1KHz, 4 ohms
    IMD (CCIF): 0.0003%, 1W, 14:15KHz, 4 ohms
    Output noise: 35uVRMS A-weighted 10Hz-20KHz
    Voltage gain: 27dB (single ended or balanced input)
    Damping factor: >1000
    Output Impedance at 100Hz: <8 milliohms
    Dynamic Range: 121dB
    Input Voltage for Max Output: 2Vrms
    Input connections: Single-ended RCA or balanced XLR
    RCA input impedance: 100Kohms
    RCA input impedance: 100Kohms
    Balanced input impedance: 200Kohms
    Output connections: 2-sets WBT Nextgen 5-way binding posts
    Power On usage: 19W
    Power Off usage: 0.0W
    Internally Set Operating Voltages: 100-120VAC or 230-240VAC 50/60 Hz
    Size: 8.5 x 3.5 x 12[inches], 216 x 88 x 305[mm] (WxHxD)
    Weight: 15 lbs, 7 Kg
