Matrix Audio proudly presents its first clock source product, meticulously designed for the streamers, DACs and CD players with synchronized reference clock inputs. With outstanding performance, it breathes new life into your audio system, unlocking a new realm of sound quality enhancement.
At the core of the SC-1 lies Matrix Audio's custom-made OCXO (Oven-Controlled Crystal Oscillator) module, utilizing an SC-cut crystal. Although this cutting process is highly complex, it enables the clock module to have superior phase noise and aging characteristics. With precise temperature control by the oven chamber, the crystal operates in a highly stable environment, effectively minimizing the impact of ambient temperature fluctuations on phase noise and jitter.
Four Independent Buffers. Synchronized Clock Outputs

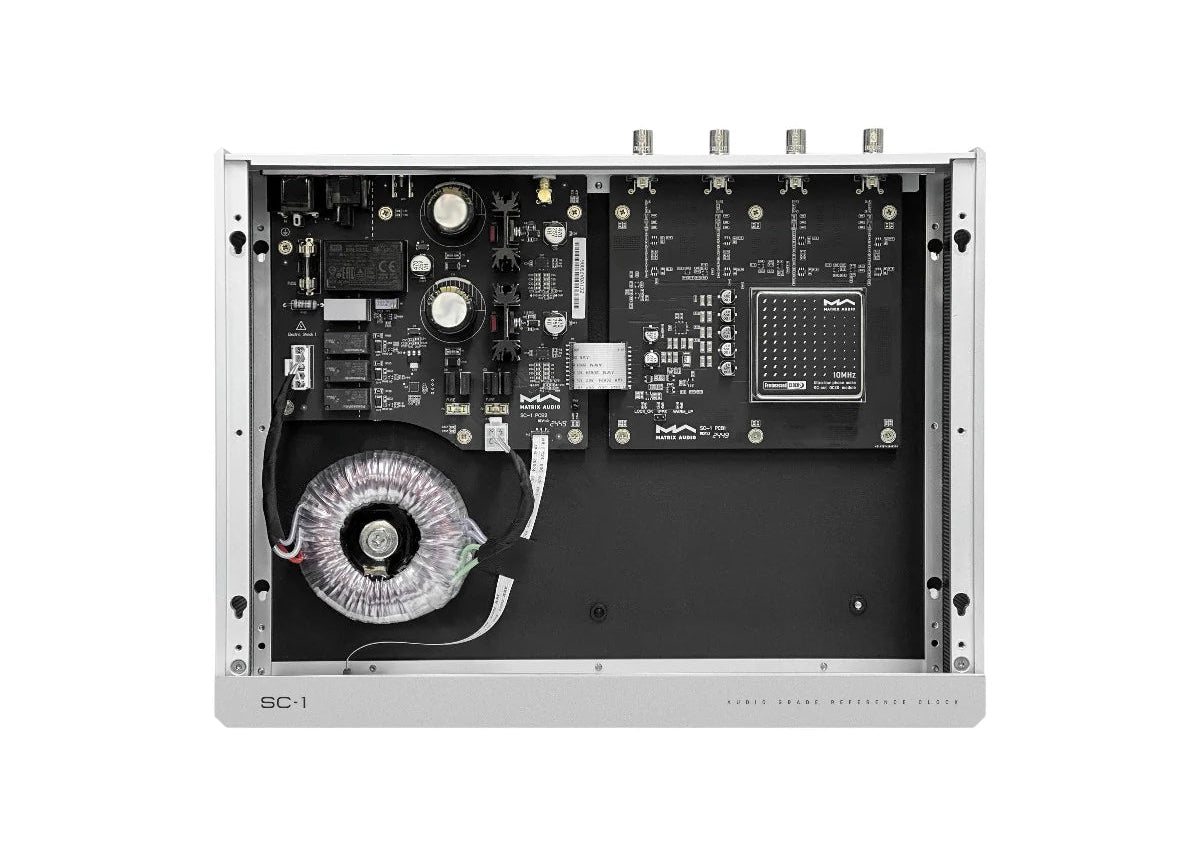

The SC-1 is equipped with four independent buffered clock outputs, all derived from the same source. While ensuring synchronized output, each output is equipped with its own buffering circuit, providing not only stable output impedance but also excellent driving capabilities. Whether using a single output or multiple outputs simultaneously, it delivers precise and stable performance, meeting your diverse requirements.
-118dBc
Ultra-low Phase Noise
For a clock source device, the output noise is closely related to the internal OCXO clock module. However, the actual output noise is not the same as the OCXO output noise, as the output buffering circuit introduces some performance loss. Therefore, phase noise at the output port of the device provides a more practical reference value. With the excellent design of SC-1, it achieves ultra-low phase noise of better than -118dBc at 1Hz frequency at the clock output ports, setting a new industry-leading standard and delivering purer, more stable clock signals.
Clear Status Indication
The SC-1 front panel features a warm-up status indicator LED. When the oven chamber is warming up, the indicator blinks; once the warm-up is complete, the indicator stays on. This simple and intuitive design allows you to instantly know the operating status of the device.
Customizable Output Waveforms
We offer two output waveform options: sine wave and square wave, catering to diverse device requirements or your demands. Square-wave output is particularly recommended, as it provides higher locking accuracy than sine-wave output, delivering a more precise clock signal.
Constant Performance
Even with the SC-1's precise clock system, slight drift or deviation over time is inevitable. To address this condition, we designed a 1PPS reference signal input terminal on the rear panel. When connected to an external second-based reference signal source, the device automatically performs calibration. The calibration status will be indicated by the LED on the front panel. What’s more, we offer free calibration services to ensure your device remains accurate.
CBVB Vibration Absorption System
Equipped with Matrix Audio’s CBVB vibration absorption foot pads, the SC-1 effectively isolates external vibrations, minimizing interference and ensuring the clock remains in a stable operating state. This delivers pure and stable audio clock signals for an enhanced listening experience.
Matrix Design

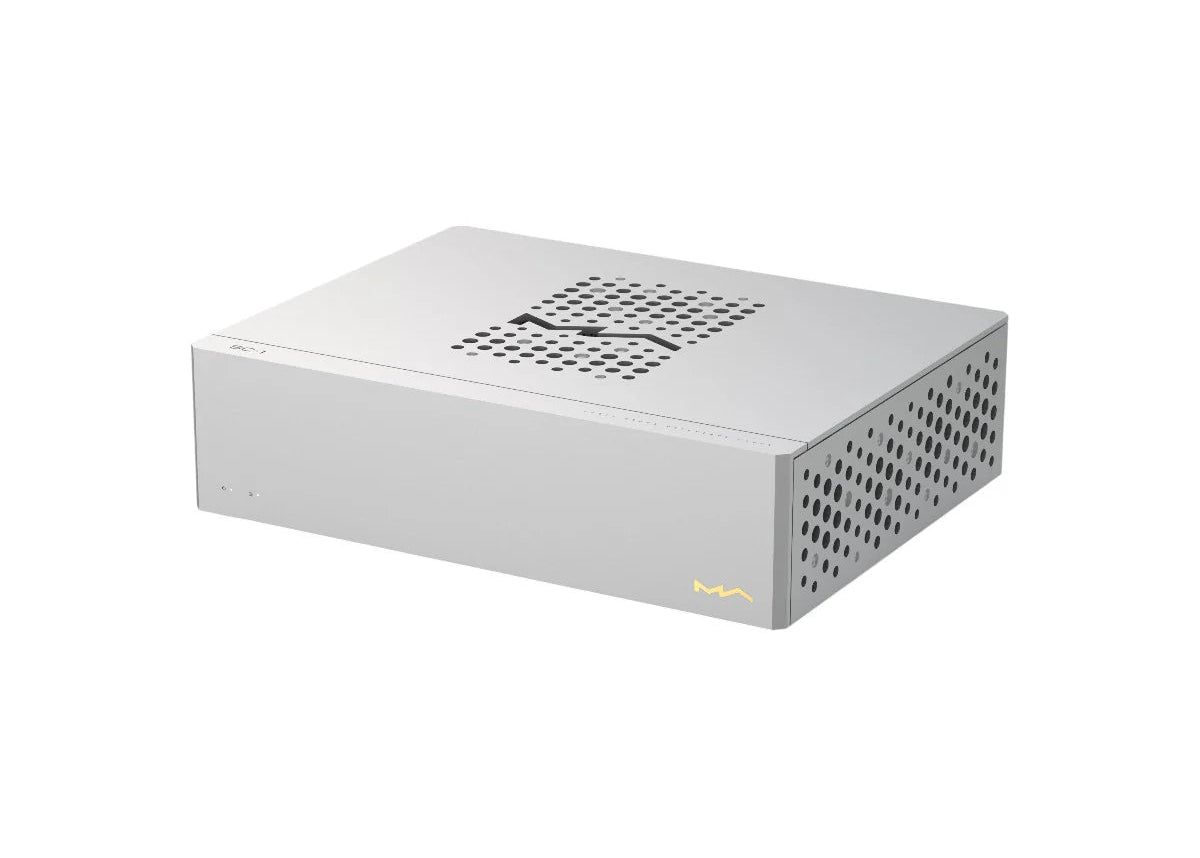

Seamlessly continuing Matrix Audio's signature design language, the SC-1 embodies unity in every detail. Carefully crafted perforations and uniquely designed bevel edges harmonize to create the distinctive visual profile of Matrix Audio products, showcasing the brand's unparalleled aesthetic philosophy.
Automatic Linear Power Supply
SC-1 features an advanced linear power supply with automatic voltage detection. It is equipped with sensitive voltage detection capabilities, enabling precise transformer winding switching based on the input voltage. Additionally, overvoltage and undervoltage protection functions are always on standby, providing comprehensive protection for stable device operation. Notably, dual multi-stage regulator supplies independently power the oven control circuit and the clock circuit, effectively eliminating any interference from oven chamber power fluctuations on the clock circuit. This exceptional design ensures superior clock signal quality from every aspect.
-
Features:
Ultra-low phase noise of ≤ -118 dBc/Hz at 1Hz, measured directly at the output port — setting a new industry-leading benchmark
Four independent buffered BNC clock outputs, all derived from the same source for perfectly synchronized, stable performance
Selectable output waveforms — sine wave or square wave — to maximize locking accuracy for your specific devices
1PPS reference signal input for automatic self-calibration, with free calibration service included
CBVB vibration absorption foot pads to isolate external vibrations and maintain clock stability
Advanced automatic linear power supply with dual multi-stage regulators independently powering the oven and clock circuits
Front-panel LED warm-up status indicator for simple, at-a-glance monitoring of device readiness
Signature Matrix Audio chassis design featuring precision perforations and bevel edges for a refined aesthetic
-
Specifications:
Physical Specifications Weight 4.4 kg (9.7 lbs) Width 330 mm (12.99 inches) Depth 267 mm (10.51 inches) Height 97 mm (3.82 inches) Technical Specifications Oscillator Type 10.000 MHz Ultra-Low Phase Noise Oven-Controlled SC Cut Crystal Oscillator Frequency Accuracy (shipped) <±0.01 ppm Frequency Stability vs. Temperature <0.003 ppm (-40°C to +70°C) Short-Term Stability <5E-13 @ τ = 1s Warm-Up Time <5 min @ 25°C Output Specifications Output Ports 4 × BNC Independent Driver Buffers Output Waveform Sine Wave or Square Wave (fixed at the factory according to custom requirements) Output Frequency 10.000 MHz Output Level 0.5 Vrms @ Sine Wave / 1 Vrms @ Square Wave Output Impedance 50Ω Phase Noise Specifications Measurement Point Measured at output port of SC-1 Phase Noise @ 1 Hz ≤ -118 dBc/Hz Phase Noise @ 10 Hz ≤ -140 dBc/Hz Phase Noise @ 100 Hz ≤ -150 dBc/Hz Phase Noise @ 1000 Hz ≤ -160 dBc/Hz Noise Floor ≤ -170 dBc/Hz Jitter Specifications Measurement Point Measured at SC-1 output port Jitter (1–100 Hz) 20 fs Power Specifications Power Voltage AC 100V–120V 50/60Hz or AC 220V–240V 50/60Hz, Auto-Adaptive Maximum Power Consumption <20W Accessories Included Accessories Power Cable × 1
Printed Material × 1
