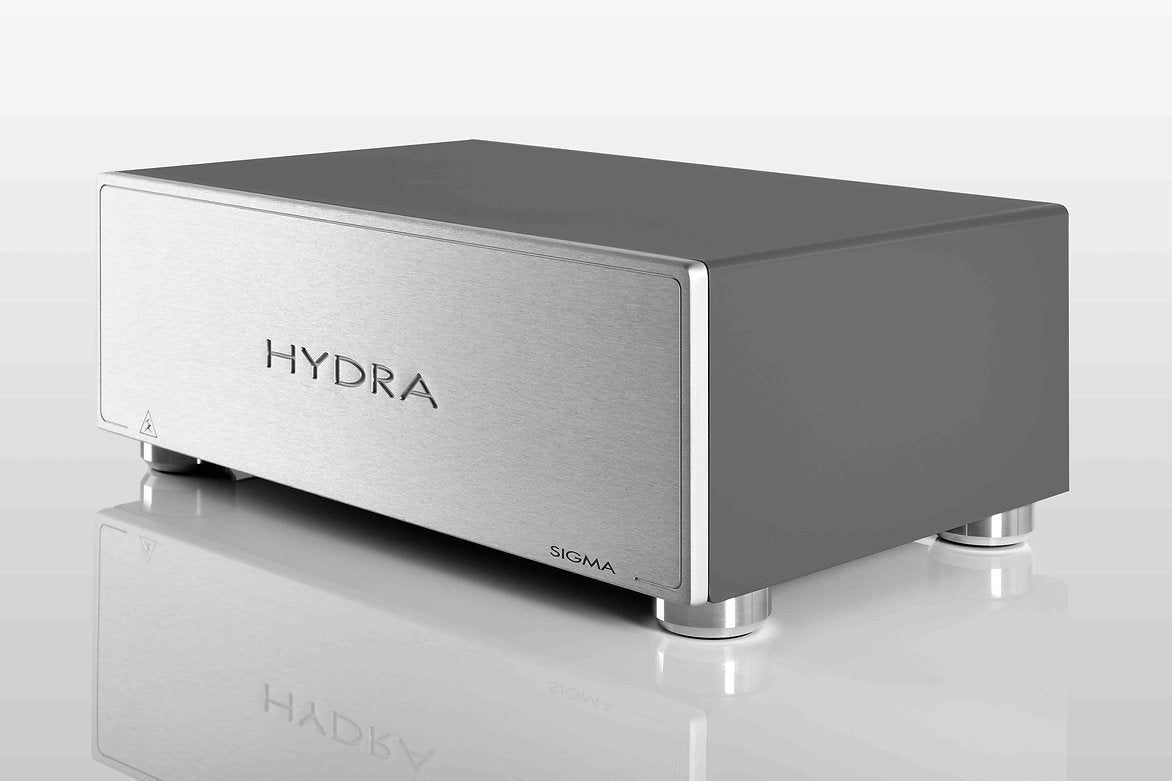

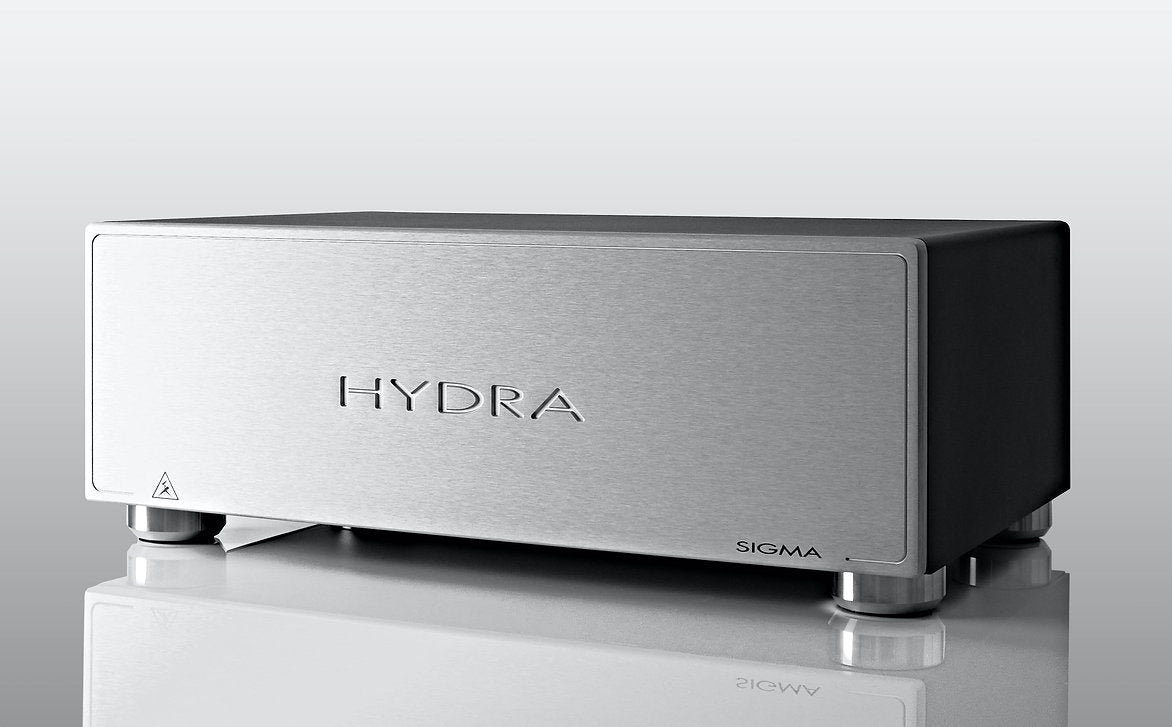

The Sigma S12 represents the jewel of Shunyata Research’s Performance Series of power distributors. Developed using Shunyata Research’s award winning Hydra Triton v3 design platform, Sigma S12 offers world-class performance at a price that belies the science and innovation within its design. From its patented Noise Isolation Chambers to Shunyata’s exclusive solid copper CopperConn outlets, every part and material in the Sigma S12 has been custom designed for performance without compromise.
Sigma S12 is massively over-rated to handle even the most current hungry amps yet true to its passive nature runs cool and quiet in operation. The twelve outlets in the Sigma S12 can accommodate large systems while its 3-stages of noise isolation offers the most stunning aural and visual images in its class. Although packed with 20+ years of Shunyata’s most evolved technologies, Sigma S12 comes in at a price point that makes it one of the best values in the market today.
The S12 has twelve outlets which makes it the ideal solution for large systems or for home theater systems. If you need high capacity but want near reference level performance, the Sigma S12 is your top choice.
The NIC™ (Noise Isolation Chamber) is a patented technology that reduces high frequency power line noise.
NICs™ use a non-reactive ferroelectric substance that actually absorbs high frequency noise. This reduces noise without any of the negatives associated with power filter coils, capacitors and transformers.
CCI™ (Component-to-Component Isolation) is one of the most significant but often overlooked aspects to power system performance. The CCI™ filter consists of a proprietary multi-stage filter that reduces electrical noise and interference generated by a component’s power supply.
Long-term exposure to air can oxidize and corrode wiring and sensitive electronic components. All of the filters, PCBs, connections and internal wiring are contained within a monolithic enclosure and then potted with ceramic materials that hermetically seal the contents. This protects the circuits and wiring from humidity and oxidation, and eliminates internal vibration between components. This unique construction methodology delivers exceptional and consistent performance that will not degrade over time.
Significant amounts of noise exist on the ground plane of power lines. The ground wires can act as antennae, picking up electrical noise that can degrade the performance or operation of the electronic components. Ground Plane Noise Reduction (GP-NR™) is a proprietary technology developed by Shunyata Research to significantly reduce ground-plane noise; improving low-level resolution and clarity.

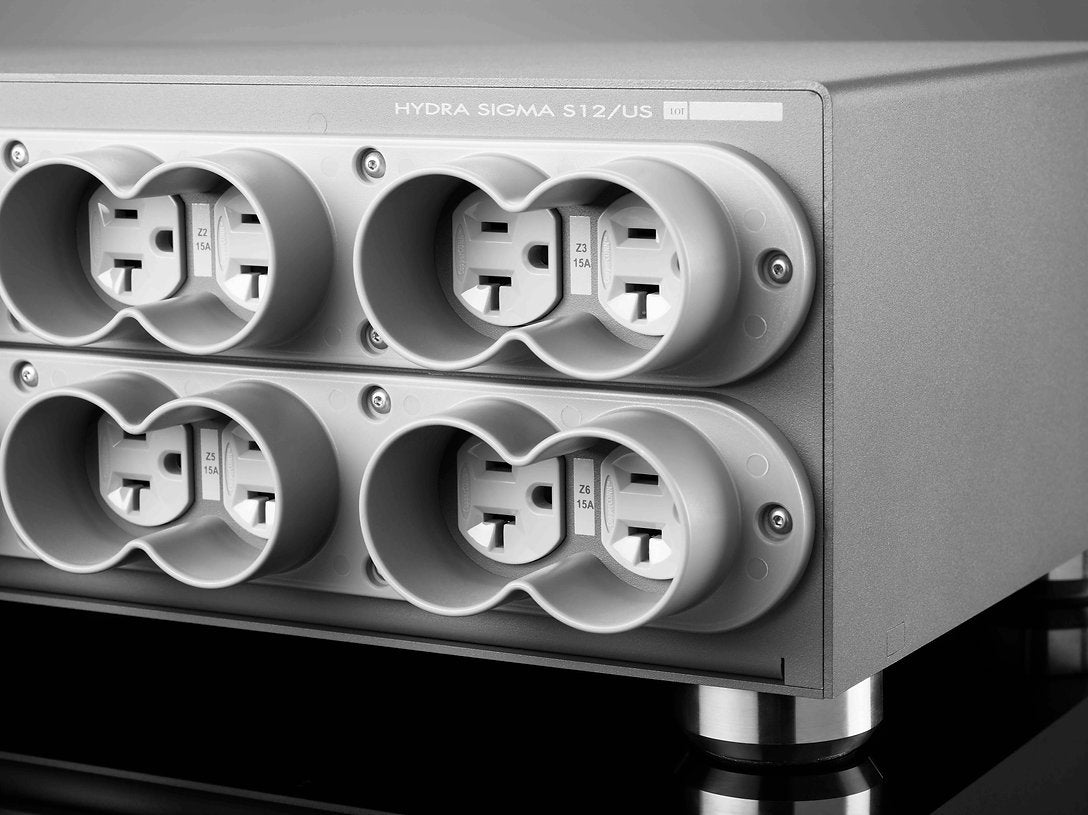

The Cable Cradle surrounds and supports the weight of the power cable, preventing it from pulling away from the outlet. This system is designed to ensure reliable and secure electrical connections.
CopperCONN’s™ internal metals are culled from solid copper and use a high-tension spring-loaded contacts for vice-like grip. This contributes to a measurable improvement in DTCD™ performance and a correspondingly obvious difference in audible performance.
Shunyata Research’s ArNi® conductors are designed to be the finest quality wire available for power and audio purposes. They start life using the highest purity copper available – OFE C10100 (or Ohno single crystal). Then they are formed into “virtual hollow tubes” that we call VTX™. The core of the conductor is completely hollow forcing the current to only travel through the periphery of the conductor, therby eliminating skin effects and random eddy currents.
And finally, every ArNi® wire undergoes our proprietary KPIP™ process.
Over-current protection is a requirement for today’s high current audio power distributors. The vast majority of manufacturers use an inexpensive thermal fuse or breaker. Both are specifically designed to heat up as the current level rises. This causes voltage drops, increased contact impedance, thermal noise, excessive heat generation and current limiting effects. There is a better solution — the hydraulic electromagnetic breaker that utilizes low-impedance relays and a sensing coil that reads the current level without heating up or limiting current.
Recognizing that vibration control is important to overall performance, our chassis are made with optimally dampened steel and aluminum, rather than plastic or thin-wall sheet metals.
Shunyata Research’s proprietary Kinetic Phase Inversion Process includes four days of continuous KPIP™ processing to dramatically reduce burn-in time and significantly improve sonic performance, delivering a relaxed and life-like presentation.
Simple crimping, soldering, brazing and screws are all inferior methods of joining two wires or terminals together. Sonic welding uses high-energy sonic waves to literally join two metals together at a molecular level and cold-welding uses high-energy pneumatic pressure to bond metals. Shunyata Research uses both methods to secure connections that do not degrade over time.
Shunyata Research operates its own onsite Cryogenics International computer-controlled cryogenic plant. Liquid nitrogen is used to reduce the temperature of the contents to -320 degrees Fahrenheit. The computer monitors and lowers the temperature by a single degree at a time to prevent thermal shock. We use this process to improve the performance of connectors and various electrical components that are used in our power products and signal cabling.
90-125 VAC r.m.s. unregulated (US)
220-240 VAC r.m.s. unregulated (EU, AS, AU)
Input Current Ratings:
Maximum Continuous Current: 20A (US, AS)
Maximum Continuous Current: 16A (EU, AU)
Output Current Ratings:
Max Current/Outlet: 20A (US, AS)
Max Current/Socket: 16A (EU, AU)
Maximum Transient Protection: 40,000 A @ 8/50 μs
Hydraulic Electromagnetic Breaker
8 gauge ArNi® VTX™ Buss System
10 gauge ArNi® VTX™ Wiring
Ratings: 600 V 105° C
Input to Output (100 kHz – 30 MHz): > 50 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 60 dB reduction
Outlets & Connectors:
Zones of Isolation: 6 Zones
Inlet: IEC C19RUS Outlets: 12 NEMA5-20R
Vibration dampening panels (internal)
AC outlet dampening gaskets
Shunyata Isolation SSF-50 Footer
Aluminum and steel chassis
Anodized, aluminum faceplate
Length: 127 mm
Diameter: 38 mm
Width: 17.0 inches (43.2 cm)
Depth: 11.5 inches (29.2 cm)
Height: 6.3 inches (16.0 cm)
Weight: 19.5 lbs (8.85 kg)
