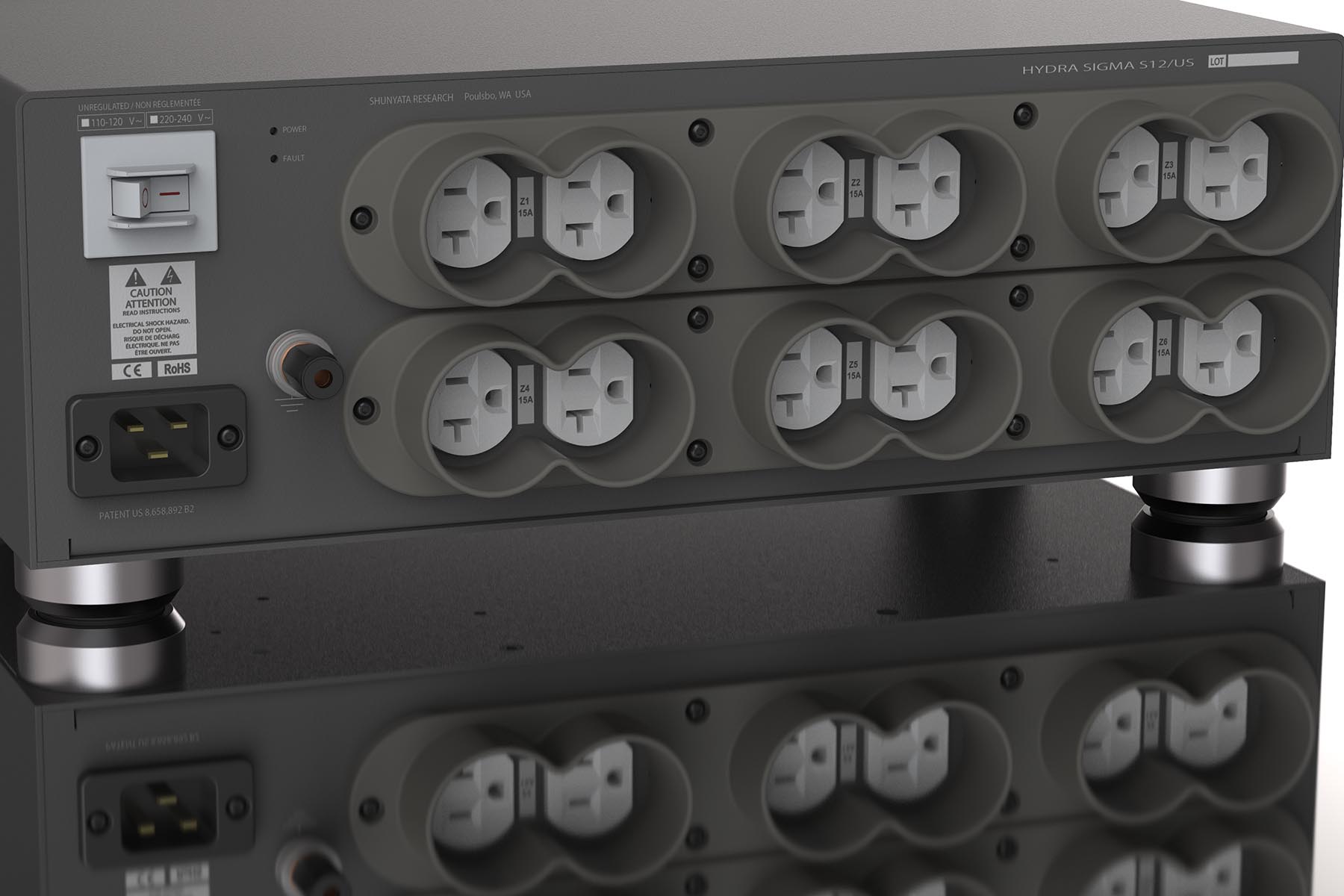

The Hydra Sigma S12 features 12 outlets, patented NIC (Noise Isolation Chamber), MED filter technology, CopperCONN outlets and the exclusive Cable Cradle that support high-end power cables.
REQUIRES 20A IEC POWER CORD - not included
Shunyata Research’s exclusive CCI™ filter isolation technology isolates one component from the next and provides over 60dB of noise isolation when competitive products max out at 24-29dB.

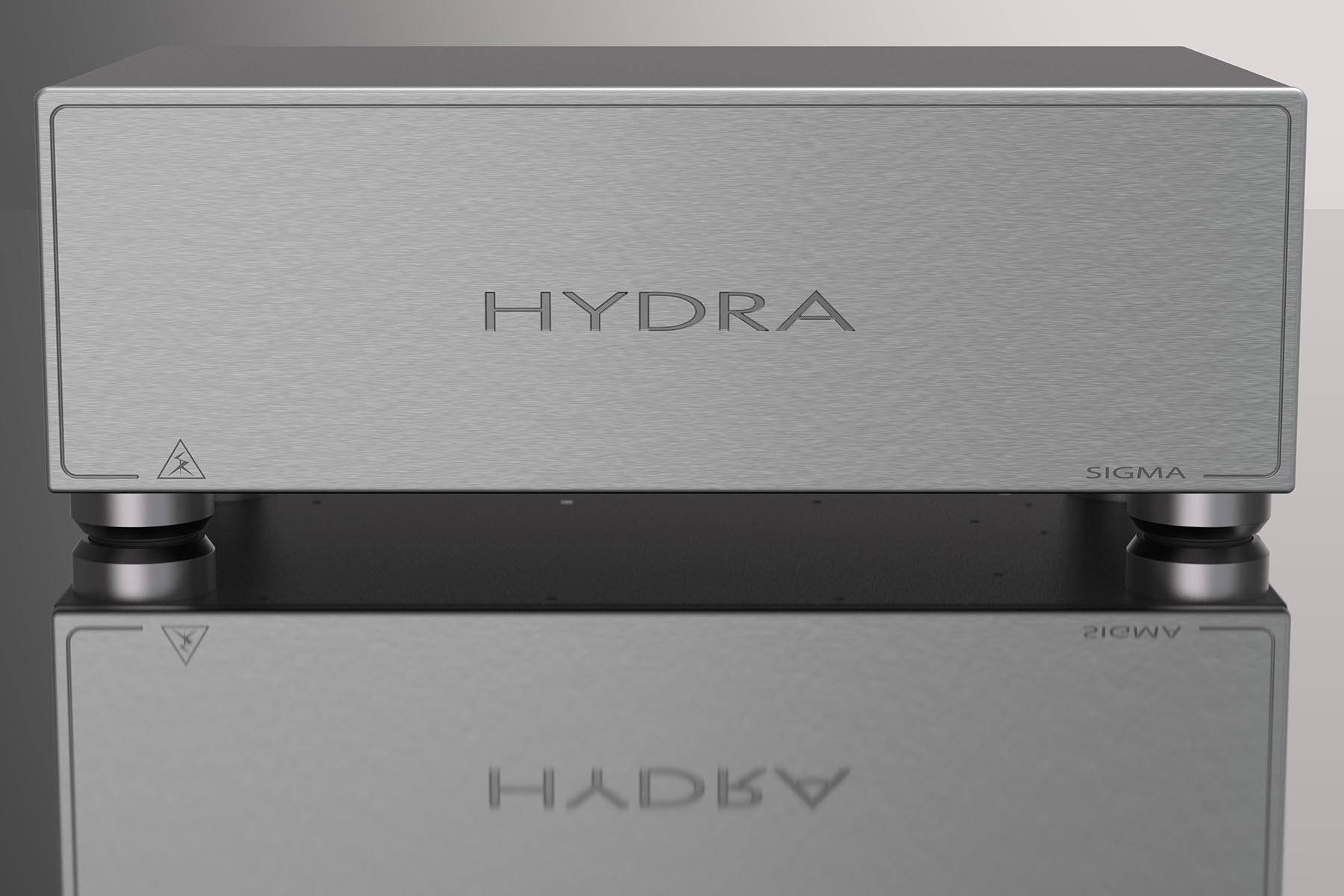

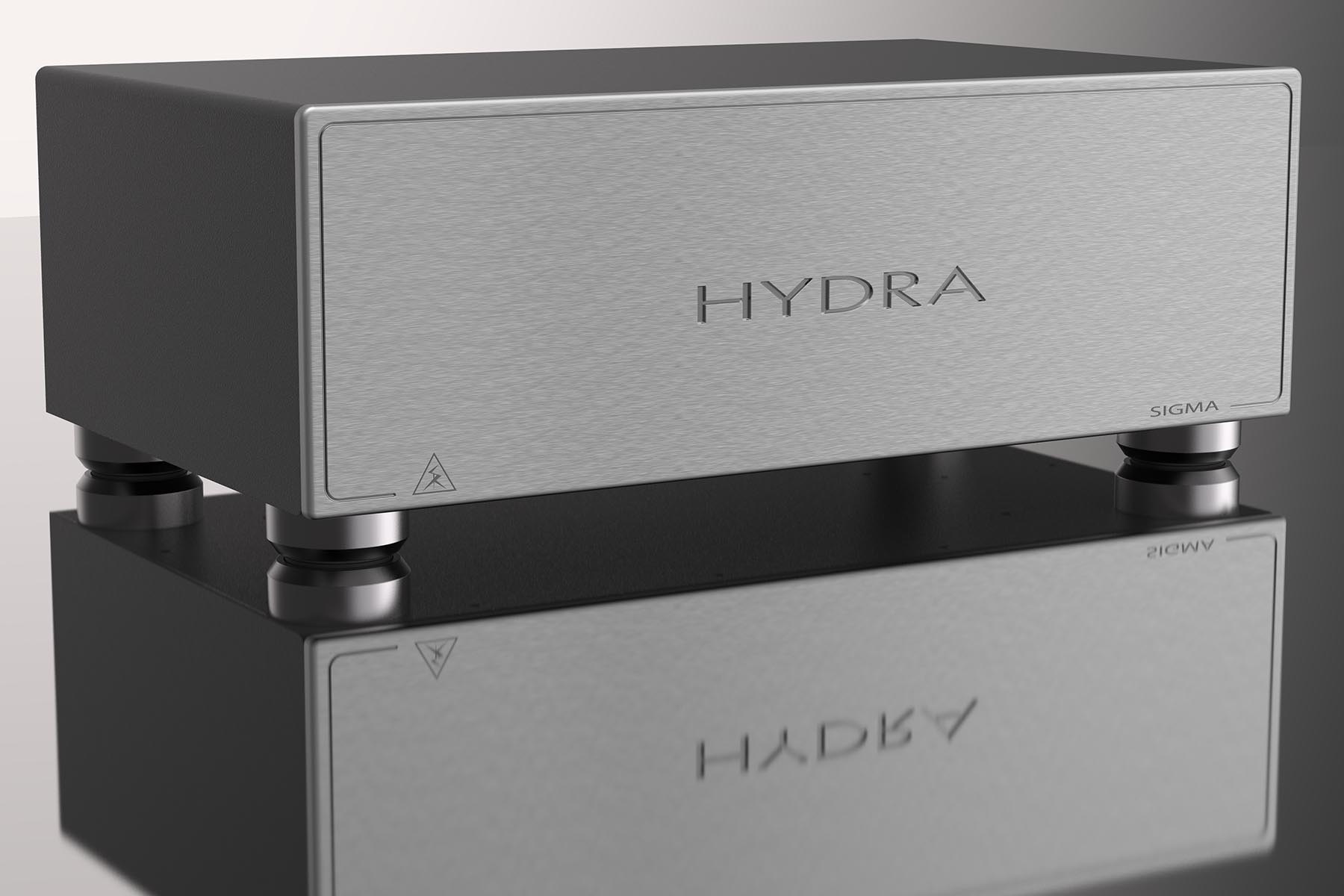

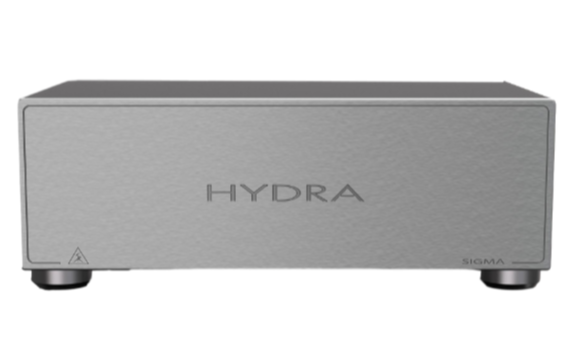

Shunyata Research’s Hydra Sigma S12 delivers state-of-the-art performance in an affordable, stunningly elegant package.
The Hydra Sigma S12 features patented technologies and proprietary components that are simply unavailable in other products. Shunyata Research power distributors supply power to multiple components while reducing noise from the power line and intercepting component-to-component noise.
DTCD® DESIGNED (Dynamic Transient Current Delivery)
The Hydra Sigma S12 was designed using Shunyata Research’s DTCD® analyzer. DTCD® Analysis measures instantaneous current through extremely low-impedance electrical conductors and contacts. Shunyata Research uses it to optimize the design and performance of our power conditioners and power cabling.
CCI™ NOISE REDUCTION
Traditional power conditioners are designed to block incoming noise from outside the home but do not address the noise that is generated by the electronic components themselves. In fact, most conditioners reflect noise back into other components connected to the power conditioner. CCI™ (Component-to-Component Interference) is one of the most significant but often overlooked aspects to power system performance. Shunyata Research’s CCI™ filter consists of a proprietary multi-stage filter that reduces electrical noise and power supply generated interference.
NIC™ NOISE REDUCTION
The NIC™ (Noise Isolation Chamber) is a patented technology that reduces high-frequency power line noise. NICs™ use a non-reactive ferroelectric substance that actually absorbs high-frequency noise. This allows the Hydra Sigma S12 power distributor to reduce noise without any of the negatives associated with conventional power conditioner designs. [ US Patent 8,658,892 ]
GP-NR NOISE REDUCTION
When it comes to reducing noise, engineers focus primarily on the AC electrical lines, with little thought given to the ground lines. The incoming ground line and the internal power conditioner ground plane can actually act as antennae, drawing in electrical noise that may interfere with the operation of the connected components. Ground Plane Noise Reduction is a proprietary technology developed by Shunyata Research to significantly reduce interference caused by this phenomenon, thereby providing a more pure audio experience.
ZONES OF ISOLATION

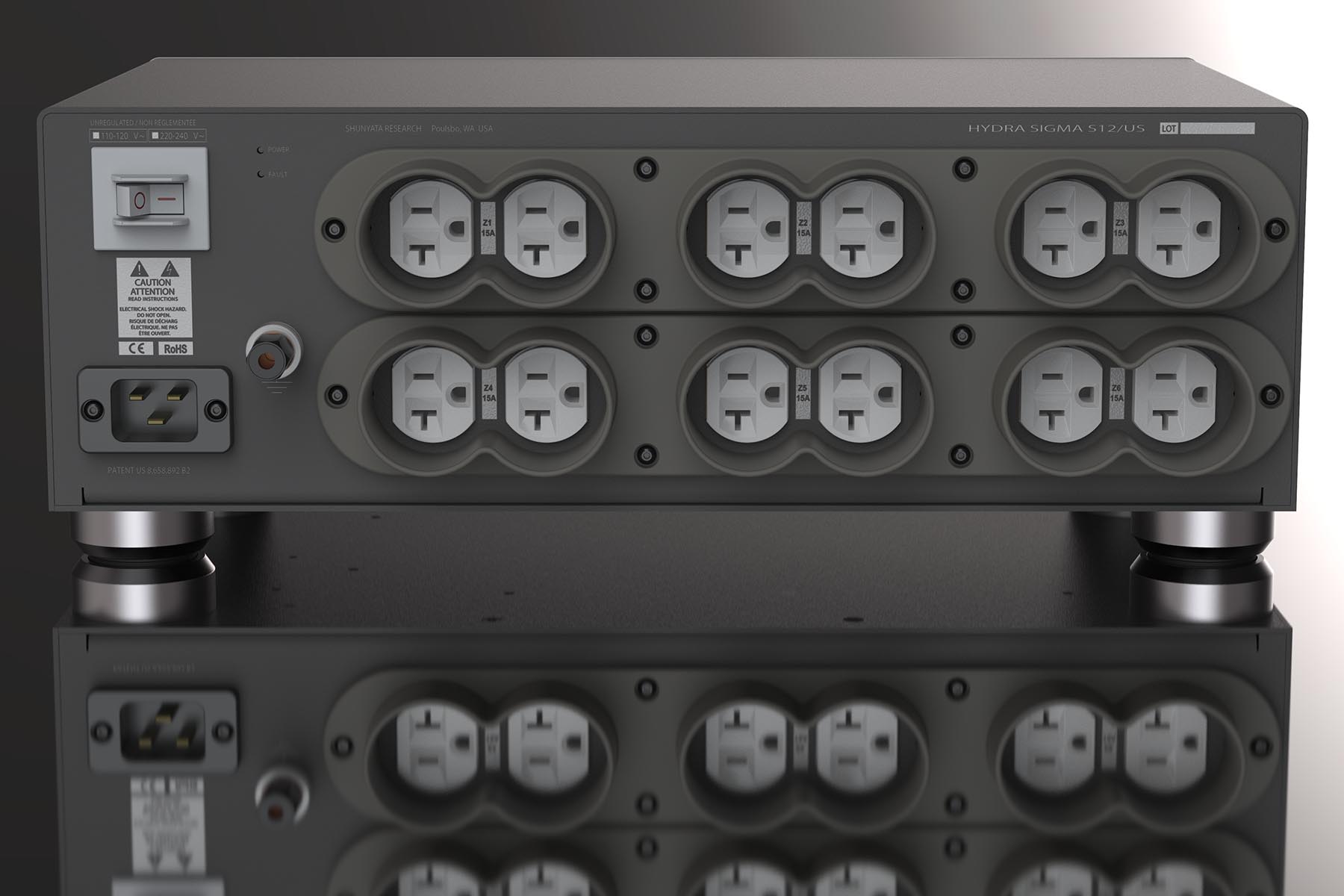

The Hydra Sigma S12 features six zones of isolation configured in such a manner that each duplex is individually isolated. This design principle provides for high levels of noise isolation while delivering exceptional audio and video performance.
HIGH CURRENT CAPABILITY
The Hydra Sigma S12 is rated at a full 20 Amps of continuous current, ensuring unfettered power delivery to complex entertainment systems, including those with high-powered amplifiers. Advanced electromagnetic breakers in addition to massive buss and 8-gauge ArNi® provide exceptional dynamic contrast and bass impact.
HYDRAULIC ELECTROMAGNETIC BREAKER
Common power conditioners use fuses or thermal breakers for over-current protection. When heavily loaded, they may cause voltage drops, increased contact impedance, thermal noise, excessive heat generation, and current-limiting effects. The Hydra Sigma S12 uses a more advanced solution called a hydraulic electromagnetic breaker that operates right up to the maximum current rating without the limitations of fuses or thermal breakers.
All commercial grade connectors and virtually all audiophile grade connectors are made from a brass or bronze base metal. Some audiophile grade connectors may get a plating of nickel, silver, gold or rhodium which is only a few millionths of an inch thick. The Shunyata Research CopperCONN® is constructed using solid, high purity, oxygen-free copper as the base metal with a flash coating to protect the copper from oxidation. The CopperCONN® outlets and connectors are designed to provide superior grip strength and contact integrity. This contributes to a measurable improvement in DTCD® performance and a correspondingly obvious difference in audible performance.
CABLE CRADLE SUPPORT SYSTEM
Shunyata Research includes a unique solution to the problem of heavy high-end power cables. The Cable Cradle supports the weight of the power cables, preventing them from pulling away from the outlet. This system is designed to ensure reliable and secure electrical connections.
Shunyata Research has developed a proprietary line of ArNi® conductors. They are made from certified OFE C10100 (Certified ASTM F68) copper. The wire strands are arrayed in a unique hollow tube VTX™ geometry that reduces skin effects. ArNi® conductors are treated with Shunyata Research’s exclusive Kinetic Phase Inversion Process (KPIP™) for a period of 8 days.
Mechanical vibration can be very destructive to system performance. The Hydra Sigma S12 was designed from its inception to include advanced forms of vibration control that improve the recovery of subtle musical detail and nuance. All chassis panels and internal structures are treated with vibration-dampening materials. The outlets are isolated from the chassis with vibration-dampening gaskets that reduce vibration conducted through the AC cables. All internal modules, filters, and electronics are encapsulated in a vibration-absorbent compound.
KPIP™ “BLACKBIRD” PROCESSOR
Each Hydra Sigma S12 is treated with Shunyata Research’s proprietary Kinetic Phase Inversion Process (KPIP™). The KPIP™ dramatically reduces burn-in time and significantly improves sonic performance.
Many of the electrical components in the Hydra Sigma S12 are treated in Shunyata Research’s own advanced computer-controlled cryogenics lab. Further cryogenic treatment of the unit is strongly discouraged, and will void your warranty.
SSF-50 SHUNYATA FOOTER
The Hydra Sigma S12 includes Shunyata Research’s SSF-50 isolation footers, specifically designed to reduce vibration from the supporting platform. Power distributors react very similarly to amplifiers in relationship to floor-borne vibration. After researching multiple forms of energy dissipation methods, Shunyata Research developed the SSF-50 to provide the performance characteristics of an expensive after-market isolator but at a fraction of the cost.
– 90-125 VAC r.m.s. unregulated (US)
INPUT CURRENT RATINGS
– US/Asia maximum continuous current: 20A
OUTPUT CURRENT RATINGS
– US/Asia max current/outlet: 15A
– Maximum transient protection: 40,000 A @ 8/50 μs
– Hydraulic electromagnetic breaker
– Input to Output (100 kHz – 30 MHz): > 50 dB reduction
– Zone to Zone (100 kHz – 30 MHz): > 60 dB reduction
OUTLETS & CONNECTORS
– Zones of Isolation: 6 Zones
– Inlet: IEC C19R- US outlets: 12 NEMA 5-20R
– AS outlets: 12 NEMA 5-20R
– 8 gauge ArNi® VTX Buss system
– 10 gauge ArNi® VTX outlet wiring
– Ratings: 600 VAC 105° C
– Vibration dampening panels (internal)
– AC outlet dampening gaskets
– Shunyata Isolation SSF-50 Footer
– All aluminum chassis
– Anodized, brushed aluminum faceplate
– Width: 17 inches (43.2 cm)
– Depth: 11.5 inches (29.2 cm)
– Height: 6.3 inches (16 cm)
– Weight: 19.5 lbs (8.85 kg)
