Exceptional playback of Compact Disc and high-res audio files
Part of LUXMAN’s NeoClassico II Series, the compact D-N150 combines uncompromising audiophile design with exceptional flexibility.Audio bona fides include 5mm thick aluminum chassis and internal parts selected through exhaustive listening tests.Flexibility takes the form of coax, optical and USB digital inputs for converting hi-res audio files to gorgeous, unconstrained analog sound.

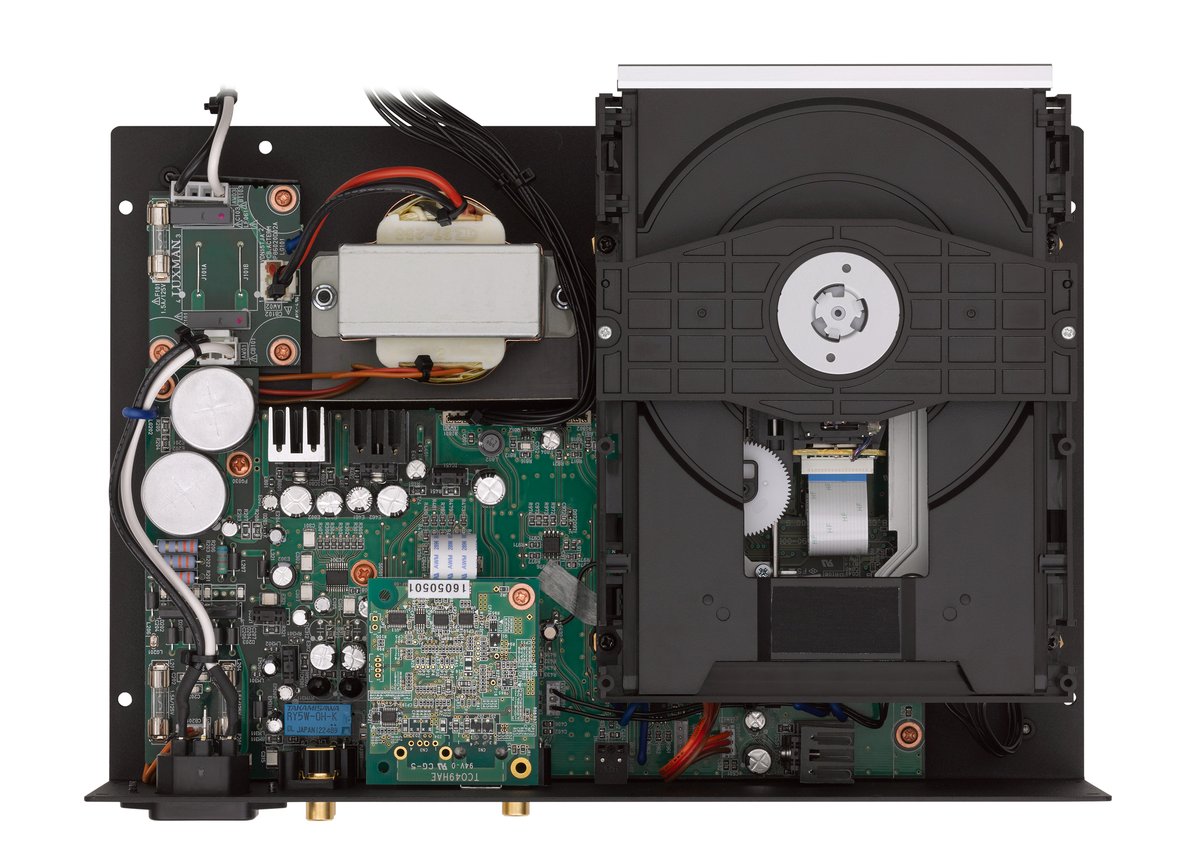

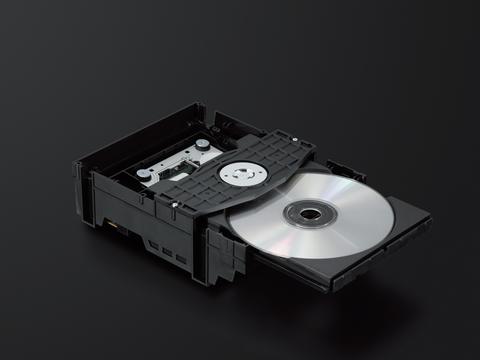

The D-N150 has the same CD transport as LUXMAN’s highly regarded D-380. Carefully auditioned parts include the power transformer, filtering capacitors, Schottky barrier diodes and LUXMAN’s own Oxygen Free Copper (OFC) wire. The Texas Instruments PCM5102A digital-to-analog converter helps deliver a signal-to-noise ratio of 110 dB, presenting music against a background very close to absolute silence.

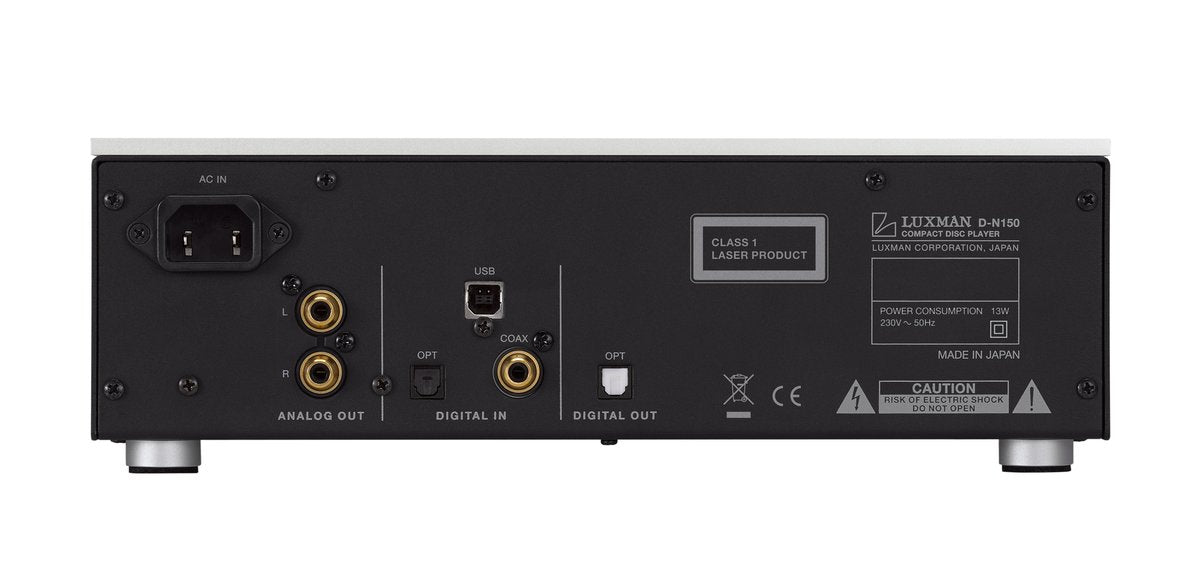

You can take advantage of the digital-to-analog converter built into the D-N150 to reproduce external sources. Coaxial and optical inputs accept S/PDIF signals up to 192 kHz/24 bits, while the USB input accepts personal computer PCM signals up to 192 kHz/32 bits. The D-N150 is the first LUXMAN product to support Bulk Pet ®* transmission in addition to conventional, isochronous USB transfer. This achieves exceptional sound by reducing the processing load on the DAC. Optical output empowers you to use the D-N150 as a single DAC hub.*Bulk Pet® is a registered trademark of INTERFACE Co.,LTD.

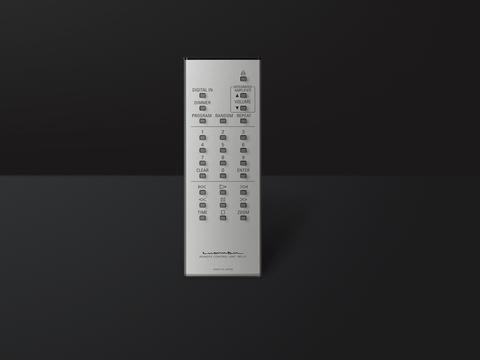

The aluminum remote control feels substantial in your hand. This remote operates not only the D-N150 digital player but also volume on the matching SQ-N150 amplifier.

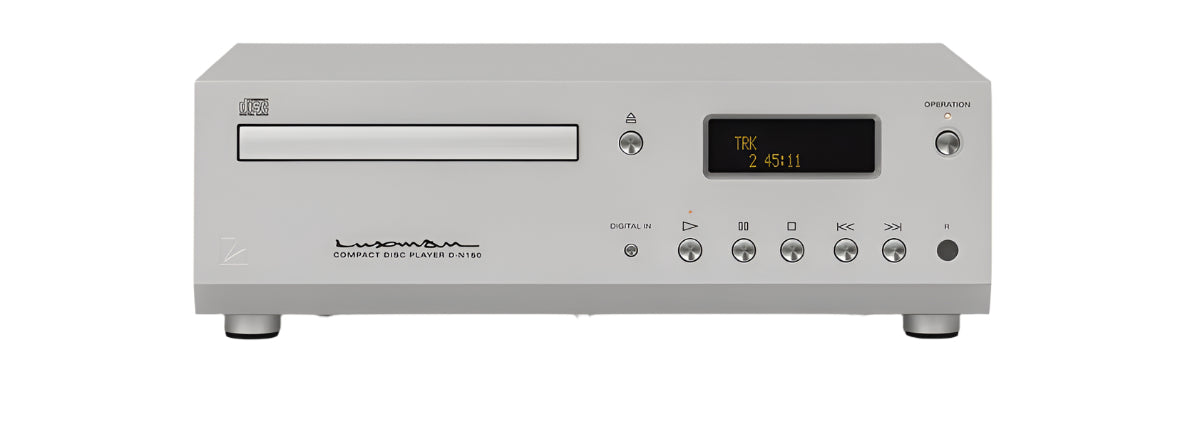

The D-N150 has compact “A4” footprint, just 210 x 297 mm (8-1/4 x 11-3/4 inches), not including projecting parts. The 5 mm thick aluminum chassis features an elegant, blasted white finish. Hairline finished controls provide a subtle contrast between white and silver.
|Applicable disc||2channel CD, CD-R|
|Supported sampling frequencies||USB input : 32kHz, 44.1kHz, 48kHz, 88.2kHz
96kHz, 176.4kHz, 192kHz(16, 24, 32bits)
COAX/OPT input : 32kHz, 44.1kHz, 48kHz, 88.2kHz
96kHz, 176.4kHz, 192kHz (16, 20, 24bits)
|Analog output voltage / impedance||2.1V/300Ω|
|Frequency response||CD :5Hz to 20kHz (+0, -0.5dB)
COAX/OPT/USB :5Hz to 50kHz (+0, -3.0dB)
|Total harmonic distortion||0.005%|
|S/N ratio (IHF-A)||110dB|
|Power supply||230V~(50Hz) / 115V~(60Hz)|
|External dimensions||297(W) x 98(H) x 222(D) mm
4mm front panel knob of and 8mm rear panel
terminals are included in the depth measurement
|Net weight||5.0kg(main unit)|
|Accessories||Remote control(RD-27),Power cable|
