JBL L100 Classic Monitor Loudspeakers - PAIR



Pin It
  • AUTOMATED ORDERING UNAVAILABLE
    CALL 855.991.8181 or EMAIL sales@dedicatedaudio.com  FOR PURCHASE ASSISTANCE

    In 1970, JBL released the iconic L100 Loudspeaker. Over the years, the L100 became the bestselling loudspeaker in JBL’s history. In 2018, we are proud to bring you the JBL L100 Classic, a modern take on a time-honored legend. The Classic features vintage styling, including a retro-inspired design and iconic Quadrex foam grille, along with newly developed acoustic technology and designs for elite performance. The 1-inch titanium dome tweeter is mated to a waveguide with an acoustic lens for optimum integration with the 5-inch pure-pulp cone midrange driver directly below it. Powerful bass is provided by a 12-inch cast-frame, white pure-pulp cone woofer in a bass-reflex enclosure, tuned via a single front-firing port tube. The high-frequency and mid-frequency L-pad attenuators on the front baffle preserve the classic features of this iconic legend.

  • FEATURES:

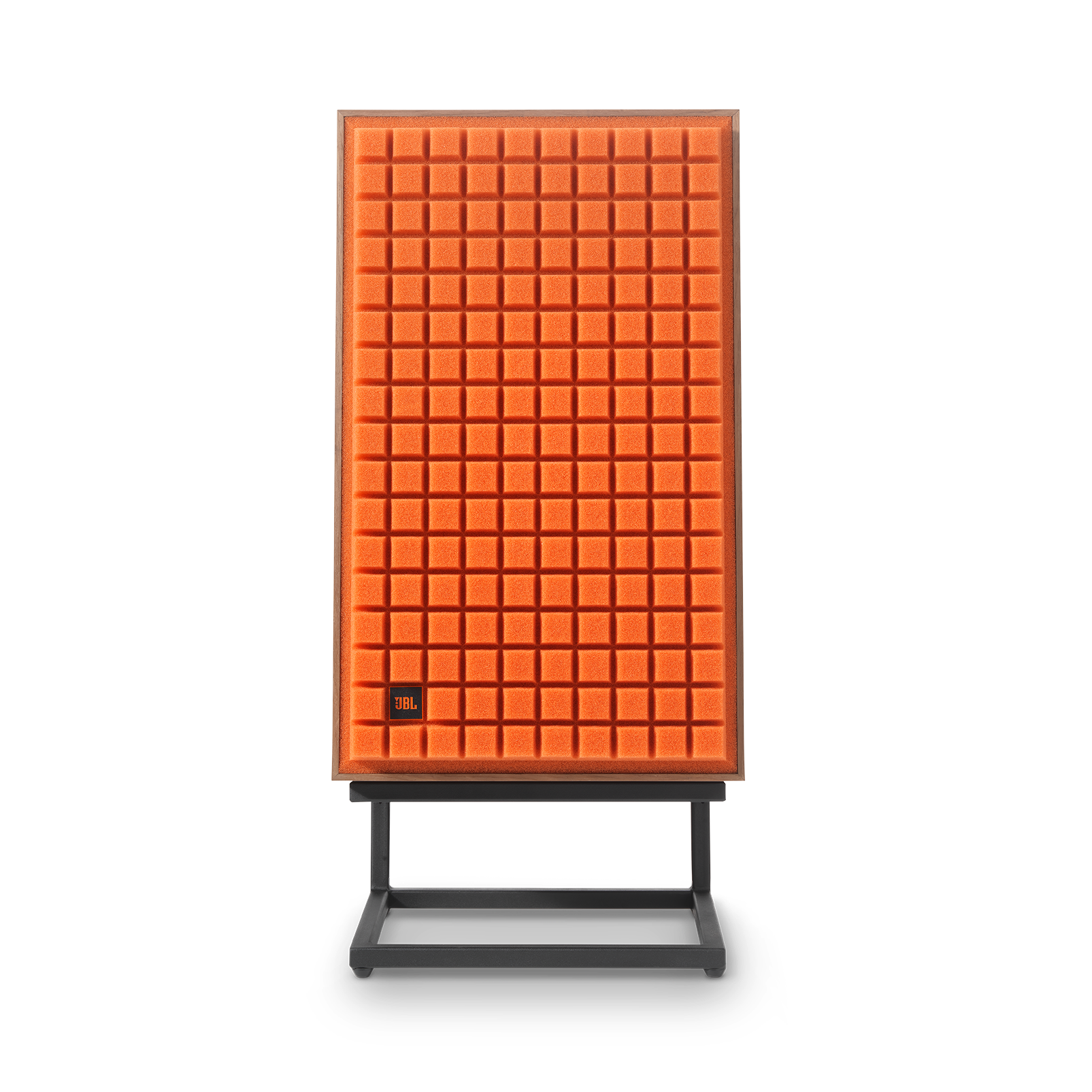

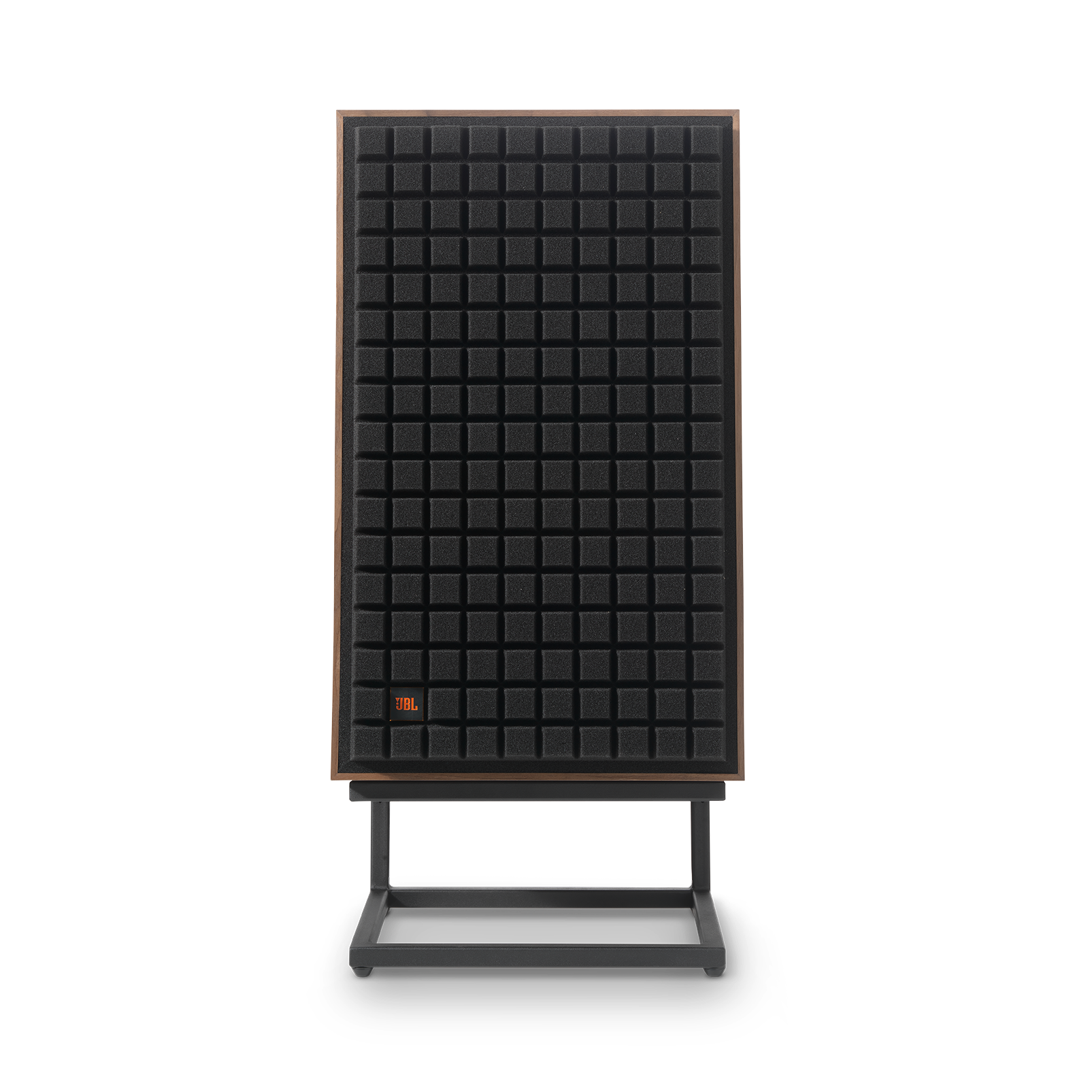

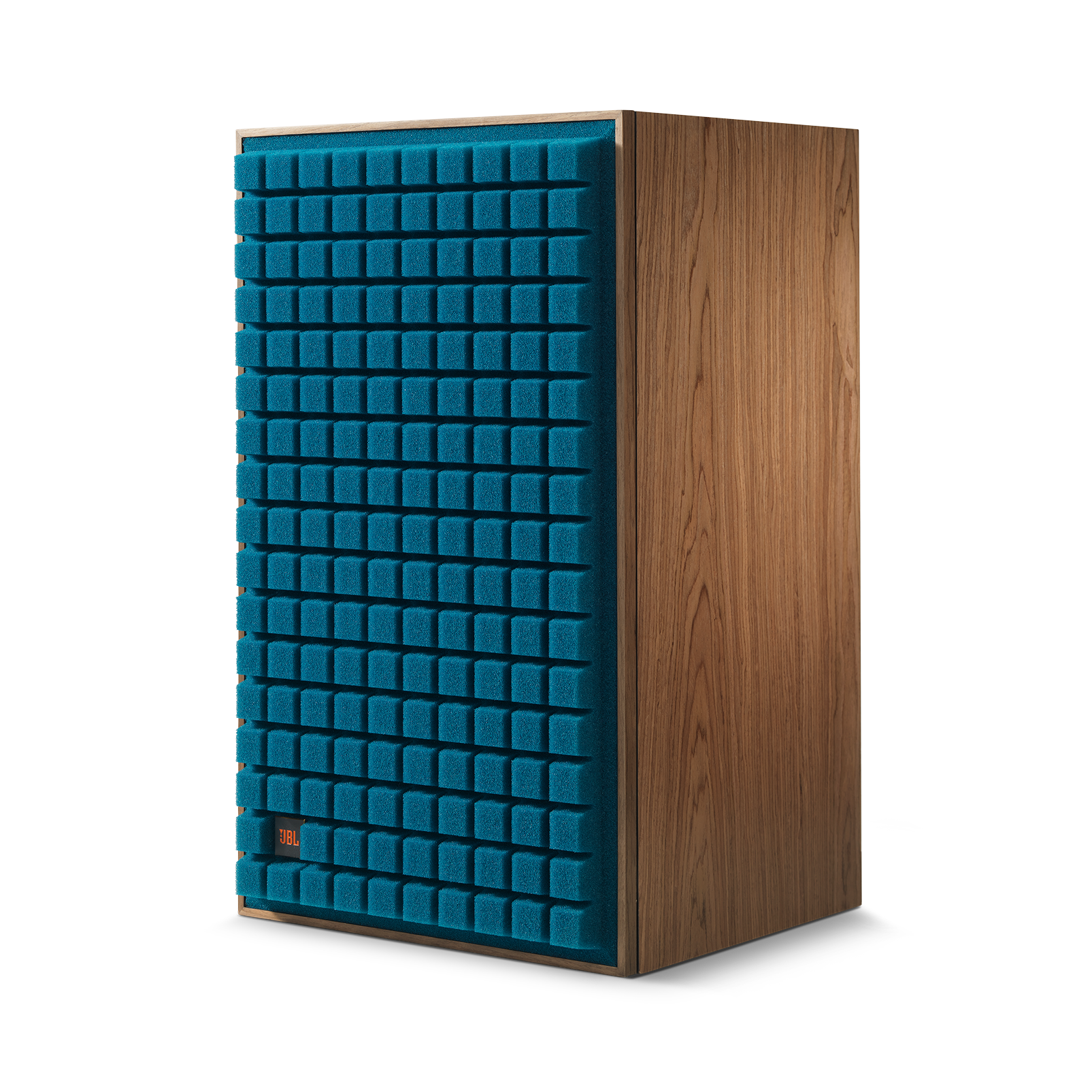

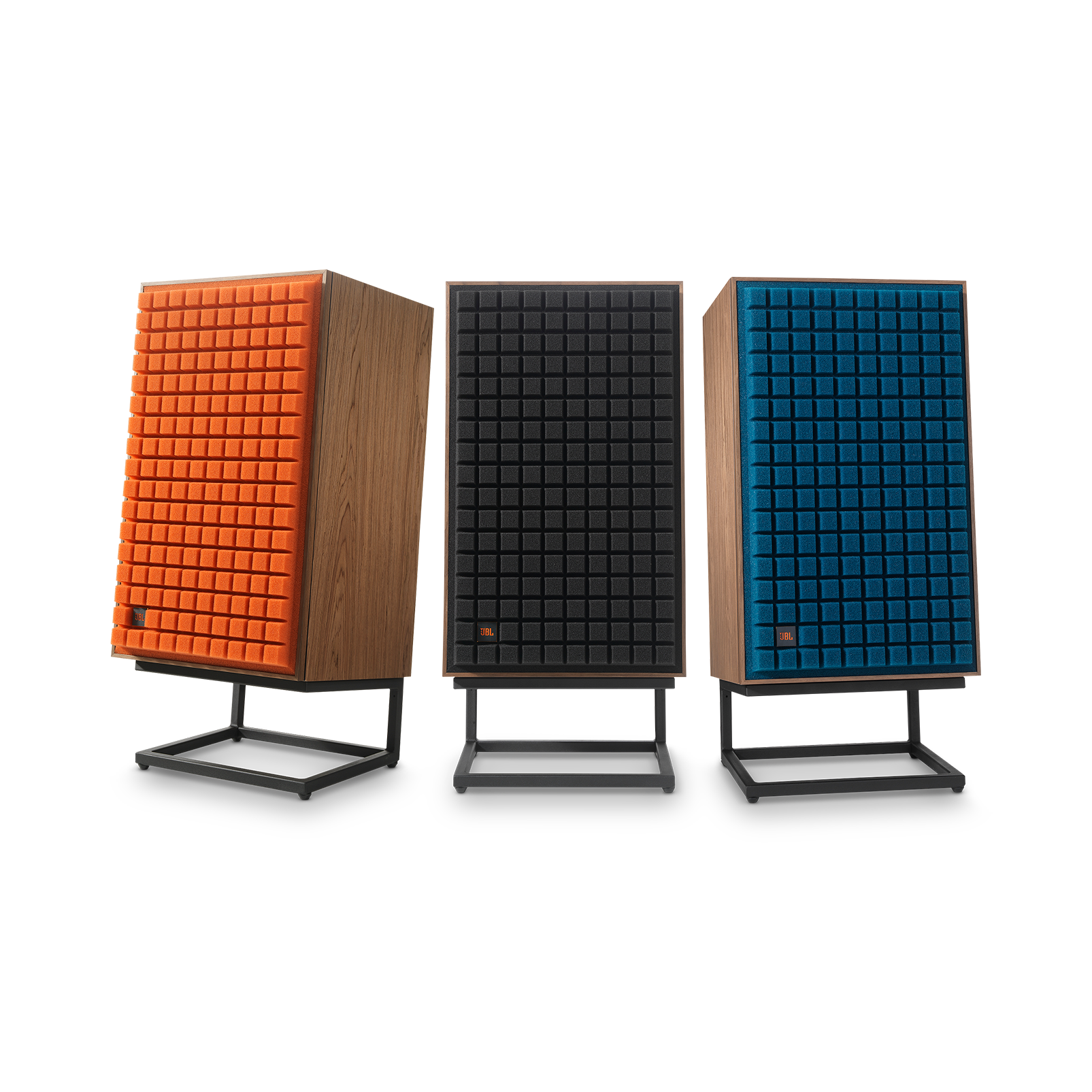

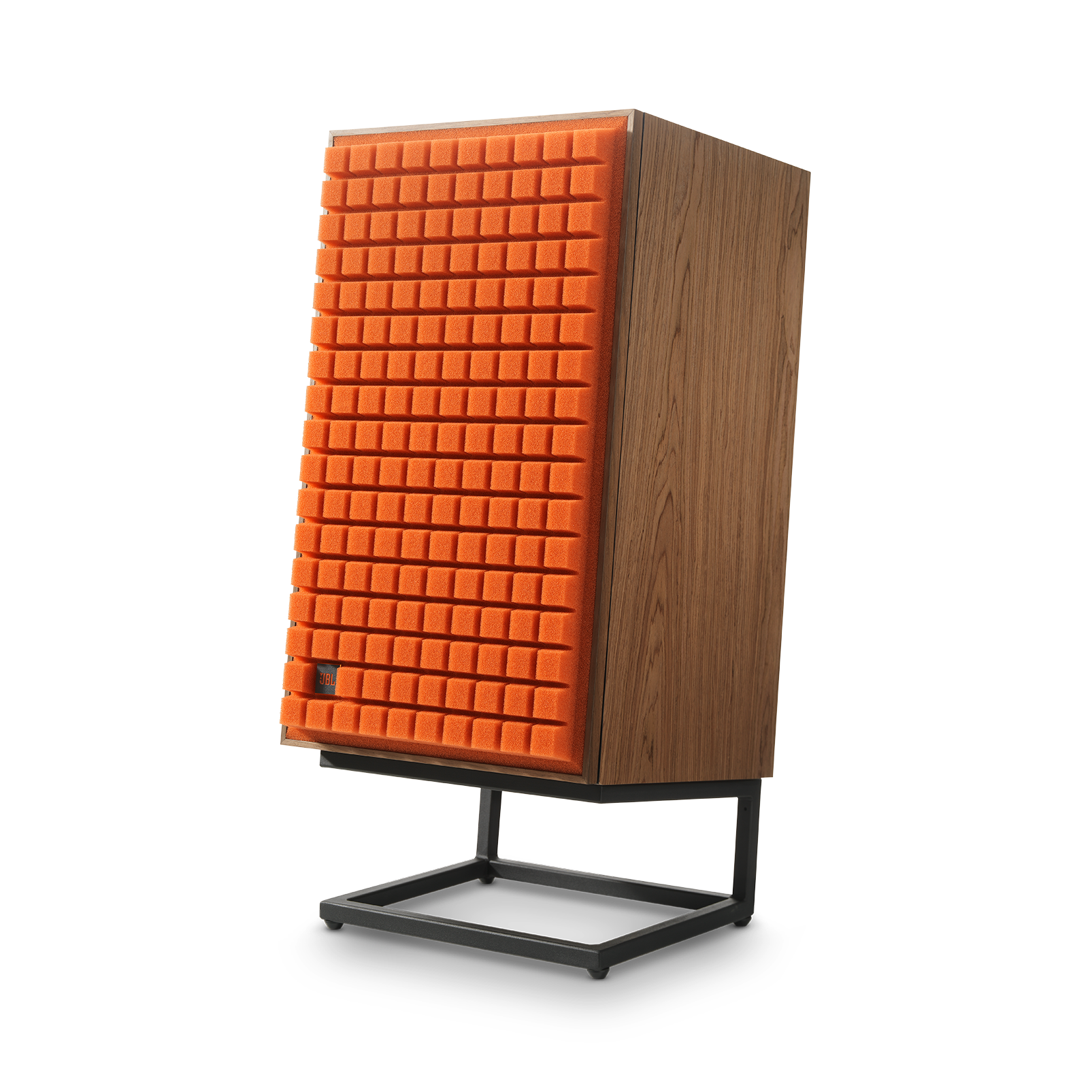

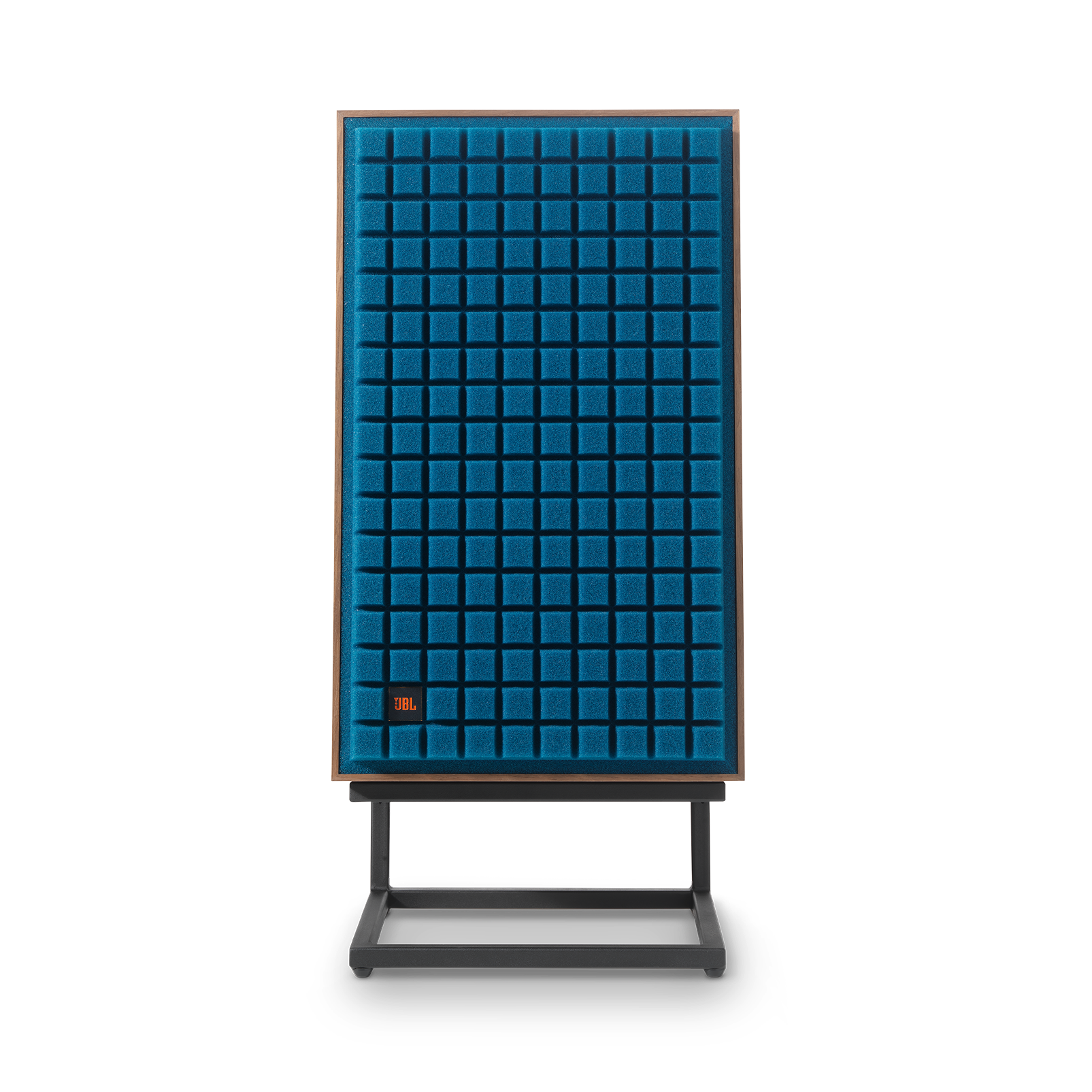

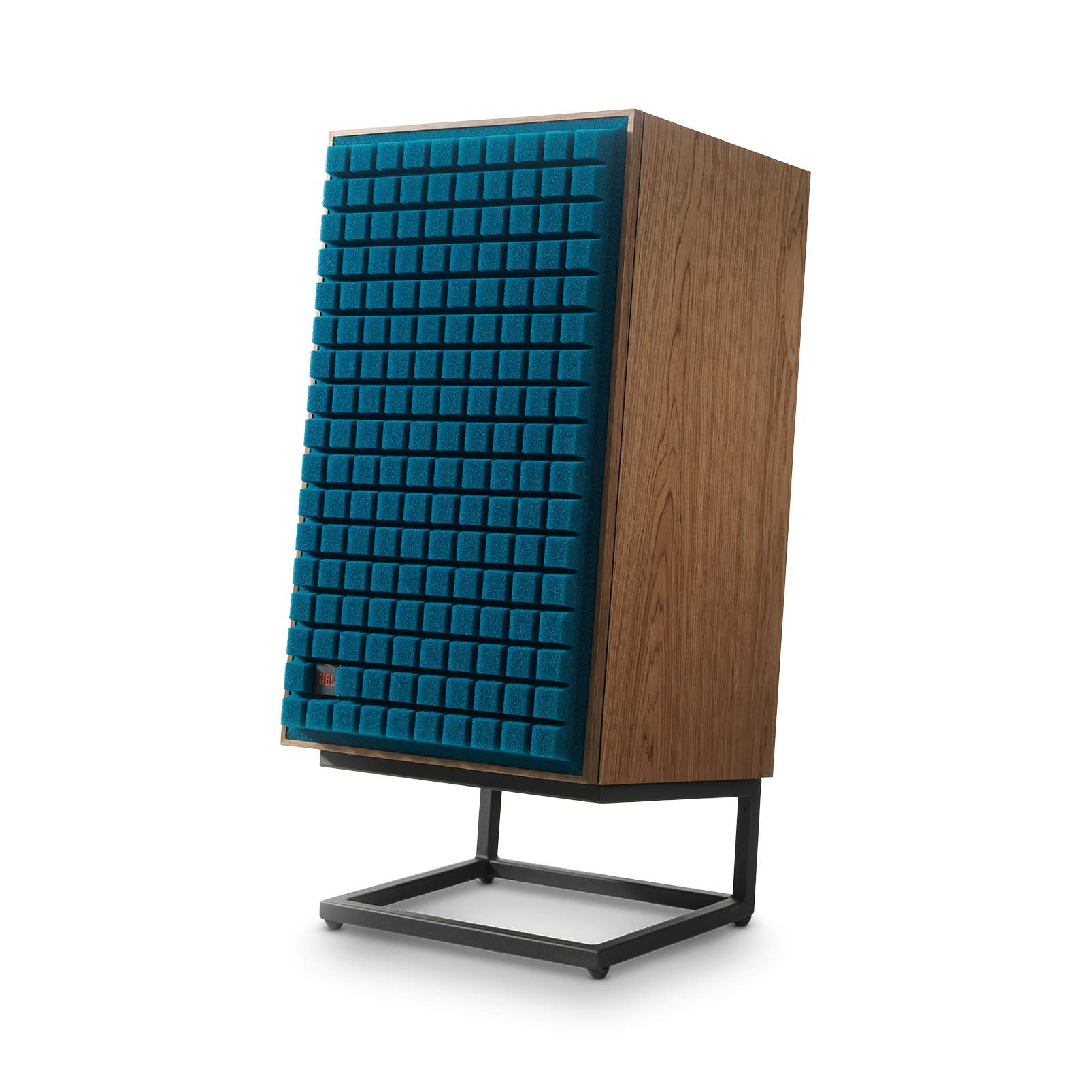

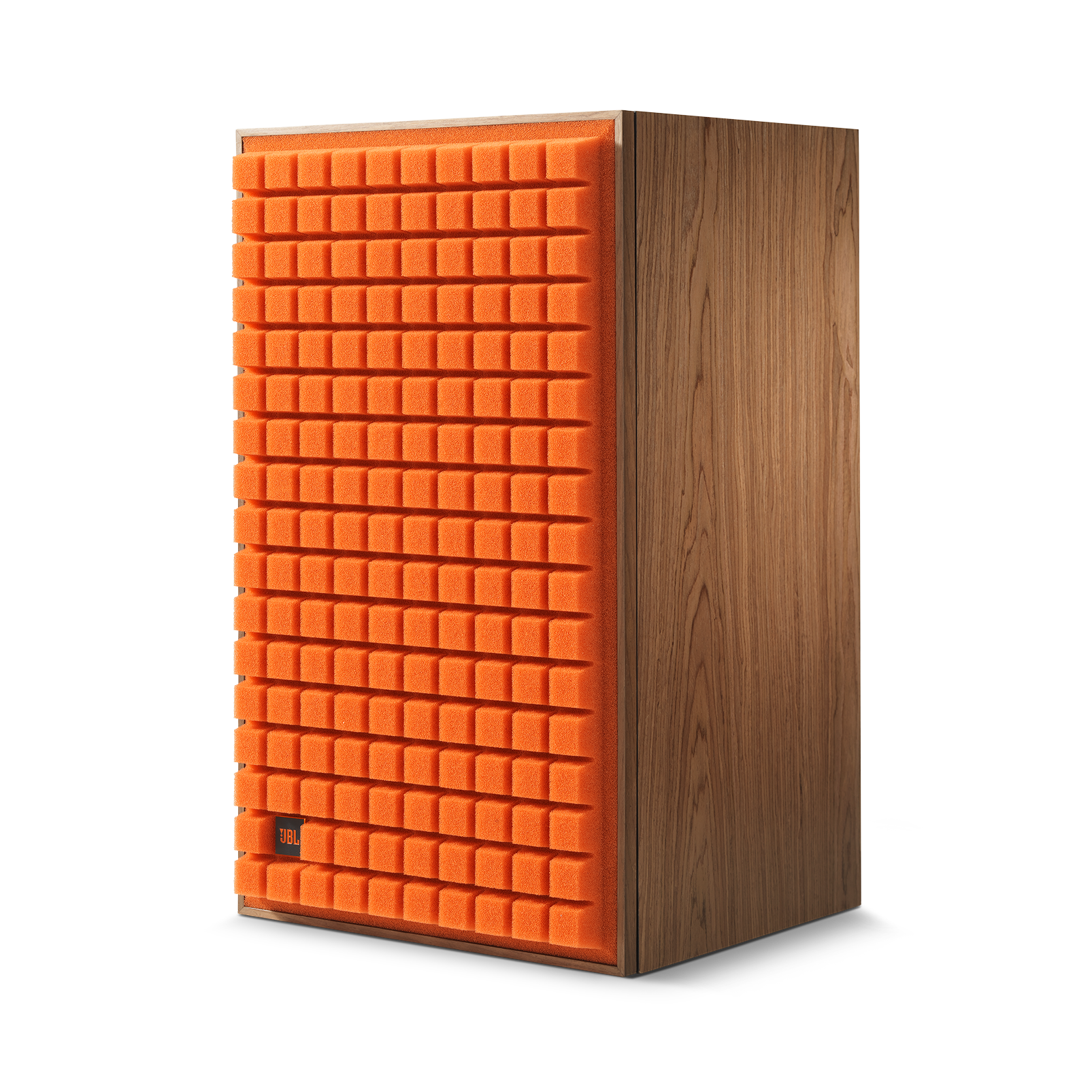

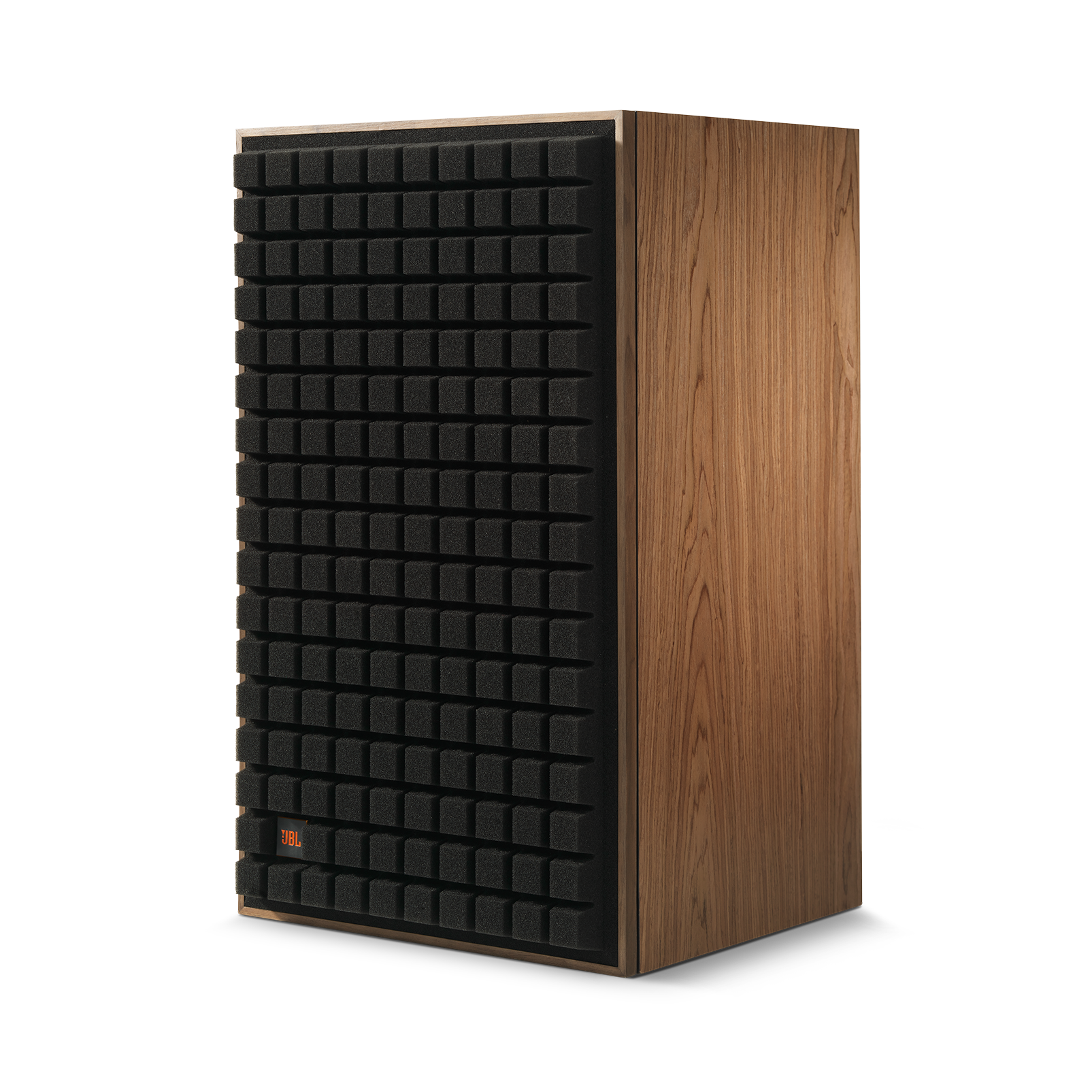

    • Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, orange or blue
    • Genuine satin walnut wood veneer enclosure with black painted front and rear panels
    • 12-inch white cone, pure pulp woofer with cast frame
    • 5-inch pure pulp cone midrange
    • 1-inch titanium dome tweeter
    • Bass-reflex design with front-firing port
    • High-frequency and mid-frequency L-pad attenuators
  • SPECIFICATIONS:
    Low-frequency transducer 12-inch (300mm) pure pulp cone woofer (JW300PW-8)
    mid-frequency transducer 5.25-inch (125mm) polymer-coated pure pulp cone (105H-1)
    High-frequency transducer 1-inch (25mm) titanium dome with soft surround (JT025TI1-4)
    Sensitivity 90dB (2.83V/1m)
    Power Handling 25 - 200 Watts RMS
    Crossover Frequencies 450Hz, 3.5kHz
    Impedance 4 Ohms
    Frequency Response 40Hz – 40kHz (-6dB)
    Dimensions 25.06 x 15.34 x 14.625 inches (636.52 x 389.64 x 371.48mm)
    Weight 58.5 lbs (26.7 kg)
