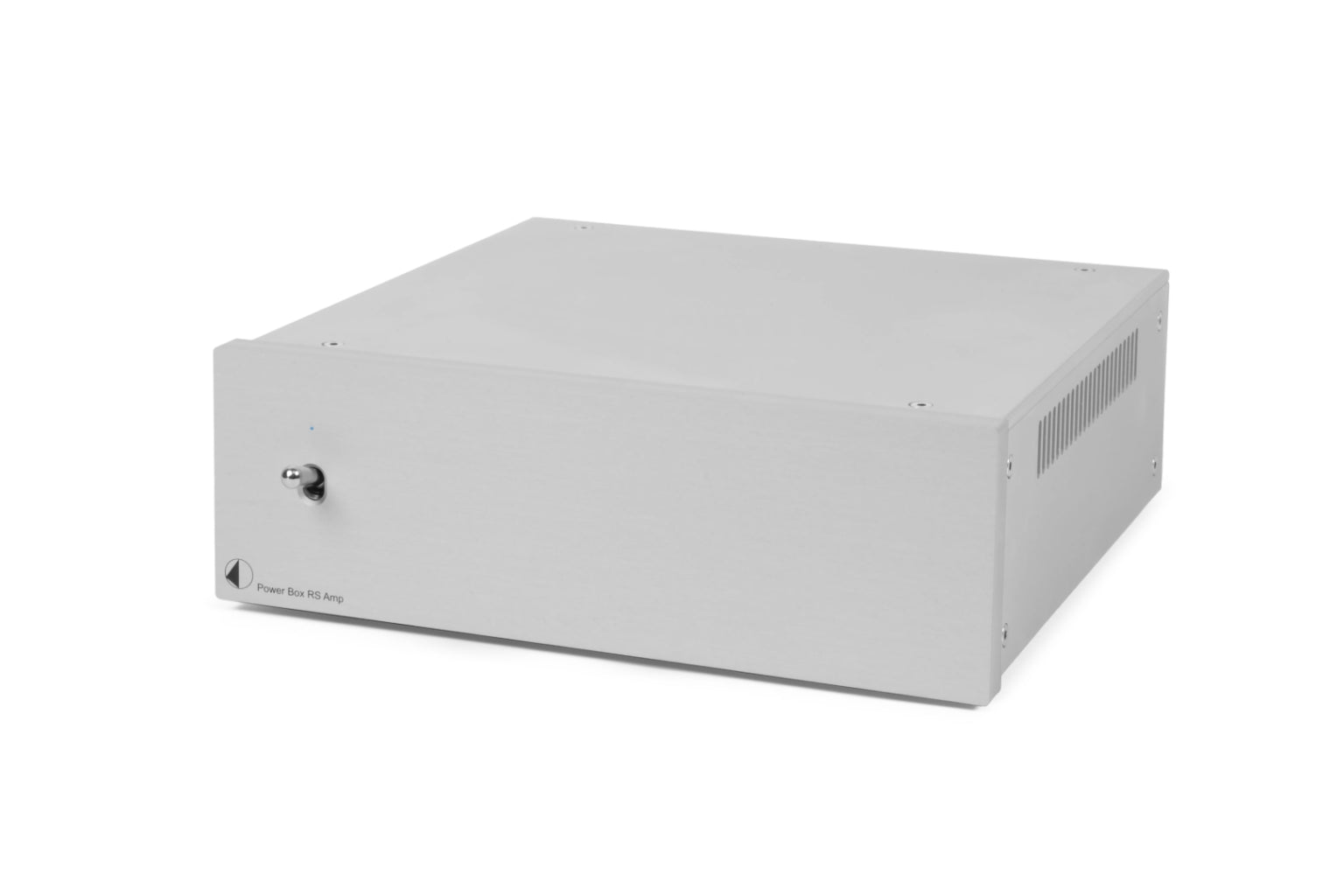

Pro-Ject Power Box RS Amp - SILVER - OPEN BOX



Pin It

Next → ← Previous

Linear Power supply that delivers more power and further improves audio quality!

Linear power supply consists of a big toroidal transformer with shielding between primary and secondary winding which acts as an isolation transformer and avoids penetration of interferences from mains into amplifier. This transformer has a big power reserve, compared to a standard power adaptor. It has very low output impedance and in combination with large filtration capability it can easily manage required power of one stereo amplifier or two mono amplifiers. Advice: To avoid magnetic interference do not stack amplifier and Power Box RS Amp!

As every amplifier, also digital ones, are sensitive for good quality of energy they are powered with. It is proven by extensive listening tests, that linear power supplies improve the sound of digital amplifiers significantly. This is what all well known high-end manufacturers already realized. Therefore Power Box RS Amp offers a big sound upgrade at an affordable price!

Features:
  • Suitable for Pro-Ject Audio Systems power amplifiers
  • Replaces original “switching” power supplies
  • Almost double amplifier power output combined with Amp Box RS, Amp Box DS & Stereo Box RS (2x 200/120 watts 4/8 ohms)
  • Significant sound improvement with better dynamic and bass response, improved soundstage
  • Compatible with Amp Box RS, Amp Box RS Mono, Stereo Box RS but also with Amp Box DS or Amp Box DS Mono
  • Big toroidal transformer with copper shielding
  • Very low output impedance
  • Filtration capability 40.000 uF capacitors low ESR types
  • Available in silver or black

Specifications:

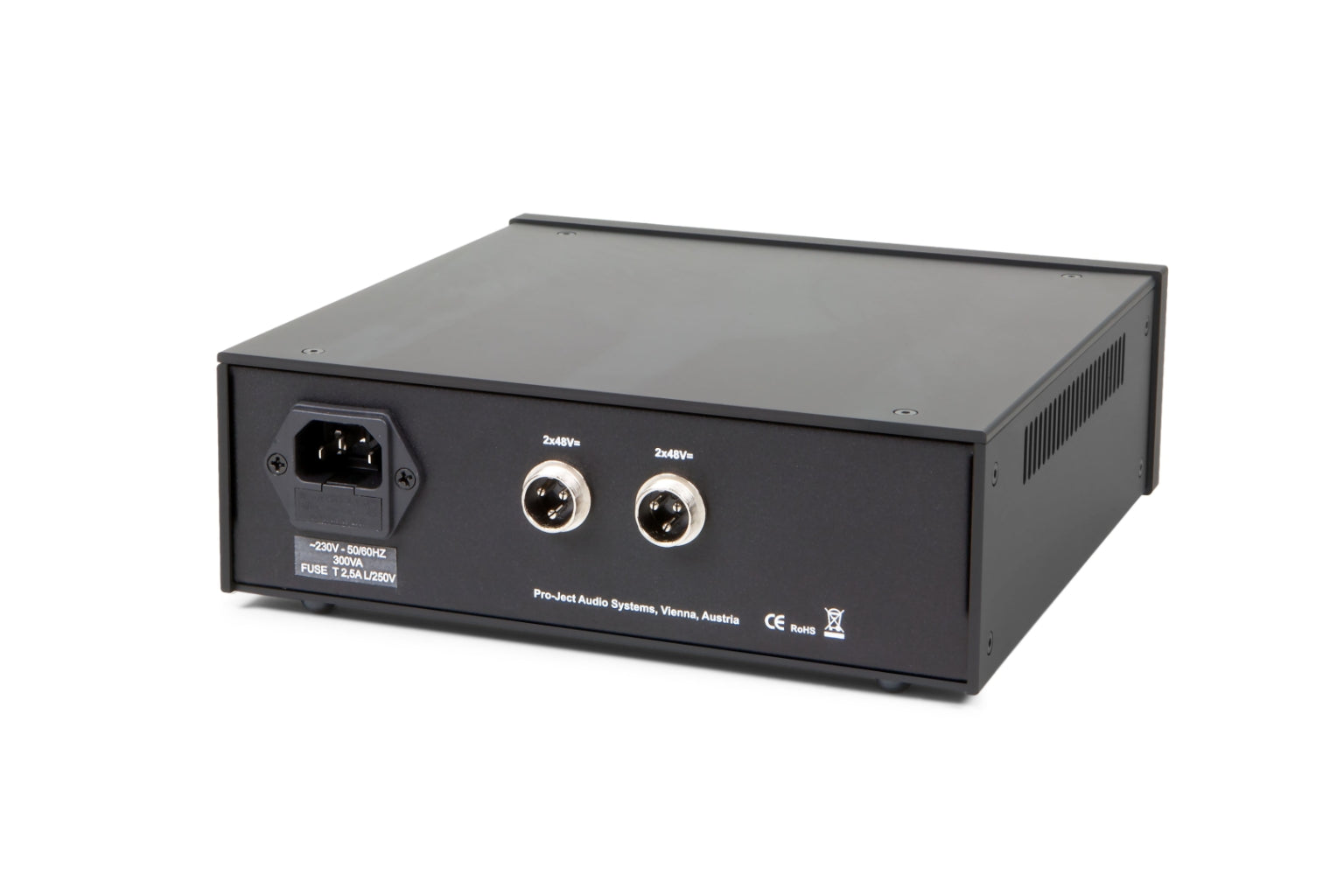

Input voltage AC 230V/50Hz IEC C15 connector
(120V/60Hz US version)
Output voltage Two outputs by 2 x 48V / 2.5A DC each
Filtration capacity 40.000 µF
Output voltage ripple 7mV
Power consumption 600 Watts max
Dimensions W x H x D 201 x 72 x 195 mm
Weight 4800 g
